Luxman PD 264 70's Wood
Price€272.92
+ Shipping
This listing has ended
See similar gear from other Reverb sellers
Listed:10 years ago
Views:165
Saves:5
Offers:0
Collinsville, IL, United States
Our users rate Reverb

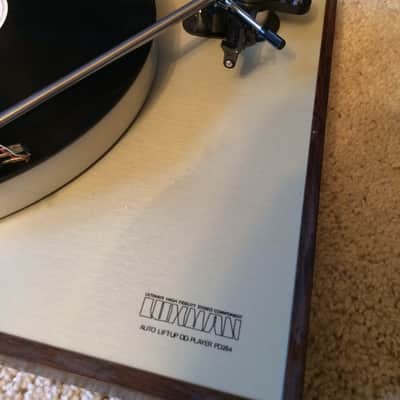

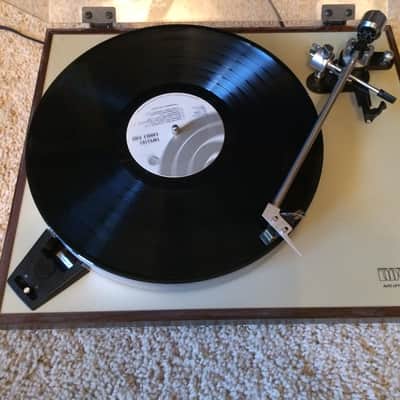

Great vintage Luxman DD turntable.
The top of the dust cover does have some marks but it is not cracked and operates smoothly.
Come with stylus and cartridge- see pics for info
Cartridge Ortofon FF 15 XE MK II
Does not come with 45 adapter
Vintage Auto Lift-UP function Luxman PD 264
Auto Lift-Up Function when playback finished.
Product Info
Luxman PD 264
Auto Lift-Up Direct-Drive Player System
Description
The PD264 is a disc player using a Brushless DC Servo Motor Direct-Drive system.
Provided is a turntable platter of high inertia with which the large mass of platter weight is distributed around the outer contour, thus realizing excellent Wow & Flutter characteristics and stable rotation.
For the tonearm, a straight type is adopted to eliminate resonance caused by lack of solidity which tends to be found on the tonearm exclusively designed for high-compliance type cartridges.
The root portion of the tonearm is of double-pipe structure to strengthen anti-resonance measures. The knife-edge structure is employed for the pivot receptacle, thus realizing quite stable operation. Further, the cartridge shell is integrated to the tonearm, and the resonance is suppressed down to the minimum.
The most salient feature of the PD264 is the Auto Lift-Up Function. When disc playback is finished, the tonearm is automatically lifted up, and rotation of turntable ceases at the same time. This function prevents unnecessary tracing of the cartridge at the end of disc-playback.

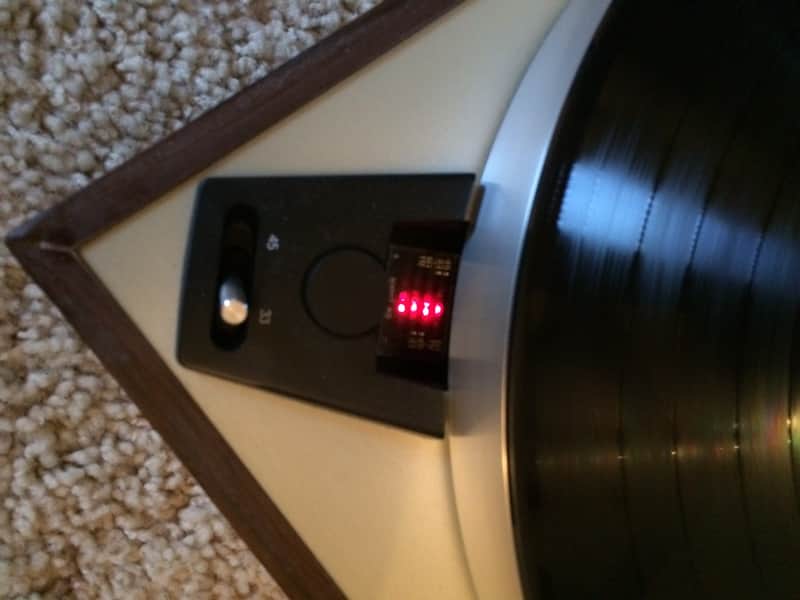

LED's are employed for stroboscope light, thus realizing a clear strobo pattern since the power supply is waveform rectified. Therefore, fine and accurate adjustment of rotation can be done much more easily.
Specifications
Type: auto-lift up record player
Drive method: direct drive
Motor: DC servo brushless
Platter: 1.8kg, 300mm aluminium die-cast
Speeds: 33 and 45rpm
Signal to noise ratio: 60dB
Wow and flutter: 0.035% wrms
Tonearm: static balance type
Effective length: 240mm
Overhang: 15mm
Cartridge weight range: 4 to 11g
The top of the dust cover does have some marks but it is not cracked and operates smoothly.
Come with stylus and cartridge- see pics for info
Cartridge Ortofon FF 15 XE MK II
Does not come with 45 adapter
Vintage Auto Lift-UP function Luxman PD 264
Auto Lift-Up Function when playback finished.
Product Info
Luxman PD 264
Auto Lift-Up Direct-Drive Player System
Description
The PD264 is a disc player using a Brushless DC Servo Motor Direct-Drive system.
Provided is a turntable platter of high inertia with which the large mass of platter weight is distributed around the outer contour, thus realizing excellent Wow & Flutter characteristics and stable rotation.
For the tonearm, a straight type is adopted to eliminate resonance caused by lack of solidity which tends to be found on the tonearm exclusively designed for high-compliance type cartridges.
The root portion of the tonearm is of double-pipe structure to strengthen anti-resonance measures. The knife-edge structure is employed for the pivot receptacle, thus realizing quite stable operation. Further, the cartridge shell is integrated to the tonearm, and the resonance is suppressed down to the minimum.
The most salient feature of the PD264 is the Auto Lift-Up Function. When disc playback is finished, the tonearm is automatically lifted up, and rotation of turntable ceases at the same time. This function prevents unnecessary tracing of the cartridge at the end of disc-playback.
LED's are employed for stroboscope light, thus realizing a clear strobo pattern since the power supply is waveform rectified. Therefore, fine and accurate adjustment of rotation can be done much more easily.
Specifications
Type: auto-lift up record player
Drive method: direct drive
Motor: DC servo brushless
Platter: 1.8kg, 300mm aluminium die-cast
Speeds: 33 and 45rpm
Signal to noise ratio: 60dB
Wow and flutter: 0.035% wrms
Tonearm: static balance type
Effective length: 240mm
Overhang: 15mm
Cartridge weight range: 4 to 11g
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Listed | 10 years ago |
|---|---|
| Condition | Very Good (Used) Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more |
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
Product safety information may be available here.
