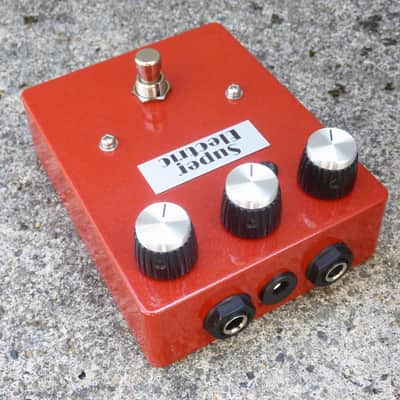

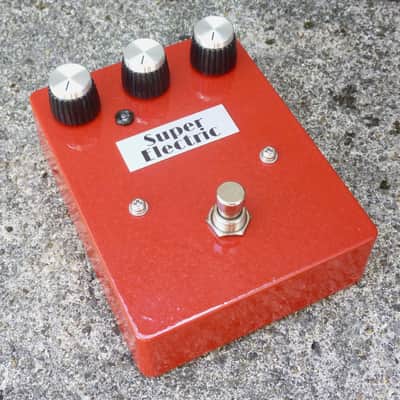

The Super Electric MkIII is a recreation
of the Sola Sound Tone Bender MkIII germanium fuzz from the early 70s.
The only change made to the stock circuit was the removal of the 220K
limiting resistor, which allows for more output level.

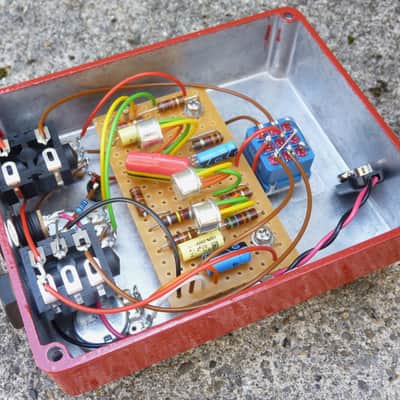

It uses three germanium transistors, and is solidly built on vintage style, wide pitch veroboard.
It's powered by a 9v battery or a negative-center 9v power supply. As it's a positive ground circuit, it would require its own isolated supply which can't be daisy-chained with negative ground pedals.

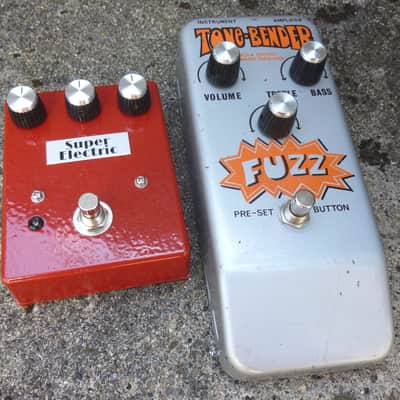

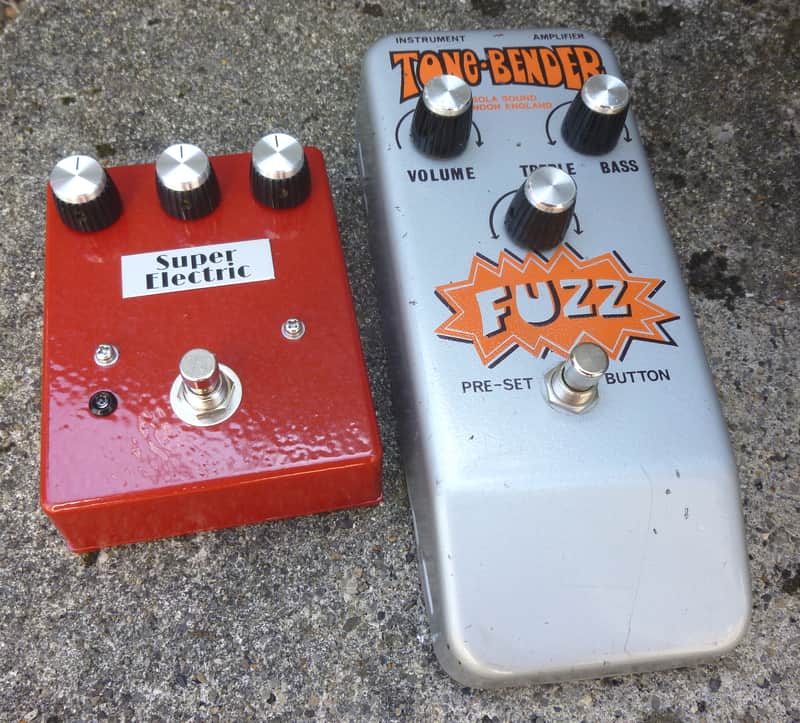

I used my original silver Sola Sound MkIII (see pic) as a reference, to ensure a sonically faithful result.
*Please note the original silver MkIII is not for sale and is shown here for reference only.
Features:
* Controls for Volume, Tone & Fuzz
* 3x germanium transistors (2x ASY27, CV7355)
* Ero/Vishay capacitors
* Powered by 9v battery or negative-center 9v power supply (not included)
* Orange LED
* True-bypass switching
* Red hammerite finish
* 120 x 95mm in size
* Hand-signed and numbered with an instruction sheet and 3 year warranty
Each pedal is shipped in a white cardboard box by registered post with a tracking number
Super Electric Effects pedals are hand-built by myself, Jimmy Behan, in Ireland.
It uses three germanium transistors, and is solidly built on vintage style, wide pitch veroboard.
It's powered by a 9v battery or a negative-center 9v power supply. As it's a positive ground circuit, it would require its own isolated supply which can't be daisy-chained with negative ground pedals.
I used my original silver Sola Sound MkIII (see pic) as a reference, to ensure a sonically faithful result.
*Please note the original silver MkIII is not for sale and is shown here for reference only.
Features:
* Controls for Volume, Tone & Fuzz
* 3x germanium transistors (2x ASY27, CV7355)
* Ero/Vishay capacitors
* Powered by 9v battery or negative-center 9v power supply (not included)
* Orange LED
* True-bypass switching
* Red hammerite finish
* 120 x 95mm in size
* Hand-signed and numbered with an instruction sheet and 3 year warranty
Each pedal is shipped in a white cardboard box by registered post with a tracking number
Super Electric Effects pedals are hand-built by myself, Jimmy Behan, in Ireland.
