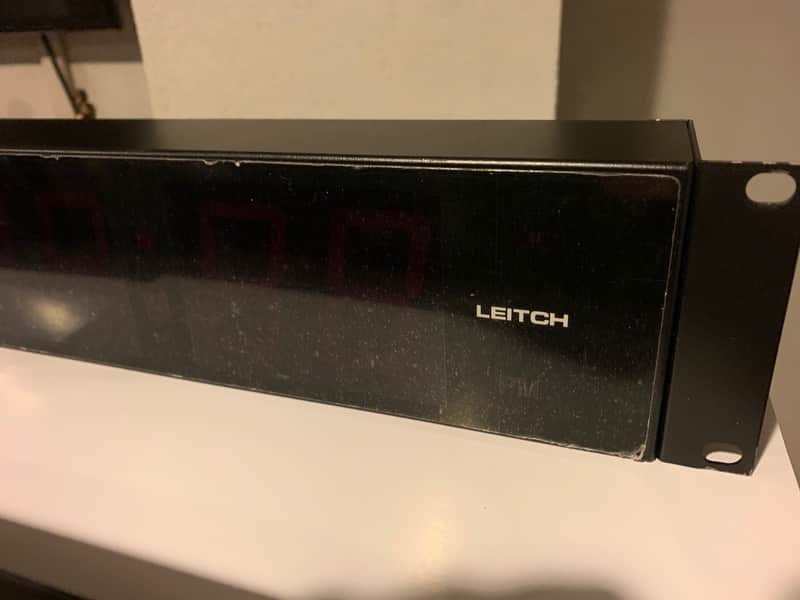

Leitch DTD-5225 Large Red LED Digital SMPTE/EBU Timecode Clock Date

(1) Leitch DTD-5225 Timecode Clock

Rack or wall mountable. (NOS) New Old Stock Plastic face covering is still on the unit. Large display (RED) Near Mint Condition... No issues. (2) Units available.

Local Pickup Preferred.

Questions?
Don't hesitate to ask.
Anthony.
862.777.2443

Features:

• Completely self-setting with SMPTE/EBU time code input
• Absolutely silent (no moving parts).
• Built-in quartz time base oscillator with battery back up
• May be operated as a time code reader for use with countdowns.
• Digital display is user-selectable between HH:MM:SS/MM:SS.FF, 12/24 hour, and date.
• May be configured as a time code generator to drive other clocks.
• LED brightness is adjustable.
• Runs on 50/60 Hz, 115 VAC power line. Can be rejumpered internally for 230V AC.
• Automatic primary/secondary drive selection.
• User-programmable time offsets.
• Wall mount or Rackmount

The DTD-5225 is an LED digital clock with 7-segment-digits display. It may operate as a time-code-reading clock or as a digital SMPTE/EBU serial time code reader, simply displaying the input time code.

In addition to SMPTE/EBU time code, the clock can operate on the internal quartz time base, or from the 50/60 Hz power line. This three-way reference capability allows easy integration into new or existing clock systems.

Full details may be obtained from the
()

The DTD-5225 is wall mountable. As an option, adaptors are included for conversion to rack-mount. The standard clock face has 2.25" tall digits, which may display HH:MM:SS or MM:SS.FF, depending on the DIP Switch settings. The brightness of the digit LEDs is adjustable.
