8 Way MIDI Thru/Splitter, 1 In x 8 Thru, Expandable, Synthesizer

This is an active 8-channel MIDI-THRU Splitter, which will convert 1x MIDI-OUT into 8x MIDI-THRU outputs that are amplified, isolated, and protected.

This 8 way MIDI Thru Splitter device outputs an exact copy of the input signal, so what goes in is what comes out of each of the MIDI-OUT ports, with NO DELAY. This device is a MIDI-STAR system that connects MIDI devices in parallel with NO LATENCY, avoiding issues associated with MIDI-Device 'daisy-chaining'.

How does it work

Advantages of the 8 way MIDI Thru Splitter:

• Surge protection on the power supply, input and output ports so all your devices are protected from damage

• Optical isolation of inputs and output ports, so if any connected equipment fails this failure does not compromise other connected devices

• No latency, No delay

• Low noise

• Low power

• Compact form factor

Specifications

• Power requirements – 6VAC-9VAC or 9VDC-12VDC, <100mA (you can use a typical BOSS guitar pedal power supply)

• Input/Output Sockets – 1x Input 5-pin DIN socket & 8x Outputs 5-pin DIN sockets

• LED indication - Shows that power is applied and blinks when MIDI data is received

• Protection against - reverse power connection, power supply overvoltage and surges, MIDI cable inversion/surges and noise

What's included

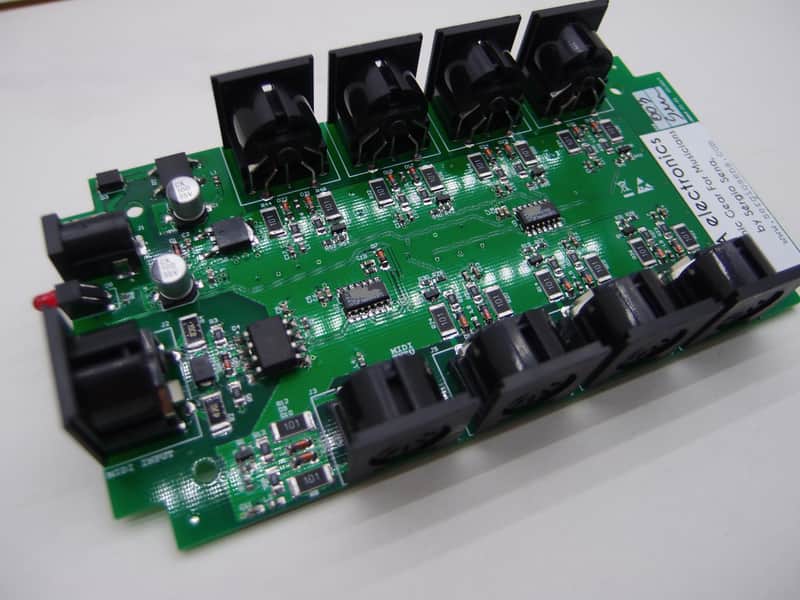

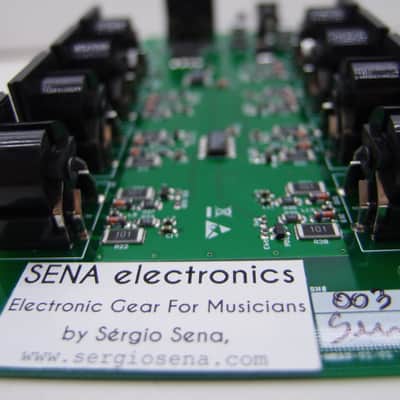

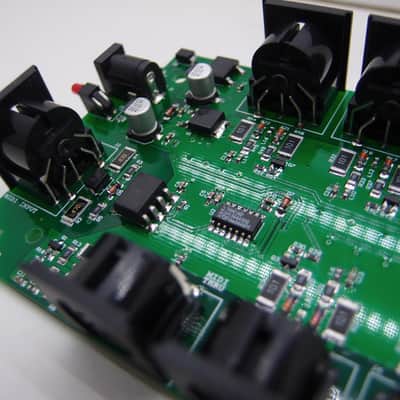

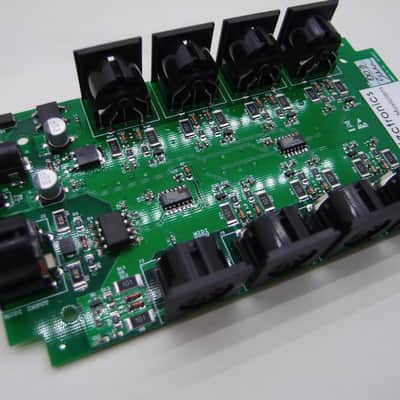

What you see is what you get. The electronic board only and no housing.
