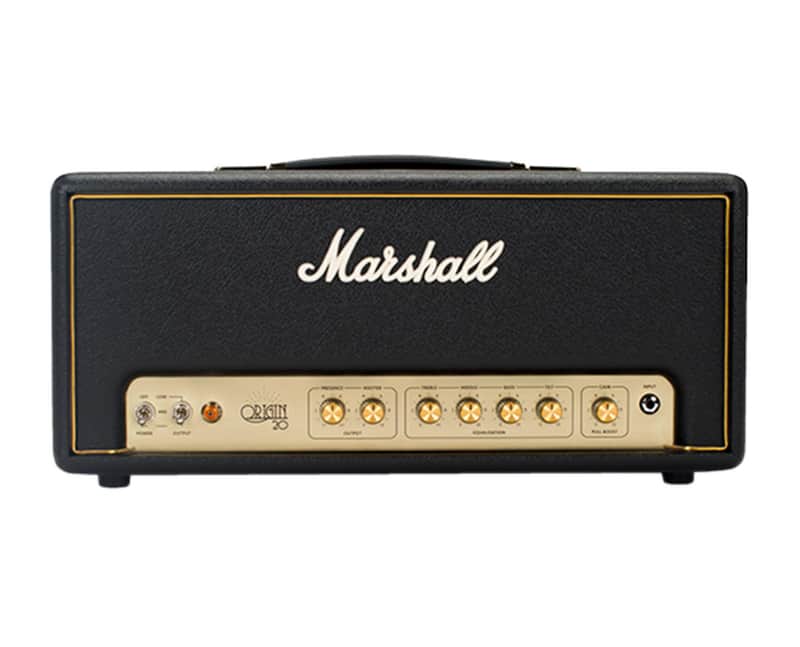

Express your personality with this 20w head. The Origin20H provides a classic all-valve, rich and harmonic tone. With sleek styling and modern features this amp is ideal for playing in different environments from bedroom to rehearsal studios and small venues. There is a 2-way footswitch available so you can control the gain boost feature and turn the FX loop on and off.

Add A Little Boost

The footswitchable gain boost feature allows you to develop your sound by adding an extra level of gain to deliver crunch to your tone.

Tilt Your Sound

With one channel, this amp still offers a variety of tones. By using the tilt control you can vary your sound from normal to high treble to access the one you prefer.

You Have The Power

To suit your playing environment, from the bedroom to the studio we have introduced new power reducing technology, Powerstem, allows you to have high, medium or low power modes.

Control Your Tone

Increasing the master volume can give you that classic overdrive sound and using the presence control you can increase the high frequency.

Features

General

• Model : Origin20H
• Range : Origin
• Technology : Valve
• Channels : 1

Electronics

• Output wattage : 20w

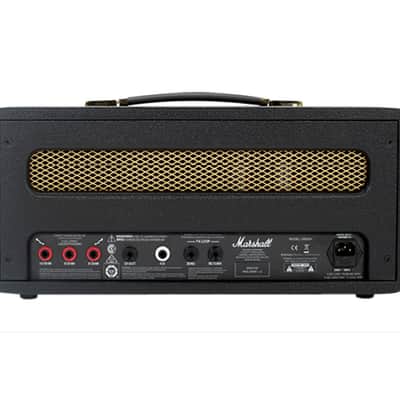

• Outputs : Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load), DI out (1/4" jack)
• Inputs : 1 x 1/4" jack instrument input, footswitch
• Controls : Gain, boost, tilt, bass, middle, treble, master, presence, power scaling
• Effects : None
• Effects loop : Yes, Send/Return

Valves

• Pre amp valves : 3 x ECC83
• Power amp valves : 2 x EL34

Accessories

• Footswitch : PEDL-90016

Dimensions

• Width (mm) : 520
• Height (mm) : 225
• Depth (mm) : 220
