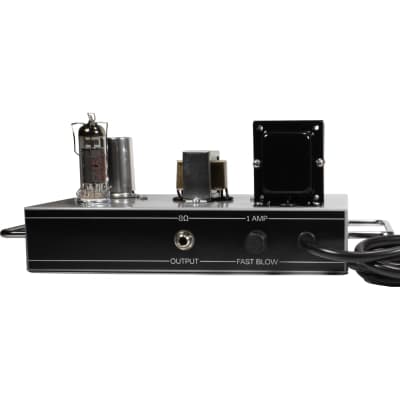

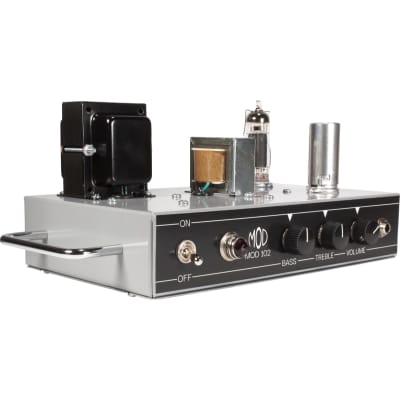

The MOD 102 is a great place to start for those interested in building their own tube amp. It is based on a classic American tube-circuit design combined with a British-style Class A output tube section. At low volume it produces a clean, chimey tone that moves into smooth overdrive at higher volumes. All parts are included along with a pre-drilled steel chassis, wire, and tubes (1 EL84 and 1 12AX7). Puts out at least 5 watts. The chassis layout is open for easy assembly using the clear, easy to follow instructions. You will need your own tools and solder.

MOD 102 Guitar Amp Kit Features:

• All Tube Design (solid-state diodes used only for full-wave rectification)
• 5W output power into 8 Ohm
• 1 channel
• Vintage channel controls: bass, treble and volume
• Vintage pilot lamp and screw-on jewel cover for power-on indication
• Output Impedance: 8 Ohm
• Tubes included: one 12AX7 (preamp), one EL84 (JJ Electronic brand)
• Hammond Mfg 269EX power transformer and P-T31 single-ended output transformer
• Cathode biased class A power tube operation (no bias adjustment needed)

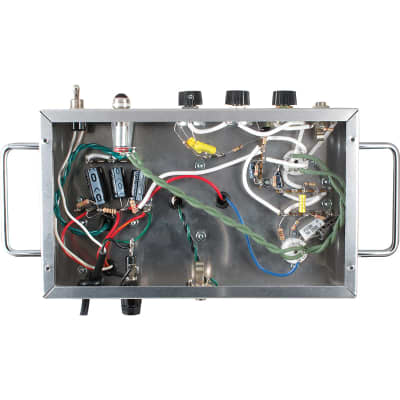

• Point to point hand wiring using terminal strips
• Carbon film resistors
• Metalized polyester coupling caps
• Pre-punched steel chassis
• Assembled Kit Weight: 4.25 lbs.
• Assembled Kit Dimensions: 10" Width x 6" Depth x 5-⅛" Height

MOD 102 Instructional Features:

• Detailed, easy-to-follow instructions include high resolution computer drawings for parts list and every step of assembly
• Tips for soldering and wiring
• On-line technical support

Product Measurements

Item Length: 12 in.
Item Width: 10.5 in.
Item Height: 8.5 in.
Output Impedance (Zout): 8 Ω
Length: 10 in.
Height: 5.125 in.
Width: 6 in.
Output Power (POut): 5 W
