AMT Electronics CP-100 Pangaea Impulse Response IR Speaker Cabinet Simulator

Thank you so much for checking out a BRAND NEW in box w/ warranty AMT Electronics CP-100 Pangaea Impulse Response IR Speaker Cabinet Emulator!

This is the latest revision of the Pangaea w/ Firmware PA-6-7 (w/ power amp modeling) installed, which you'll be able to update anytime via USB.

Description

Needless to say, electric guitar tone is defined by many components, such as a guitar itself, an amp, a cabinet with speakers and a mic. The new AMT Electronics CP-100 Pangaea can emulate the sound of any miked guitar cab, whose Impulse Responses (IRs) are free or commercially available on the Internet and can be easily loaded to the Pangaea via USB.

The Pangaea's THRU output allows to connect an amp to a real cabinet – the signal from the amp can be attenuated, processed by the Pangaea and connected to a mixer console, audio interface or PA system – save precious time on setting mics. A cabinet can even be excluded from the setup by loading a tube amp on a loadbox or by using an external preamp or amp's internal preamp.

IMPORTANT NOTES!
  • A tube guitar amp MUST be loaded on a cabinet w/ speakers or loadbox. There is no internal load in the CP-100 Pangaea
  • In case the CP-100 is connected to a microphone/balanced input of a mixer console, make sure that phantom power is off. Phantom power may result in a damage to the CP-100's output capacitors
Connecting the CP-100 Pangaea to a computer does not require any additional software: the device is recognized by a computer as the "PANGAEA_MINI" USB flash drive. Loaded IRs can be tweaked by adjusting their VOLUME level, EQ and early reflections amount (FX ROOM).

The CP-100 Pangaea also allows to connect your portable media device (MP3 player) via AUX IN and play along with your favorite songs or backing tracks using headphones or a PA system!

Features

  • Impulse Response (IR) based guitar speaker cabinet modeling

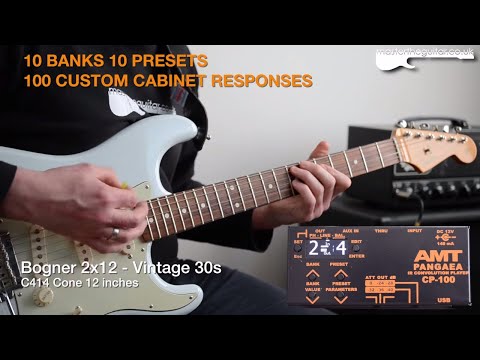

  • Load up to 100 IRs (10 banks with 10 presets each)
  • GT (Noise Gate)
  • CM (Compressor)
  • PR (Preamplifier) is a flat-EQ preamp model (clean channel), that allows to connect a regular overdrive/distortion pedal directly to the CP-100 (rather than using an external preamp)
  • PA (Power Amplifier) module emulates the sound of one of 9 (nine) tube guitar power amplifiers:
    • PP 6L6: Typical Push-Pull Power Amplifier w/ 6L6 Tubes
    • PP EL34: Typical Push-Pull Power Amplifier w/ EL34 Tubes
    • SE 6L6: Typical Single-Ended Power Amplifier w/ 6L6 Tubes
    • SE EL34: Typical Single-Ended Power Amplifier w/ EL34 Tubes
    • AMT TC-3: Based on AMT Electronics TubeCake TC-3
    • California: Modeled after Mesa/Boogie® Dual Rectifier®
    • British M: Modeled after Marshall® JCM800®
    • British L: Modeled after Laney® LC50-112 II
    • Default (Linear Frequency Response)
  • 5-Band Parametric EQ
  • Low-pass & High-pass filters
  • Early Reflections modeling (FX ROOM)
  • Chromatic Tuner
  • 3 (three) OUTPUT modes: "PH" – for connecting headphones, "LINE" – for connecting to an audio interface, mixing console or PA system, "BAL" – for connecting to the Balanced input of any appropriate device
  • Ultra-compact metal housing
  • High-contrast wide view angle white-colored OLED display

Tech Specs

  • Inputs/Outputs: Preamp/Amp INPUT, AUX IN (for a portable media player), OUTPUT (to an audio interface, mixing desk, PA system or headphones), THRU (for connecting a tube amplifier to a real cabinet or a loadbox through the Pangaea), USB (for connecting to a computer)
  • Impulse Response file type: WAV 24 bit 48 kHz
  • Latency: 1.2 ms / 0.0012 s
  • Power requirements: 12 Volts DC @ 100 mA / 0.1 A, tip/center negative (power supply included)
  • Dimensions (W x D x H): 96 x 43 x 30 mm / 3.8 x 1.7 x 1.2"
  • Weight: 180 g / 6.35 oz

Package Contents

(1) AMT Electronics CP-100 Pangaea
(1) Power Supply w/ US, UK or Europe Power Plug (buyer's choice) [AC ~100-240V; 50/60Hz]
(1) USB cable (20 cm / 7.9")
(1) User's Guide (English)

SHIPPING

We use GLS parcel delivery. Shipping w/ tracking to a Reverb confirmed and verified address anywhere in the world. We carefully monitor our stock to ensure item availability, and we process orders the same or next business day.

Usually, delivery takes about ~7-21 days. Every shipment is packed with care. Your shipment will be fully insured and secure, so your item will be arrived you safely as well as quickly.

International Customers – Please Note: shipping effects pedals is free worldwide. However, import duties, taxes, and customs charges are not included in the item price. These charges are the buyer's responsibility. Please, check with your country's customs office to determine what these additional costs will be prior to bidding or buying.

PAYMENT

We accept Reverb Payments

WARRANTY

Only on Reverb.com, we give you an EXCLUSIVE LIFETIME warranty for all AMT Electronics products !!! If you have any problems, we will replace your item immediately.

International Customers, please note, that our items carry a Russian Federation warranty, so all international warranty issues must be handled by us. All items must be returned to us for all warranty repair or replacement issues. The buyer will be responsible for all shipping/handling expenses.

Feel free to email us with any questions!
Thank you very much!
