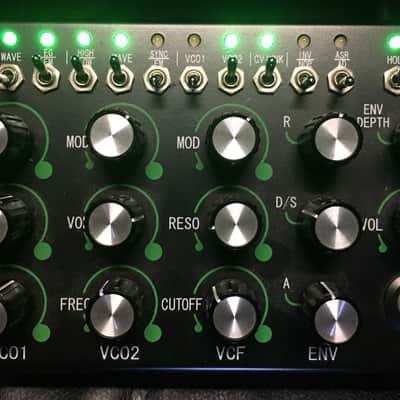

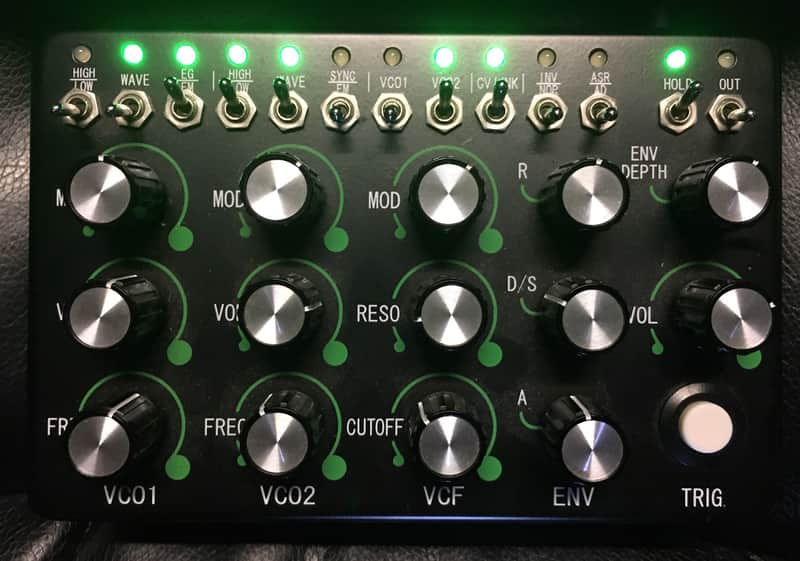

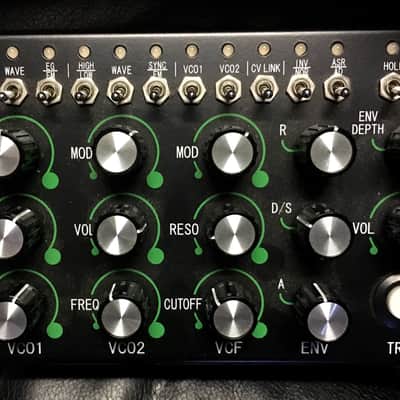

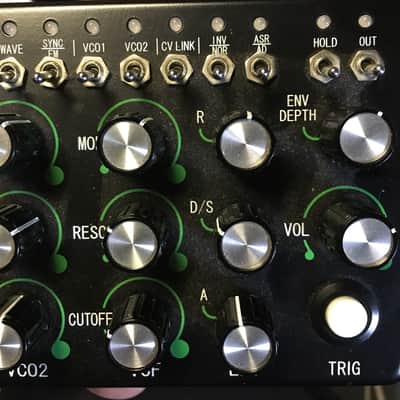

Reon (Roland) Driftbox R LE Analog Mono Synth

100% analog mono synth! Made by Roland. Special Edition model black/green to match the Aira Series.  Limited run, no longer in production. Power supply included.

Manufacturer Description:

VCO 1 has controls for frequency, level and modulation depth. HIGH/LOW switches
between octaves. Frequency range: 0.2Hz-10kHz

The WAVE switch selects in a rotating fashion one of the wave forms: sawtooth
-> triangle -> 50% pulse -> 75% pulse -> 25% pulse -> white
noise -> pink noise

EG/FM selects either the envleope generator or the second VCO as modulation
source.

VCO 2 is pretty much the same as VCO1 but has only two selectable waveforms
(sawtooth and 50% square) and different modulation options (sync or FM by
VCO1). The CV LINK switch routes the external CV for VCO1 to input of VCO2 as
well.

The filter is a resonant, 24db/octave steep low pass filter. The resonance goes
into oscillation. The modulation source for the cutoff can be either the
envelope or an external CV; the modulation intensity is adjustable. Two more
switches determine if and which VCO is used for filter cutoff modulation.

The envelope is working either as an AD or an ASR, the middle control D/S
determines either the decay time or the sustain level. When envelopes overlap,
an interesting percussion effect occurs which prevails in the mix.

The INV/NOR switch can invert the envelope. The modulation depth to the VCA is
set with the "EG depth" potentiometer.

HOLD opens the VCA and the VOL control sets the output level. The output switch
is used for muting the synth.

The white button allows you to fire the envelope manually and it generates a
gate signal at the gate output socket.
