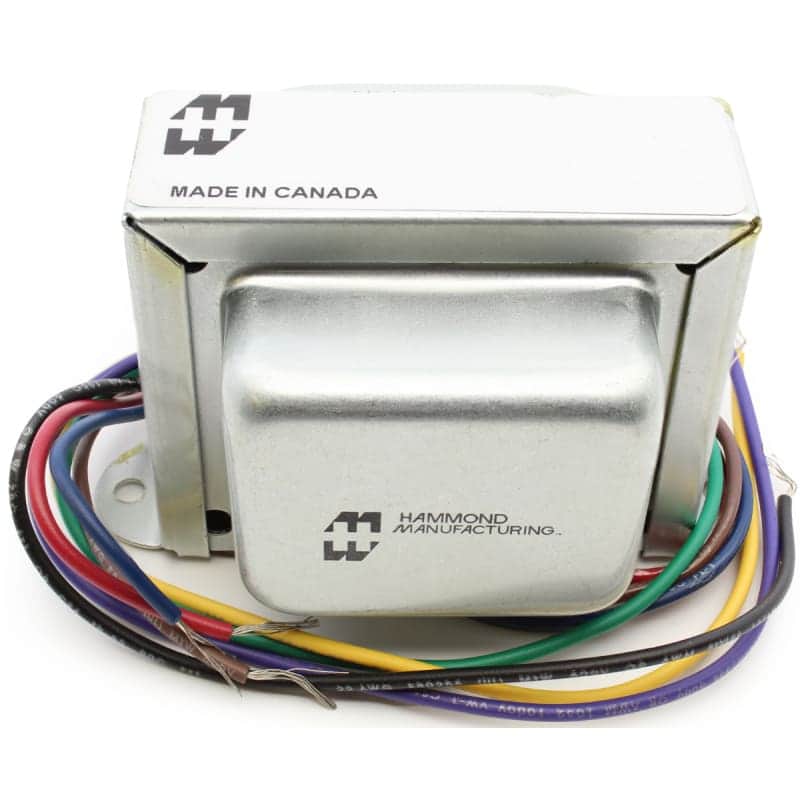

Transformer - Hammond, Output, replacement for Fender, Watts / Primary / Secondary: 5W | 5k/8kOhm | 3.2Ohm

• Replacements for Fender Amps
• Designed for drop in replacement of original units.
• Physically, parts were designed to look similar to original factory units (where possible).
• Material used & design specs. were kept as close as possible to the original part to preserve the stock "tone".
• Output transformers marked UPGRADE (below) allow for more versatility by added secondary connections that did not exist on the original units.

Replacements: Part No. Replacement For P-T1750C

Bronco (AA764, AB764, Blackface, Silverface)
Champ (Tweed, 5C1, 5E1, 5F1, AA764, Blackface, Silverface, Vibro Blackface)
Harvard (6G10)
Princeton (Tweed, 5B2, 5C2, 5D2, 5E2, 5F2, 5F2A)

Specifications: Part No. Pri Ohms Sec Ohms Amplifier Type Watts Bobbin/Paper Winding Equivalent To P-T1750C 5,000 Ω/8,000 Ω 3.2 Ω Single Ended 5 W Bobbin #125A35A and #022905

Warning: Not all amplifier models of the same name use the same transformer model. Please make sure the amplifier transformer which you are replacing has a Fender number matching the equivalent Fender transformer number listed here.

Product Measurements

Item Length: 2.813 in.
Item Width: 1.56 in.
Item Height: 1.683 in.
Mounting Hole Center to Center A: 2.375 in.
Mounting Hole Diameter: 0.187 in.
Primary: 5 kΩ / 8 kΩ
Secondary: 3.2 Ω
Power: 5 W
Amplifier Type: Single Ended
Core Type: Plastic
