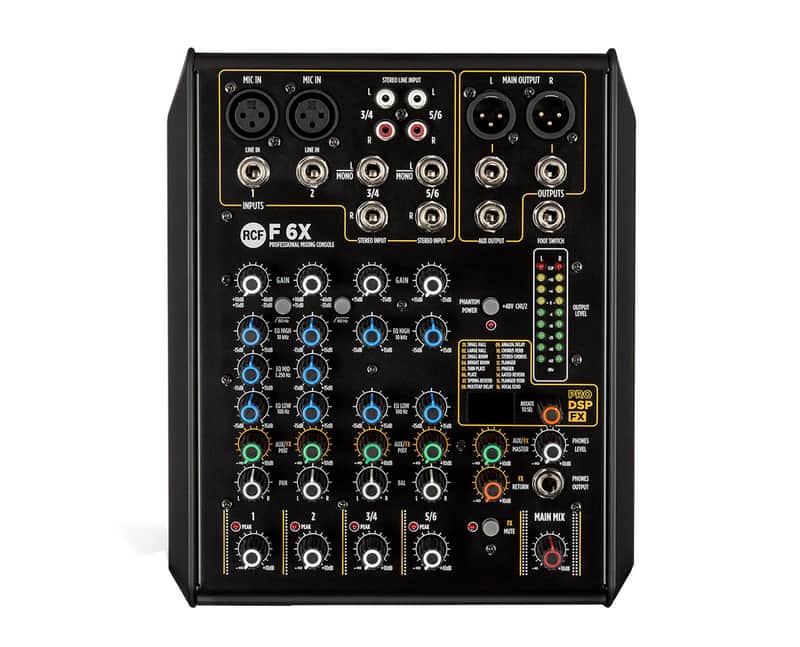

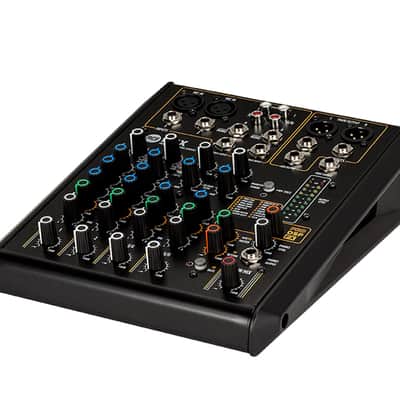

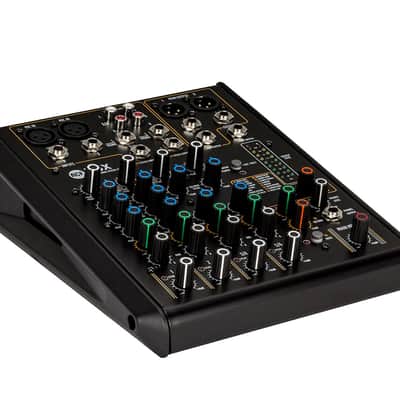

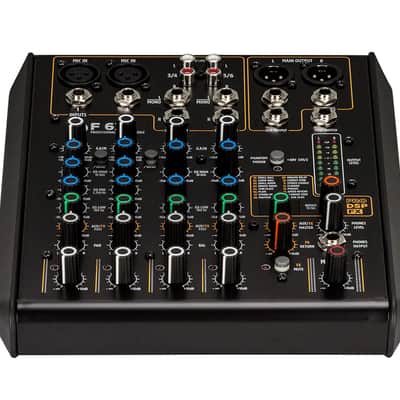

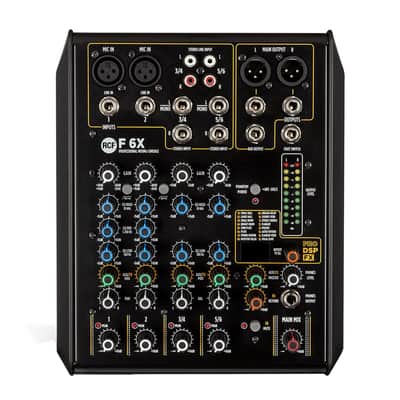

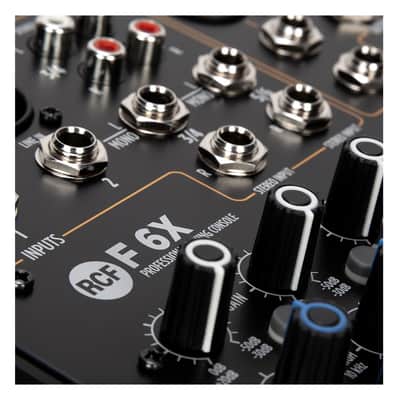

RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX : 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, and F-16XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

State Of The Art Eq

State-of-the-art 3 band EQ on mono channels, 2 bands EQ on stereo channels for precise shaping of sound.

High Quality Preamplifiers

High quality preamplifiers with phantom power, inspired by the E-Series Mixers, offer high level sound and dynamics. Line level signals are less noisy when connected using the separate line input jack socket.

Features

• 2 Mic/Line Inputs
• 2 Stereo Line Inputs
• One Aux/Fx (Post)
• Balanced Main Output Audio Path From Input To Output
• Pro Dsp Fx Onboard With 16 Presets
• Sturdy Metal Chassis
• External Universal Power Supply
• Designed And Engineered In Italy

Auxiliary Sends

• Fx Post : 1
• Electrical Specifications
• Power Consumption (W) : 12 W
• Power Supply : External
• Voltage Requirements : 100 V - 240 V
• Frequency Response : 20 Hz ÷ 20 Khz
• Thd+N, 20db Gain, 0dbu Out (% A-Weighted) : <0,02

Eq

• Description : High:+/-15 Db @ 10 Khz Shelving, Mid:+/-15 Db @ 1,250 Khz, Bell Low:+/-15 Db @ 100 Hz Shelving.
• Input Channels Eq : 2 Shelving 1

Inputs

• Gain Range : 0 Db ÷ -50 Db
• Gain Selection : 20 Db ÷ -30 Db
• Mic Inputs Impedance (Kohm) : 14 Kohm
• Line : 2
• Line Input Impedance (Kohm) : 21 Kohm
• Low Cut : 80 Hz
• Mic : 2
• Phantom Power +48v : Yes
• Stereo Line : 2
• Stereo Line Gain Selection : 20 Db ÷ -30 Db
• Stereo Line Input Impedance : 15 Kohm

Internal Effects

• Send Effects : 1

Other Features

• Footswitch : Yes

Outputs

• Aux Output : 1
• Fx Send : 1
• Main Mix : 1
• Phones : 1

Outputs Specifications

• Aux Out Level (Dbu) : 28 Dbu
• Main Out Level (Dbu) : 28 Dbu
• Phones Out Impedance (Ohm) : 150 Ohm

Physical Specifications

• Cabinet/Case Material : Metal
• Color : Black
• Shipping Informations
• Package Depth : 260 Mm / 10.24 Inches
• Package Height : 122 Mm / 4.8 Inches
• Package Width : 378 Mm / 14.88 Inches

Size

• Depth : 255 Mm / 10.04 Inches
• Height : 79 Mm / 3.11 Inches
• Width : 210 Mm / 8.27 Inches

Standard Compliance

• Ce Marking : Yes
