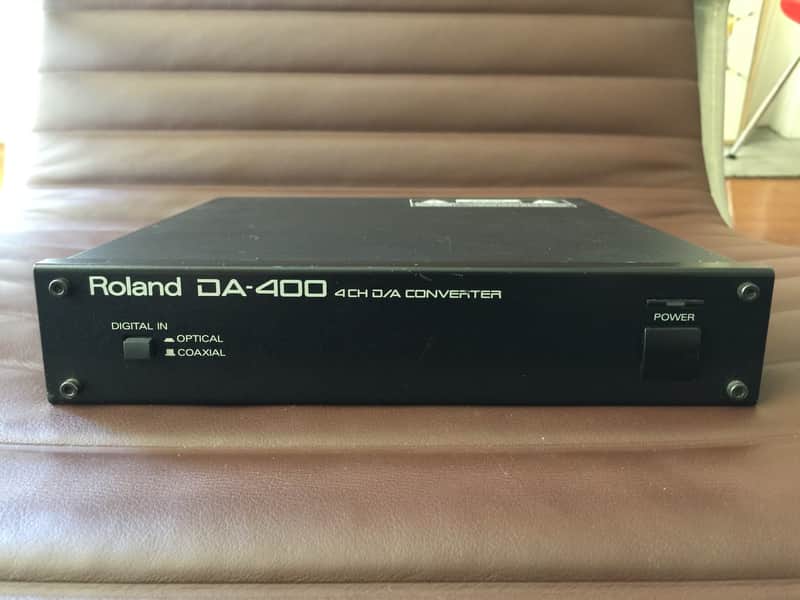

Roland DA-400 DA converter. Expansion for S760 Sampler.

Roland DA-400

Rare Roland DA converter. Accepts both coaxial and optical digital inputs. Great for adding that 80s Roland warmth to any cold modern DAW.

At the NAMM show in January 1994, Roland announced the DA-400, a 4 Channel D/A Converter designed to work alongside the S-760 (see the bottom of the page for a link to the unit specifications).

It proved a popular add-on as the converters were matched to those of the sampler, so sounds would stay of the same characteristics as opposed to being modified by the conversion process of another make and model.

This is what the brochure of the time said:

Converts two stereo digital inputs into four analog outputs.
Expands the S-760/OP-760-1 to eight analog outputs.
Accepts both coaxial and optical digital inputs.
18-bit 8-times oversampling.

The DA-400 is both a digital-to-analog converter and an
output expander, ideal for use with an S-760 Digital
Sampler/ OP-760-1 combination.

DA-400 4CH D/A CONVERTER

SAMPLING FREQUENCY:
48, 44.1, 32 kHz ( Auto select )

D/A CONVERSION:
18 bit linear, 8-times Over sampling

FREQUENCY RESPONSE:
48kHz : 10 Hz -- 23 kHz ( +0/-3dB )
44.1kHz : 10 Hz -- 21 kHz ( +0/-3dB )
32kHz : 10 Hz -- 15 kHz ( +0/-3dB )

OUTPUT IMPEDANCE:
300 ( Unbalanced )
600 ( Balanced )

CONNECTORS:
Digital Input Connectors
Coaxial ( 1/2, 3/4 ) : 2 ( conformable to the S/P DIF )
Optical ( 1/2 ) : 1 ( conformable to the S/P DIF )
Analog Output Jacks
1/4 inch phone type ( 1, 2, 3, 4 )
AC Inlet

S/N RATIO:
110 dB ( IHF-A, Typ. )

DYNAMIC RANGE:
Greater than 102 dB

POWER CONSUMPTION:
12 W ( AC117V), 15 W (AC230V), 12 W (AC240V)

POWER SUPPLY:
AC117V, AC230V or AC240V ( 50/60 Hz )

DIMENSIONS:
218 (W) x 230 (D)x 45 (H) mm
8-5/8 (W) x 9-1/16 (D) x 1-13/16 (H) inches

WEIGHT:
2.0 kg / 4 lbs 7 oz

Tested and working perfectly
