Doepfer - A-189-1: Voltage Controlled Bit Modifier

Brand New
$140
$124
$16 price drop
+$5Shipping
As low as $11/month with
1
2 in stock
Watch this listing to get price drop alerts
Shipped From
NOISEBUG
Pomona, CA, United States
4,159
Sales
6000+
Joined Reverb
2016
Preferred Seller
Quick Responder
Reverb Protection

Buy with Confidence – Reverb Protection has you covered

  • Live support from an expert team of musicians
  • Simple and straightforward returns
  • A safe community for finding the gear you want

About This Listing

Manufacturer Description:

module a-189-1 is the first derivative of the universal ad/da module. it
offers several voltage controlled algorithmic functions like voltage
controlled bit crunching, bit shifting (with/without carry over), bit
exchange, rectifying, absolute value and calculating operations like
addition, subtraction, multiplication or division.



the module has two control units both with manual control and cv input with attenuator:



one for the algorithmic function according to the selected mode (e.g. number of shifted bits): bc and bc cv

and one for the sampling rate (sr and sr cv).



the signal input is equipped with an attenuator. as the module is dc coupled even control voltages can be processed.



the mode (e.g. bit crunching, bit shifting, bit exchange) is selected by a 16-position rotary switch:





switch position
function
remark


1
bit crushing
bc controls the number of bits (bit
reduction)


2
and
signal and bc


3
or
signal or bc


4
xor
signal xor bc


5
bit shift right
bc controls the number of bit shifts


6
bit shift left
bc controls the number of bit shifts


7
multiplication
signal x bc


8
compare & complement
if signal > bc then output = bit
complement of the input signal, otherwise unchanged


9
compare & absolute
if signal > bc then output = absolute
value of the input signal, otherwise unchanged


10
addition
output = signal + bc (with
overflow/clipping)


11
addition with bc swap
same as 10 but with nibble swap of bc
(nibble = half byte, i.e. four bits)


12
short delay 1 with dynamic normalization
bc controls the length of the delay memory


13
short delay 2
same as 12 but different length/feedback


14
short delay 3
same as 12 but different length/feedback


15
short delay 4
same as 12 but different length/feedback


16
four stages fir filter
bc controls the filter coefficient






this module has a maximum current draw of 50ma. it requires 8 hp/te worth of space to fit in a eurorack frame.

Product Specs

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.learn more
Brand
Model
Categories
Made In
  • Germany

Reviews of this Shop

4,159

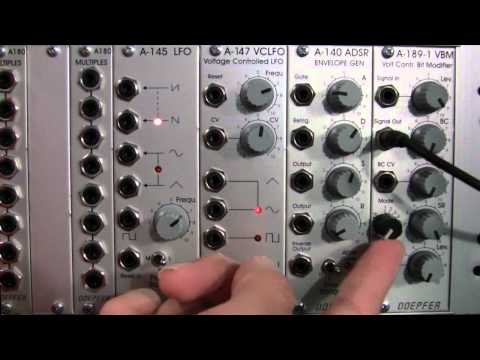

Watch a Video

;
