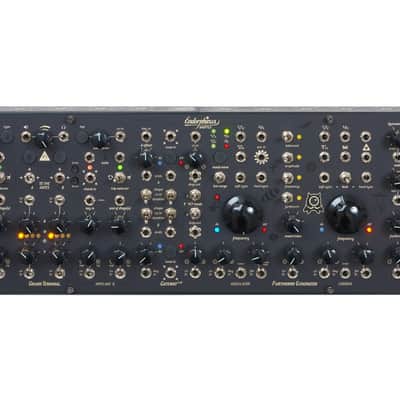

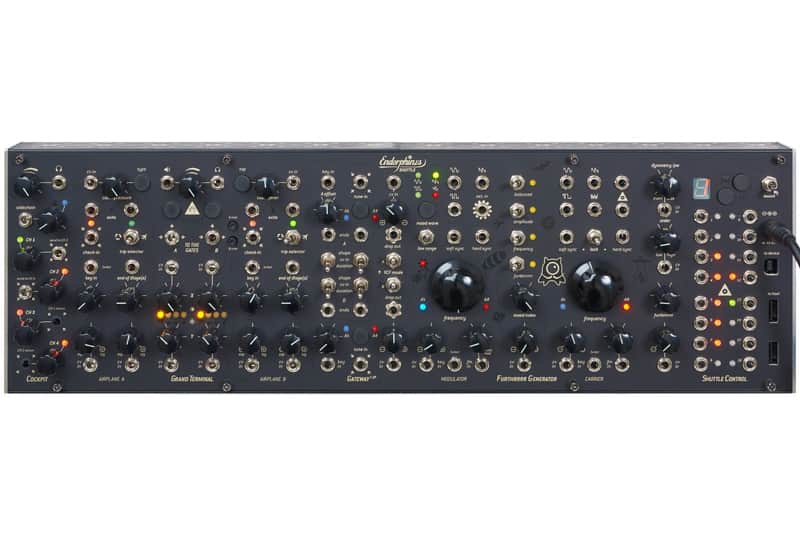

Endorphin.es Shuttle System Gold/black

The Shuttle System is a versatile modular setup, capable of generating classical as well as experimental sounds. The synthesizer is composed of two Buchla style oscillators plus Waveshaper, two function generators, which can be used as envelopes, LFOs or additional VCOs, two filters respectively low pass gates with eight modes of operation and an effects processor. Furthermore, a mono / stereo mixer with inserts and ducking compressor, utility circuits and a tune section are included. To control all those components, the instrument features an extensively equipped MIDI CV interface. – Consequently, the Shuttle System is able to create an extremely wide range of high quality sounds.

MORE THAN A TRIP

• The Endorphin.es SHUTTLE is a unique performance instru- ment containing 5 Eurorack modules in one single 84hp faceplate

• Shuttle Control (SC)—16 channel USB->MIDI->CV inter- face with almost infinite possibilities interpreting MIDI events into analogue control voltages—including CV/Gate, random or noise generators, MIDI or tap-clocks, utility LFOs and envelopes

• Furthrrrrr Generator (FG)—dual triangle-core VCO with a waveshaper

• Grand Terminal (GT)—dual voltage controlled gate with 8 resonant filter modes (ladder, diode, lpg, state variable, comb)

• dual envelope generators (voltage controlled) with looping/AD/ASR with arbitrary voltage to control slope shapes: from EXP to LIN to LOG without stretching the length of a certain slope (GT)

• Cabin Pressure audio FX processor with 8 selected effects (GT)

• Cockpit (CP)—4 stereo channel mixer with sidechain ducking

• Gateway (GW)—dual 1+1 utility mixer and auto-tuners to scale, offset and invert voltages
