Onkyo TX-SR500 High-Performance THX® Certified Select™ AV / 3D Audio-Ready Home Cinema Receiver

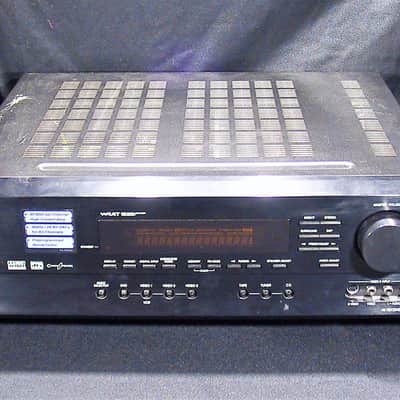

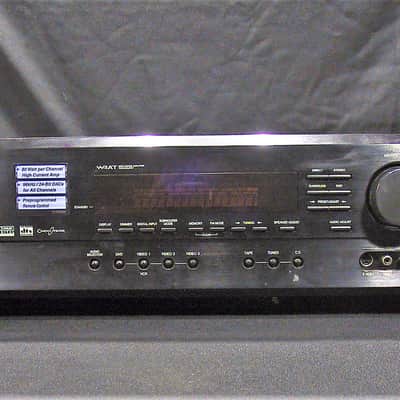

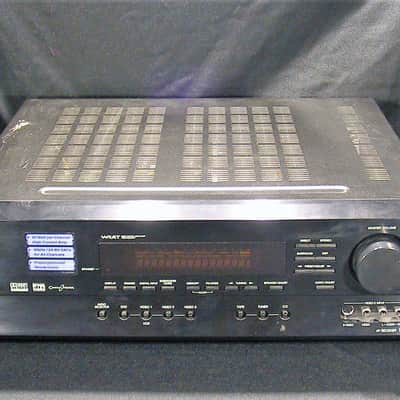

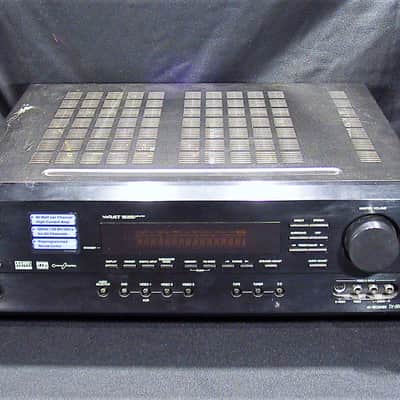

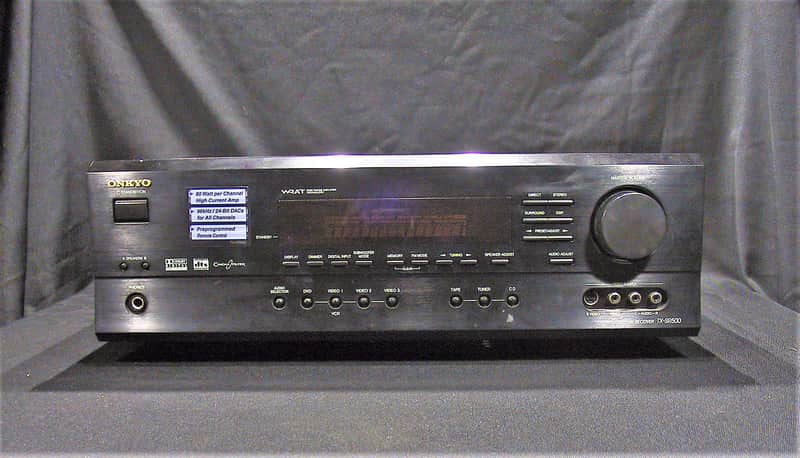

An Onkyo AV Receiver in Good condition. It does have some scratches on the top but is otherwise in very good condition. 80 watts per channel, Dolby Digital Pro Logic, DTS digital surround,  WRAT (Wide Range Amplifier Technology) Cinema Filter.
Complete list of specs below.

GENERAL

Type: AV receiver

Manufacturer: Onkyo

DISPLAY

Display Dimmer: Yes

AUDIO

Amplifier Output Details

85 Watt - 6 Ohm - THD 0.08% - 1 channels (center)
85 Watt - 6 Ohm - THD 0.08% - 2 channels (front)
85 Watt - 6 Ohm - THD 0.08% - 2 channels (surround)

Response Bandwidth: 10 - 100000 Hz

Signal-To-Noise Ratio: 100 dB

Total Harmonic Distortion: 0.08 %

DIGITAL MEDIA & NETWORK PLAYERS

Digital player type: none

POWER DEVICE

Power Consumption Operational: 320 Watt

Power Outlets: 1 AC outlet

Type: power supply

AUDIO SYSTEM

Type: AV receiver

Subcategory: AV components

Functions: AV receiver

Sound Output Mode: Surround Sound

Audio D/A Converter: 24bit / 96kHz

Built-in Decoders: DTS decoder, Dolby Digital, Dolby Pro Logic II

Surround System Class: 5.1 channel

Digital Sound Processor (DSP): Yes

DSP Presets: All Ch Stereo, Orchestra, Studio-Mix, TV Logic, Unplugged

Additional Features: A/B/A+B speaker switch, Midnight Mode, digital signal format auto detection / auto switching, mute button, on-screen display

Bass Control: Yes

Treble Control: Yes

Built-in Clock: sleep timer

CD

CD type: none

HEADER

Brand: Onkyo

Product Line: Onkyo TX

Model: SR500

Localization: English

Packaged Quantity:1

BUILT-IN DISPLAY

Type: fluorescent

TUNER

Response Bandwidth: 30 Hz

Signal-To-Noise Ratio: 70 dB

Total Harmonic Distortion: mono: 0.2%, stereo: 0.3%

MISCELLANEOUS

Timer: sleep

Color: black

Color Category

black

Body Material

metal

AMPLIFIER

Input Impedance: 50 KOhm

Input Sensitivity: 200 mV

AMPLIFIER OUTPUT DETAILS

Output Power / Channel: 85 Watt

Output Impedance / Channel: 6 Ohm

Total Harmonic Distortion (THD): 0.08 %

Channel Type: center, front, surround

Channel Qty: 1, 2

RADIO

Tuner Type: digital

Tuner Bands: AM/FM

Tuning Display: fluorescent display

Preset Station Qty: 30

Antenna Form Factor: loop AM / wire FM

Additional Features: worldwide tuning (9kHz/10kHz step selection)

INPUTS & OUTPUTS

Headphone Jack: Yes

Coaxial Digital Input: Yes

Optical Digital Input: Yes

CASSETTE SYSTEM

Type: none

DVD

Type: none

REMOTE CONTROL

Type: universal remote control

Remote Control Technology: infrared

ACCESSORIES

Supported Devices: AV receiver, CD player, DVD player, TV, VCR, cassette deck

Features: multi-brand compatibility, programmable

AUDIO SPECIFICATIONS

Type: Amplifier, Radio tuner

Frequency Response: 10 - 100000 Hz, 30 - 15000 Hz

Signal-To-Noise Ratio: 100 dB, 70 dB

MD SYSTEM

Type: none

POWER

Form Factor: integrated

Power Outlets: 1 AC outlet

INTERNAL STORAGE

Type: none

BATTERY / POWER

Type: power supply

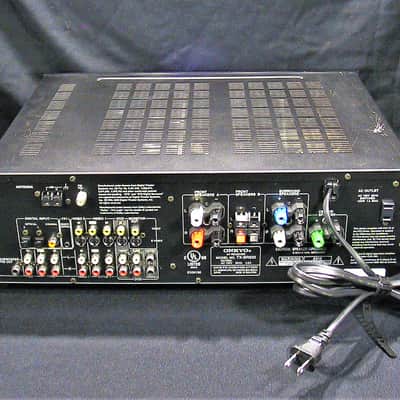

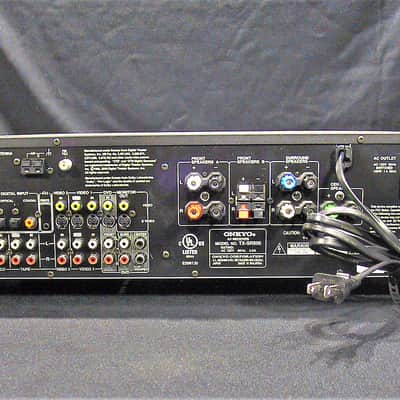

CONNECTIONS

Qty: 1, 2, 3

Type: 5.1 channel audio line-in, AM antenna, FM antenna, S-Video input, S-Video output, SPDIF input, audio line-in, audio line-out, center speaker output, composite video input, composite video/audio input, composite video/audio output, front speakers output, headphones, monitor output, rear speakers output, remote control, subwoofer output

Connector Type: 4 pin mini-DIN, F connector, RCA, RCA x 2, RCA x 3, RCA x 6, TOSLINK, banana/spade x 2, click-fit x 2, mini-phone 3.5 mm, phone stereo 6.3 mm

Connector Location: front, rear

DIMENSIONS & WEIGHT

Depth: 14.8 in

Width: 17.1 in

Height: 5.9 in

Weight: 19.4 lbs
