T. Jauernig Electronics Gristle King Overdrive/Boost 2019 Orange

These are contract manufactured Gristle Kings. The circuit is the exact same circuit used in the handwired Gristle Kings built by T. Jauernig. Each and every one of these is personally tested by me (T. Jauernig). This is also the version that Greg Koch is currently using.

From the instruction sheet:

This version of the pedal is produced by a manufacturer for T. Jauernig Electronics and offered to the end user at a lower retail price than the full handwired version made entirely by T. Jauernig one at a time. Rest assured, each pedal is tone tested by T. Jauernig before it goes out to you.

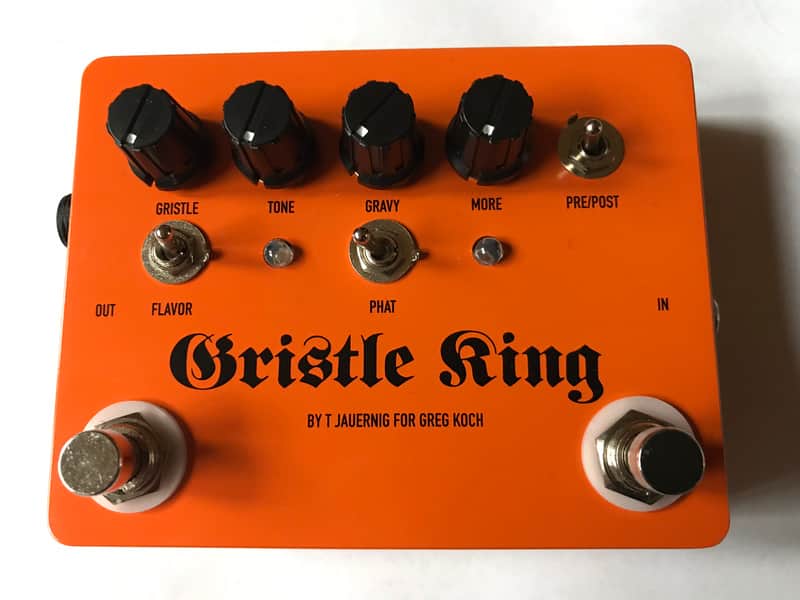

 CONTROLS EXPLAINED

 GRISTLE - Use this control to set the amount of gain desired

 TONE - Sets the tone of the overdrive

 GRAVY – Sets the output level of the overdrive

 MORE – Sets the boost level

 PRE/POST – This feature places the boost either before, or after your overdrive. Use the PRE setting to give you an addition boost in the level of gain. Use the POST setting to boost the volume of the signal, such as a lead boost.

 FLAVOR – Selects between a throaty open type of overdrive (left), or a more compressed type of overdrive sound (right)

 PHAT- with this switch toggled to the left, there is an increase in the low end of the overdrive effect.

 The GRISTLE, and MORE footswitches turn on the respective effects. Each effect can be used separately or in combination.

 NOTE: A “pop” may be heard for the first few minutes of use when turning the effects on and off. This is normal, and goes away in a few minutes.

 BATTERY REPLACEMENT: To replace the battery in your Gristle King, remove the bottom cover plate of the pedal. The pedal can also be powered by a 9 volt DC power supply. Note: Use only a DC supply of correct voltage and polarity. NOTE: Plugging into the input jack of the pedal turns on power to the unit. To preserve battery life, always unplug the cord from the input when not in use. The external DC power jack disconnects the battery when a power supply is plugged into it to preserve battery life.

WARRANTY: The Gristle King is warranted against failure from normal use for one year from the original date of purchase. All shipping charges shall be the responsibility of the purchaser.

FEATURES

 True Bypass

Low Power Consumption

Powder Coated Finish

Great Tone!
