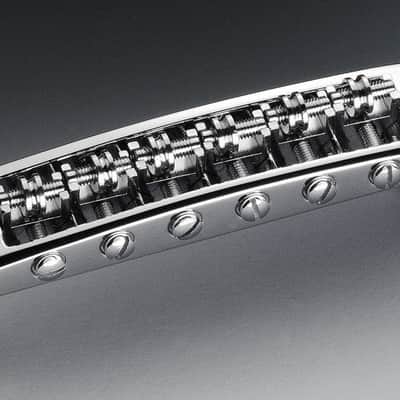

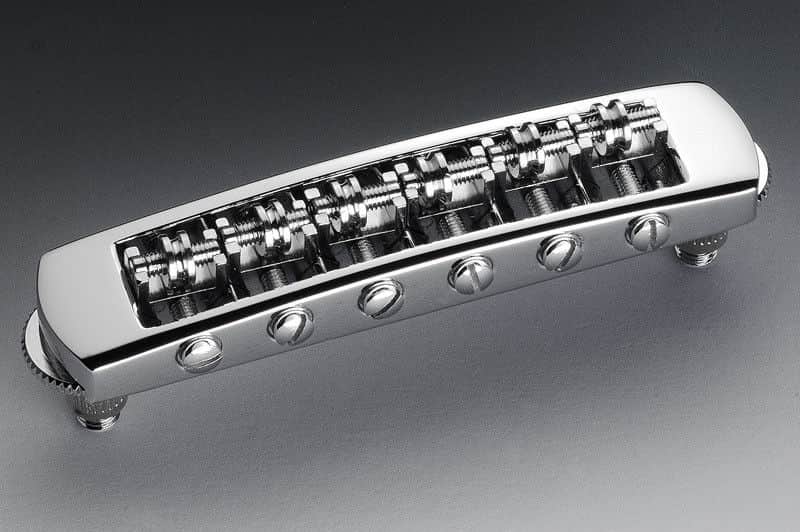

Genuine Schaller Germany STM Roller Tunematic CHROME Bridge for Les Paul Guitar

Manufacturers Part Number : 12080200

• High-quality bridge for all Les Paul™ type guitars.
• Compatible with post spacings from 74.0 - 74.5 mm (2.9134" - 2.933")
• Adjustable for height, intonation and string spacing
• Low-friction roller saddles for excellent tuning stability – perfect for Bigsby™ vibratos
• Comes with 2 different type saddle rollers to suit tone and string bending requirements: V-shaped for high strings and U-shaped for low strings

  Specification

• distance between height adjustment screws 74 - 74.5mm (2.9134" - 2.933")
• string spacing E-E 48.5 - 57.5mm (1.909"-2.264")
• string spacing individual 9.7 - 11.5mm (0.382" - 0.453")
• string radius 12“ (usable for fretboard 12-16 inch),
• minimal G/D string height above body 12.5mm (0.492")
• maximum string gauge 52
• weight 58g (90g with accessories)

Also Included:
2 press-in bushings M7 with 2 height-adjustment screws M5 (metric)
