ALL-TUBE DUAL CHANNEL GUITAR PREAMP PEDAL based on Dumble ODS preamp

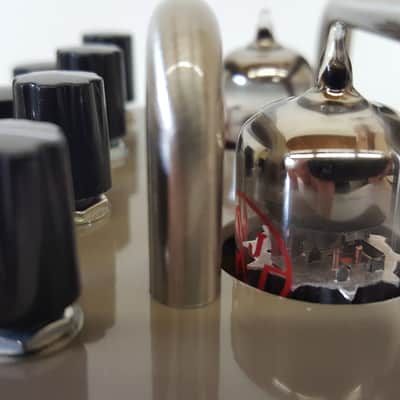

Hand built tube preamp with all-tube signal path, featuring two brand new JJ ECC83s vacuum tubes running at high voltage.
The circuit is inspired by the classic Fender \ Dumble ODS circuit and can produce a wide range of reach and creamy overdrive tones.
It operates off a standard 12VDC voltage, which is stepped up inside to the proper high voltage, around 300V DC.
Signal switching is "true bypass", two foot-switchable channels: Clean and Overdrive.
As it comes in the original Dumble circuit, the EQ is located right after the first gain stage, so it affects both Clean and OD channels.
When the OD channel is selected, the Clean channel is also on. So both the "Clean Volume" and the "OD" controls are active. This allows for the greater control over the tone and the amount of the overdrive, making this circuit super versatile.
The pedal is featuring the following controls:
The hand-built circuit board is housed in the powder coated die-cast aluminum enclosure similar to Hammond 1590XX.
Dimensions: 4.7"x5.7"x1.38" (120mm x 145mm x 35mm).
The marking on the enclosure is made by CNC engraving and filled up by the powder coating for extra durability.

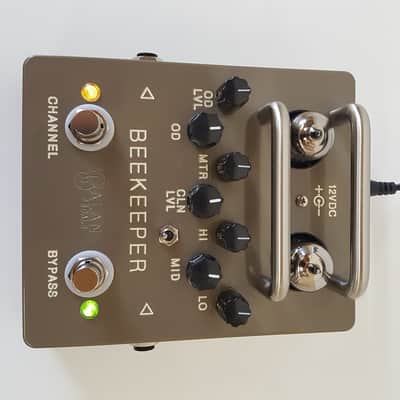

Power requirements: 12VDC/600mA (min), connector 2.1mm, center tip negative (BOSS-type).
Power adapter is not included in this listing. High quality power adapter WSU120-0700 from Triad Magnetics with US-type plug can be provided for additional $15 CAD.
Disclaimer:
All product names and brands are property of their respective owners. All company and product names used in this listing are for identification purposes only. Use of these names and brands does not imply endorsement.
International Buyers - Please Note: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying
Hand built tube preamp with all-tube signal path, featuring two brand new JJ ECC83s vacuum tubes running at high voltage.
The circuit is inspired by the classic Fender \ Dumble ODS circuit and can produce a wide range of reach and creamy overdrive tones.
It operates off a standard 12VDC voltage, which is stepped up inside to the proper high voltage, around 300V DC.
Signal switching is "true bypass", two foot-switchable channels: Clean and Overdrive.
As it comes in the original Dumble circuit, the EQ is located right after the first gain stage, so it affects both Clean and OD channels.
When the OD channel is selected, the Clean channel is also on. So both the "Clean Volume" and the "OD" controls are active. This allows for the greater control over the tone and the amount of the overdrive, making this circuit super versatile.
The pedal is featuring the following controls:

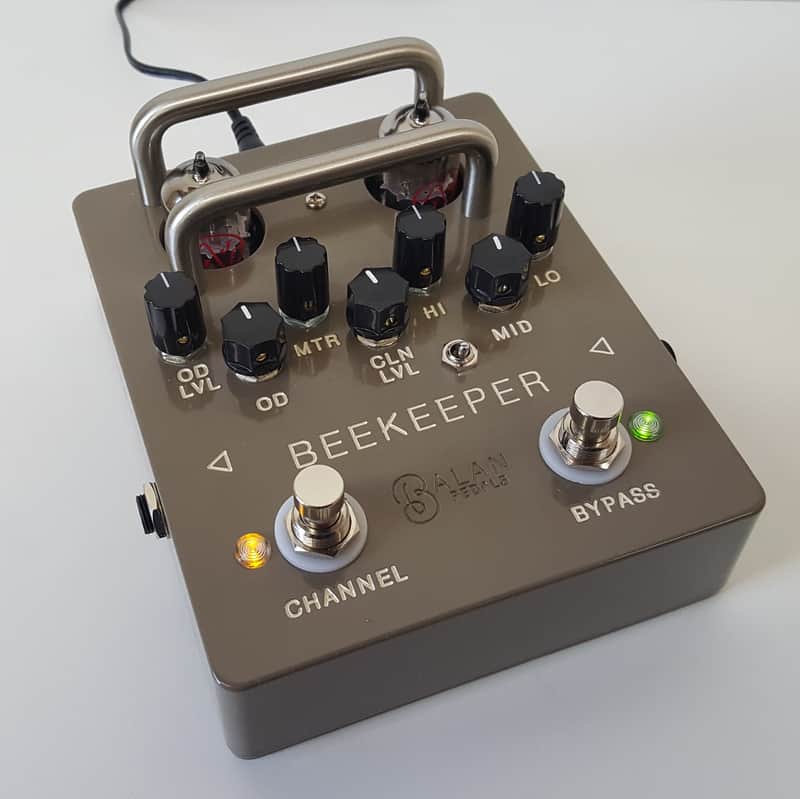

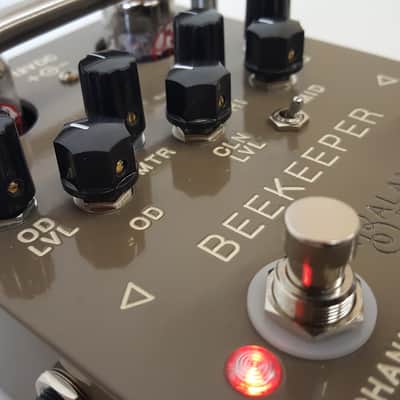

- OD LVL- volume of the overdrive channel
- OD - gain of the overdrive channel
- CLN LVL- volume of the clean channel
- HI, MID, LO - 3-band EQ
- Toggle switch - preamp boost (PAB) - partially bypasses the EQ thus increasing the overall gain level.
- MTR - master volume
- CHANNEL - channel selection foot switch with bi-colored indicator light.

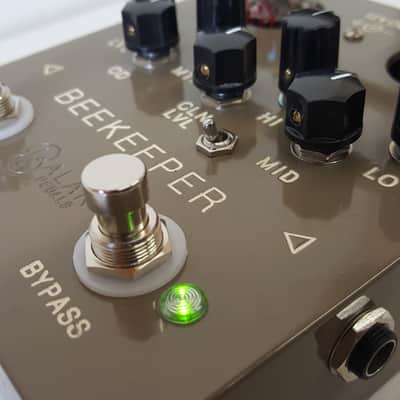

- BYPASS - on/off foot switch with indicator light.

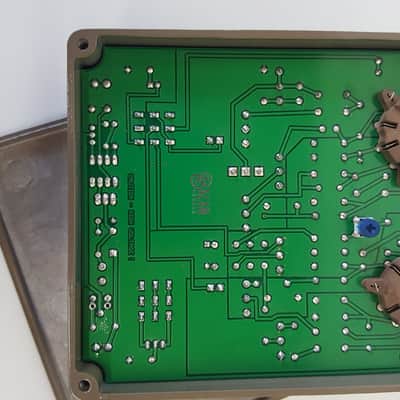

The hand-built circuit board is housed in the powder coated die-cast aluminum enclosure similar to Hammond 1590XX.
Dimensions: 4.7"x5.7"x1.38" (120mm x 145mm x 35mm).
The marking on the enclosure is made by CNC engraving and filled up by the powder coating for extra durability.

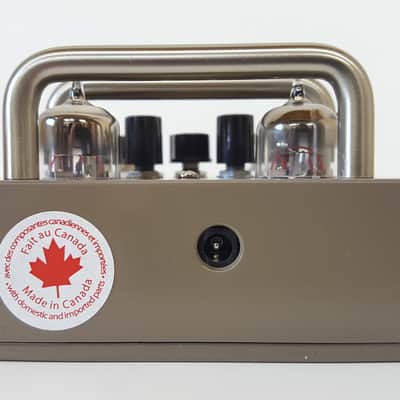

Power requirements: 12VDC/600mA (min), connector 2.1mm, center tip negative (BOSS-type).
Power adapter is not included in this listing. High quality power adapter WSU120-0700 from Triad Magnetics with US-type plug can be provided for additional $15 CAD.
Disclaimer:
All product names and brands are property of their respective owners. All company and product names used in this listing are for identification purposes only. Use of these names and brands does not imply endorsement.
International Buyers - Please Note: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying
