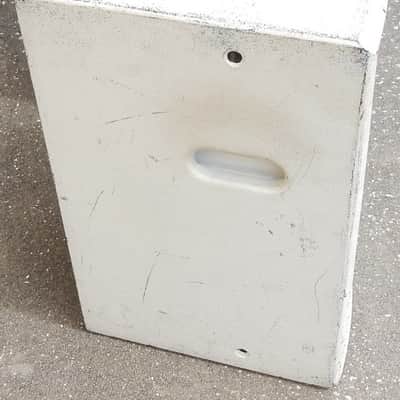

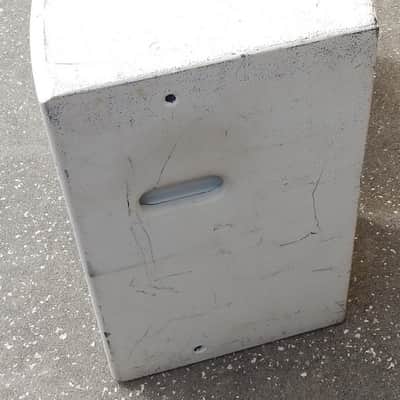

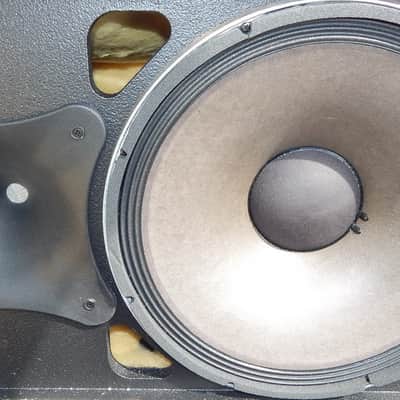

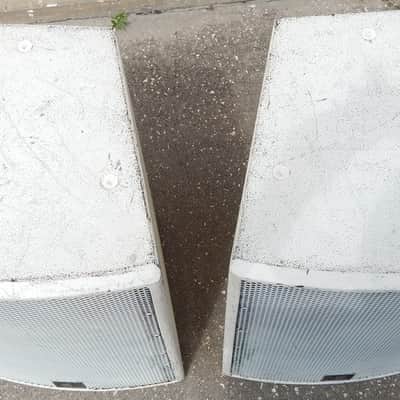

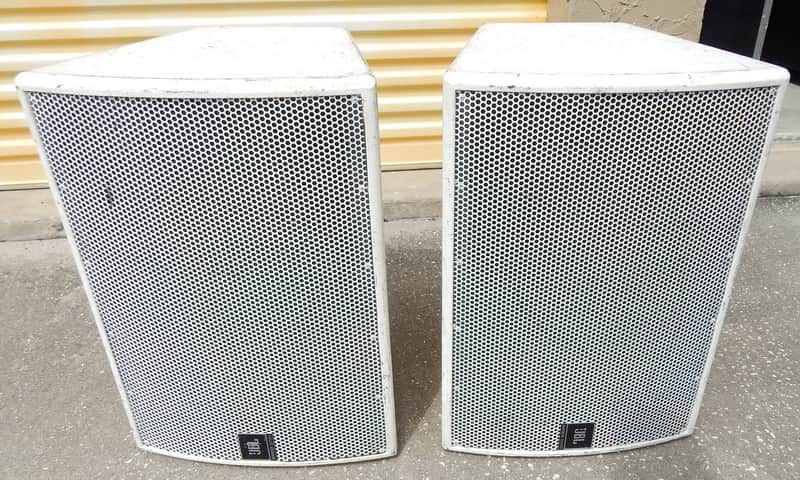

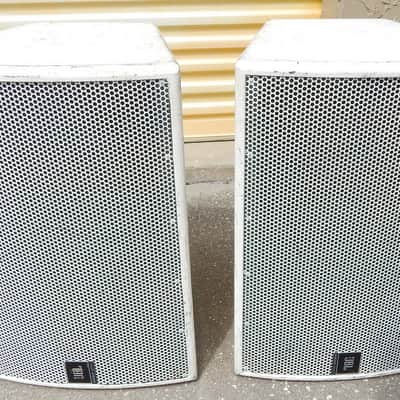

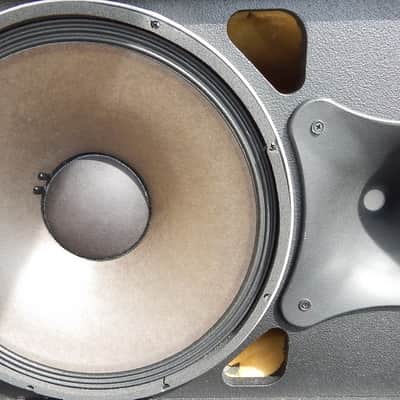

both tested and working great, i took the covers off to verify quality, likely the first time the covers were removed since the factory. as can be seen, the drivers are basically mint perfect, the cabinets show wear. these speakers rock, better quality than the standard consumer/dj grade.
JBL MS115/WH
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: 8 ohm
• Power Capacity: 350W IEC: 1400W Peak
• Frequency Range: 55 Hz – 17 kHz (–10dB)
• Sensitivity: 100 dB SPL, 1 Watt @ 1 Meter
• Crossover Frequency: 1.6 kHz
SYSTEM COMPONENTS:
• Grille: 128-00323-65,128-00323-00 (Wh)
• Low Frequency 380mm (15 in.) Dome
Transducer: Transducer (2032H)
DC Resistance: 4.3 ohm ± 10%
• High Frequency 25mm (1 in.) Titanium
Transducer: Diaphragm (2418H)
DC Resistance: 3.2 ohm ± 8%
SYSTEM COMPONENTS: (cont’d)
• Crossover Network 129-20039-00
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test: 7.0V Input, 20 Hz to 20 kHz
B. L.F. Aural Sweep Test: 7.0V Input, 20 Hz to 1.2 kHz
C. H.F. Aural Sweep Test: 2.83V Input, 550 Hz to 20 kHz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 661mm x 467mm x 413mm D
(26.0 x 18.38 x 16.25 in. D)
• Net Weight: 62 lbs. (28.2 kg.)
JBL MS115/WH
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: 8 ohm
• Power Capacity: 350W IEC: 1400W Peak
• Frequency Range: 55 Hz – 17 kHz (–10dB)
• Sensitivity: 100 dB SPL, 1 Watt @ 1 Meter
• Crossover Frequency: 1.6 kHz
SYSTEM COMPONENTS:
• Grille: 128-00323-65,128-00323-00 (Wh)
• Low Frequency 380mm (15 in.) Dome
Transducer: Transducer (2032H)
DC Resistance: 4.3 ohm ± 10%
• High Frequency 25mm (1 in.) Titanium
Transducer: Diaphragm (2418H)
DC Resistance: 3.2 ohm ± 8%
SYSTEM COMPONENTS: (cont’d)
• Crossover Network 129-20039-00
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test: 7.0V Input, 20 Hz to 20 kHz
B. L.F. Aural Sweep Test: 7.0V Input, 20 Hz to 1.2 kHz
C. H.F. Aural Sweep Test: 2.83V Input, 550 Hz to 20 kHz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 661mm x 467mm x 413mm D
(26.0 x 18.38 x 16.25 in. D)
• Net Weight: 62 lbs. (28.2 kg.)
