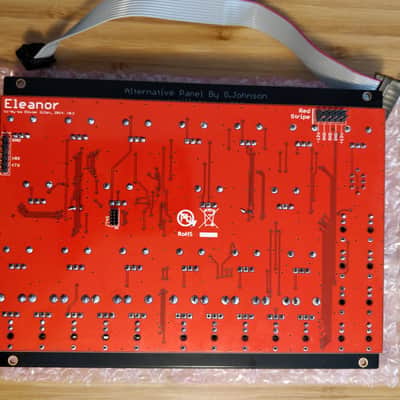

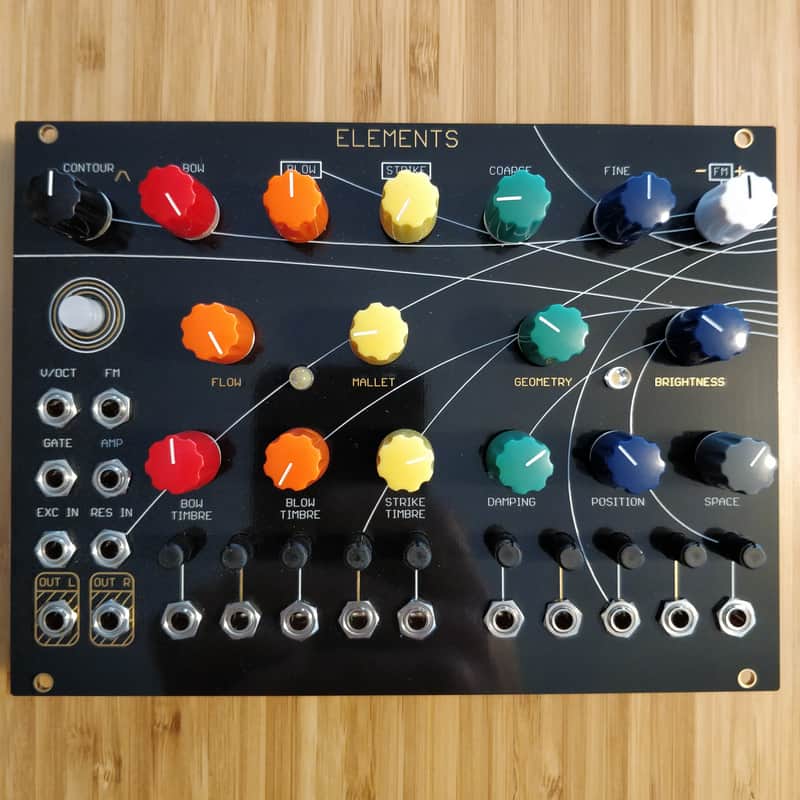

Professional quality full size DIY build of Mutable Instruments Elements, with Oscillosaurus front panel and rainbow knobs. Mint, 100% functional. Comes with power cable.
Excitation signal generator
Excitation signal generator
- Three generators with mixer: bowing noise, blowing noise, percussive impulses.
- Envelope contour for bowing and blowing.
- Bowing noise generator: particle-like scratching noise with 2-pole low-pass filter.
- Blowing noise generator: granular pitched noise with wavetable-like scanning between various tone colors.
- Percussive impulse generator: interpolates through a collection of impulsive excitations – including sampled sticks, brushes and hammers, and models of damped mallets, plectrums, or bouncy particles. 2-pole low-pass filter and pitch control.
- Internally uses 64 zero-delay feedback state variable filters.
- Coarse, fine and FM frequency controls.
- Geometry: Interpolates through a collection of structures, including plates, strings, tubes, bowls.
- Brightness. Specifies the character of the material the resonating structure is made of – from wood to glass, from nylon to steel.
- Damping. Adds damping to the sound – simulates a wet material or the muting of the vibrations.
- Position. Specifies at which point the structure is excited.
- Space. Creates an increasingly rich stereo output by capturing the sound at two different points of the structure, and then adds more space through algorithmic reverberation.
- All exciter and resonator parameters have a dedicated CV input with attenuverter.
- Strength input, for amplitude control of the exciter section.
- Frequency control through a V/O input controlling the main resonator frequency, and an FM input.
- Two audio inputs: one pre-envelope and diffuser, the other patched straight to the resonator.
- Stereo audio output, with adjustable width/reverberation. It is also possible to output the raw exciter signal on one channel, and the raw resonator signal on the other.
- Input impedances: 100k.
- CV range: +/- 8V. CVs outside of this range are simply clipped.
- Audio input level: calibrated for modular (10 Vpp).
- Audio acquisition and restitution: 16-bit, 32kHz.
- Internal computations on 32-bit floating point numbers.
