DiGiGrid IOS

DiGiGrid IOS is a comprehensive audio interface with a built-in SoundGrid DSP server that adds more plugin processing power to your system. Ideal for professional and personal production environments alike, the IOS is the all-in-one solution for Native DAW users (Logic, Cubase, Nuendo, Ableton, Pro Tools Native, etc.) Together with the SoundGrid Studio System, DiGiGrid IOS enables you to mix and monitor in real time using hundreds of SoundGrid-compatible Waves and third-party plugins, with incredibly low latency of only 0.8 milliseconds.

DiGiGrid IOS Interface Features:

• Audio interface for Native DAWs
• Integrated SoundGrid DSP server
• 8 mic/line Inputs, 8 line outputs
• MIDI, S/PDIF, AES/EBU connectors
• Full plugin integration
• Quick-view front panel metering
• High-definition 192kHz ADC conversion
• Super-low latency: 0.8 milliseconds

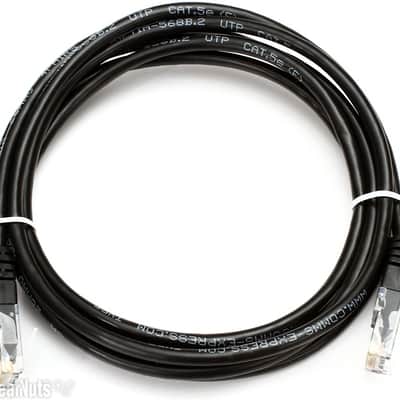

• Connect with one Ethernet cable (Cat 5e/Cat 6)
• Run hundreds of real-time plugins
• ASIO and Core Audio-compliant

General

• Internal SoundGrid DSP Server (Intel i3)
• 8x channel mic/line inputs (XLR/TRS combo)
• 8x channel line outputs (TRS or 25-pin D-con)
• 4x SoundGrid RJ45 Ethernet ports
• 2x channel AES/EBU or S/PDIF (switchable)
• Sample rate conversion on AES input
• 2x headphone outputs with analog level knobs

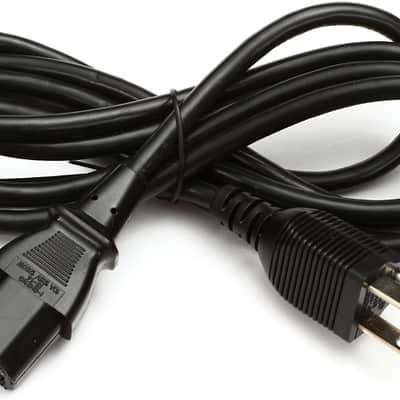

• 1x AC input
• 1x USB port
• 2U rack-mounted
• Supported sample rates: 44.1, 48, 88.2, 96, 176.4*, 192*kHz
• Word clock I/O
• Clock synchronization via Word Clock input, AES/EBU, SPDIF, SoundGrid (SoE), Internal
• MIDI I/O
• Reset switch
• Multiple broadcast level format settings (jumpers on all analog I/Os)

Inputs

• Mic input impedance: 2K5 Ohms
• Phantom power: 48V
• Line input impedance: 8K0 Ohms
• Mic gain range: -20 to +60dB in 0.5dB steps
• Line gain range: -30 to +50dB in 0.5dB steps
• Mic maximum input level: +26dB
• Line maximum input level: +36dB
• Mic equivalent input noise: >-126dB (150 Ohm source, Gain +60dB)
• Frequency response: +/-0.5dB 20Hz to 20kHz
• Harmonic distortion:
• Channel separation: Better than 90dB (40Hz to 15kHz)

Outputs

• Maximum line output level: +22dBu
• Residual line output noise: Frequency Response: +/-0.5dB 20Hz to 20kHz
• Line output impedance: 50 Ohms
• Channel separation: Better than 90dB (40Hz to 15kHz)
