4 Calrec PQ 1347 Transformer Balanced Input modules

Modules from a Calrec M Series console.

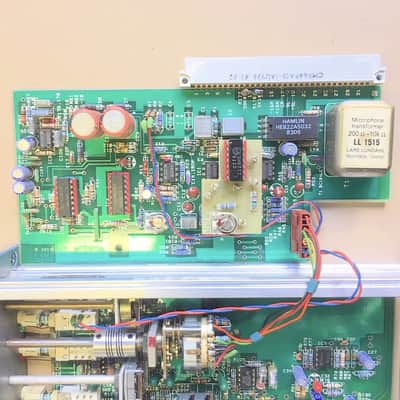

4 PQ 1347 inputs modules : they come with 4 Lundahl transformers mounted on a single PCB providing 4 Microphone Pre-Amps with a 3 band parametric equalizer plus frequency variable High Pass and Low Pass filters.

Untested £1,000 or Tested and serviced £1,200

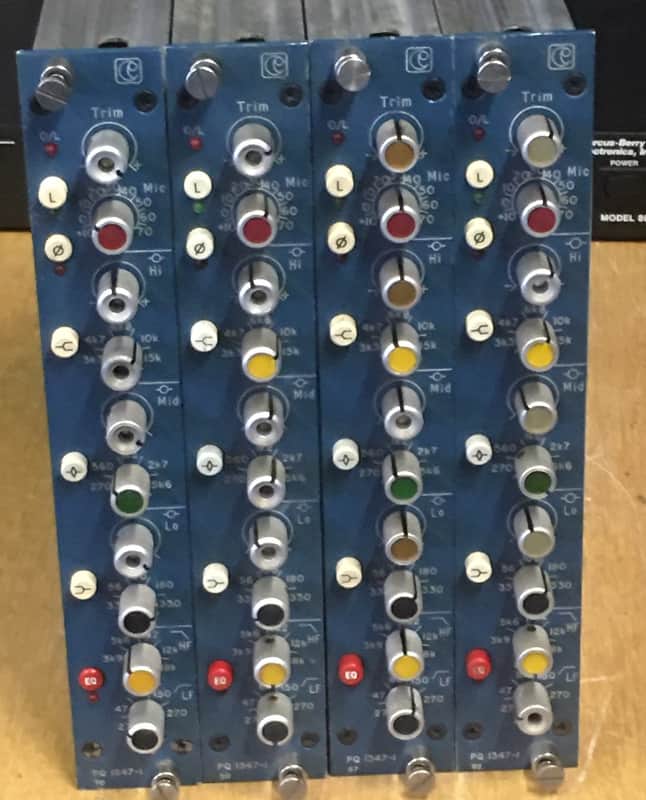

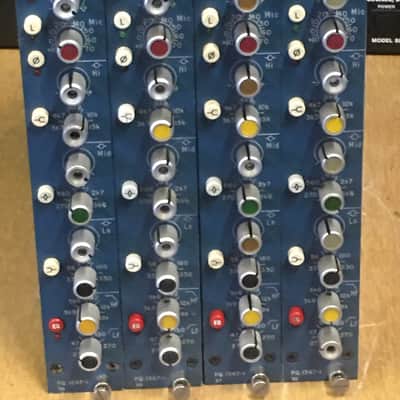

Module Features :

3 Band parametric EQ with variable high and low pass filters

Level Trim pot : Mic / Line switch : Mic Gain 80 db range : Phase reverse : High Frequency Shelving / Peak & Trough switch : High Frequency Boost & cut pot : High Frequency range pot 3k3 Hz to 15 kHz : Mid Range switchable Q : Mid Frequency Boost & cut pot : Mid Frequency range pot 270 Hz to 5k6 Hz : Low Frequency Shelving / Peak & Trough switch : Low Frequency Boost & cut pot : Low Frequency range pot 33 Hz to 330 Hz : High Frequency Roll Off Filter pot 3k9 Hz to 18 kHz : Low Frequency Roll Off Filter pot 27 Hz to 270 Hz. EQ In/Out switch.

NB : These modules are not racked and will require a power supply capable of providing plus & minus 17 volts, 8 volts, & 48 volts phantom power

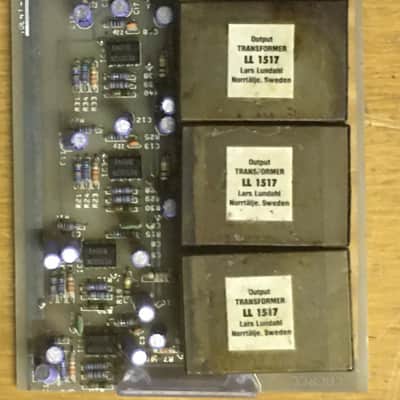

PRICE : £1,000 for 4 input modules plus 4 Lundahl output transformers UNTESTED

Or Tested and serviced by Calrec Specialist Gareth Connor £ 1,200

US & Non-EU Customers Please Note: The shipping cost listed is just an estimate, so please contact us with your Zip/Post Code for an accurate shipping quote before buying this item.

E&oe
