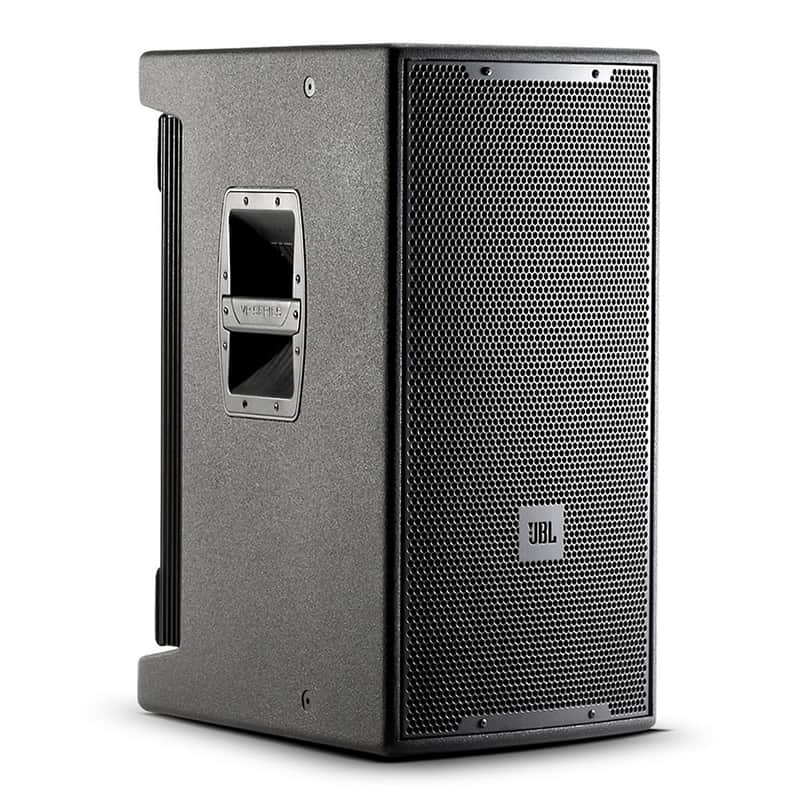

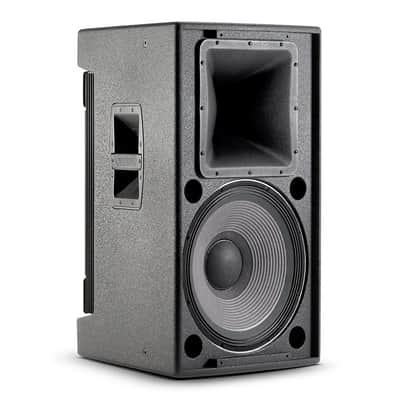

JBL VP7215/95DP Powered 15 in. 2-way Integrated Loudspeaker System

 Drawing upon its 60 years of leadership in professional audio, JBL has once again driven sound reinforcement technology to a new threshold of performance, by delivering a best-in-class powered loudspeaker system family, the JBL VP (Venue Performance) Series. Featuring the ultimate in power, fidelity, reliability and control, the VP Series is perfectly suited for a wide variety of demanding, professional applications. With the VP Series, JBL engineers transcend the natural evolution of self-powered speaker system development by integrating proven Differential Drive® transducers and a next-generation high frequency compression driver with the JBL DrivePack® technology platform, developed not only to deliver the best sound available, they are also very user-friendly while offering an unprecedented level of intelligent control and monitoring capability. Astutely application driven, the VP Series represents JBL's precision-engineered sound at its very best.

Powered 15 in. 2-way Integrated Loudspeaker System
The VP7215/95DPAN is a powered 15" 2-way integrated loudspeaker system featuring 2200 watts of peak output power, 1100 watts continuous, and onboard digital signal processing.

FEATURES

• Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable or installed use.
• 2200 Watts peak output power, 1100 Watts continuous.
• HiQnet™ compatible; network control.
• 15-inch Differential Drive® low-frequency driver for extended low-frequency output .
• 90° x 50°coverage.
• Stylized and ergonomically designed powder-coated die cast aluminum handles.
• Six 3-inch fly track suspension points and fourteen M10 fittings (optional detachable flying fittings and forged eye bolt kits available).



SPECIFICATIONS   Frequency Range 45 Hz to 20 kHz
(-10 dB)   Frequency Response 60 Hz to 18 kHz
( ± 3 dB)   Coverage Pattern 90° x 50°
rotatable waveguide   Directivity Factor (Q) 12.6   Directivity Index (DI) 11 dB   Maximum Peak Output1 137 dB SPL 1m   Transducer Section     Low Frequency Section JBL 2265G, 381 mm (15 in) dia.,76 mm (3 in) Dual Coil neodymium Differential Drive®, Direct Cooled   Bandpass Nominal Impedance 4 ohms   High Frequency JBL2452H-SL, 100mm (4in) titanium damped diaphragm, 1.5in. exit   Bandpass Nominal Impedance 8 ohms   System     DP2 Internal Amplification Output (at nominal load) 2200 Watts Peak,
1100 Watts Continuous   DP2 Output (Continuous IEC shaped pink noise into rated load impedance) 750LF/350HF Watts   DP2 Output Section 2-Channel, Class I   Audio Input connector XLR with loop-through   Network Control Connector Ethernet, RJ45   Signal Processing DSP based limiters for mechanical and thermal protection   AC Power Oprating Range Auto Select 90-132VAC/216-264VAC, 50/60Hz   AC Input Connector Neutrik PowerCon   AC Loop-Thru Neutrik PowerCon   AC Current Requirement: 6A per system at 120V, 3A per system at 240V   Enclosure     Box Construction 5/8in. multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.   Suspension System 6 standard air-cargo 3 in. track and 14 M10 fittings   Grille 14 Gauge Black powder-coated perforated steel with foam backing   Dimensions
(H x W x D) 765.3 x 447.6 x 523.5 mm
(30.13 x 17.62 x 20.61 in.)   Net Weight 38.6 kg (85 lb)
