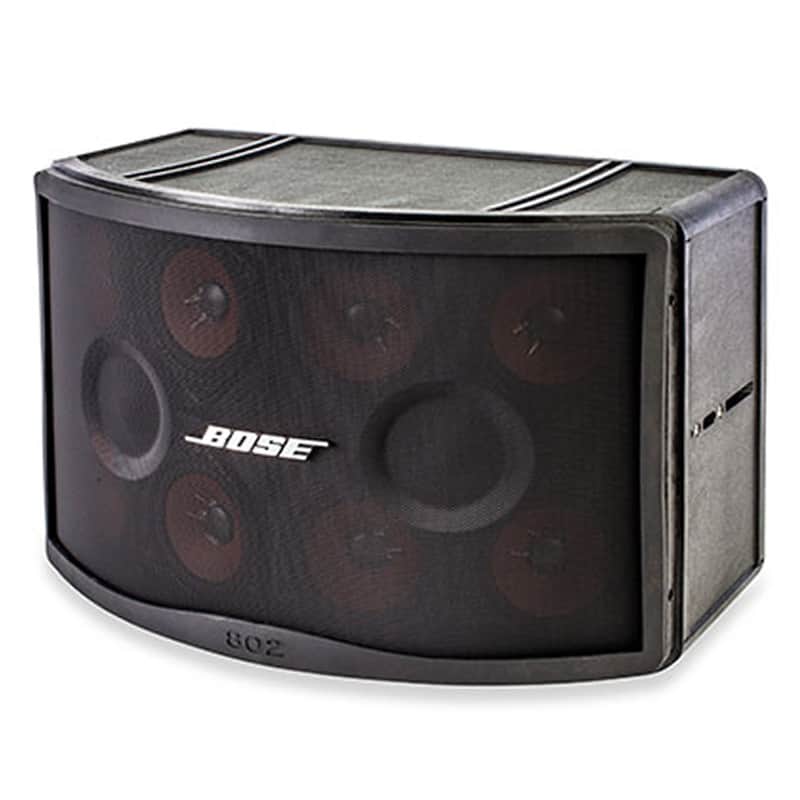

BOSE 802 Series IV Panaray PA Loudspeaker

The Panaray 802 installed sound-reinforcement loudspeaker features a full-range-driver array, eliminating the need for tweeters and crossovers, to provide unsurpassed reliability and vocal clarity.  The Articulated Array design, with wide 120° x 100° coverage, can reduce the number of required loudspeakers, while the 52-Hz low- frequency range can reduce the need for subwoofers, providing a cost-effective solution for many indoor or outdoor installed sound-reinforcement applications.

Product Overview

Frequency Range (-10 dB) 52 Hz - 15 kHz

• Sensitivity (SPL / 1 W @ 1 m) 92 dB SPL


• Nominal Coverage Pattern (H x V) 120° H x 100° V


• Nominal Impedance 8 Ω

Long-Term Power Handling

• Bose extended-lifecycle test⁴: 240 W


• AES transducer test⁵: 300 W

Power Handling, Peak

• Bose extended-lifecycle test⁴: 960 W


• AES transducer test⁵: 1200 W

Calculated Maximum SPL @ 1 m

• Bose extended-lifecycle test⁴: 116 dB SPL


• AES transducer test⁵: 117 dB

Calculated Maximum SPL @ 1 m, peak

• Bose extended-lifecycle test⁴: 122 dB


• AES transducer test⁵: 123 dB

Key Features

• Full-Range-Driver Array eliminates tweeters and crossovers for unsurpassed reliability in harsh environments and vocal clarity.

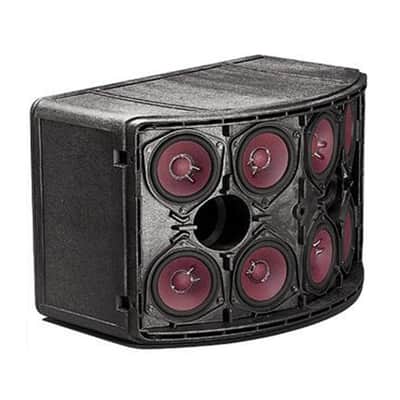

• 8x Bose 4.5-inch full-range drivers for legendary reliability


• 120° x 100° Articulated Array® design covers a very wide area, which can reduce the number of loudspeakers required


• 52 Hz - 15 kHz Frequency Range eliminates need for subwoofers for moderate full-range music levels


• 123 dB Peak SPL for sound-reinforcement and foreground music


• Rugged, lightweight enclosure with threaded inserts for easy installations


• Weather-Rated Design for indoor or outdoor installations


• Requires Active Equalization

Physical

• Enclosure - Mineral-reinforced HDPE


• Environmental - Outdoor per IEC 529 IP55


• Connectors - Two (2) parallel-wired NL4 Neutrik® Speakon® connectors

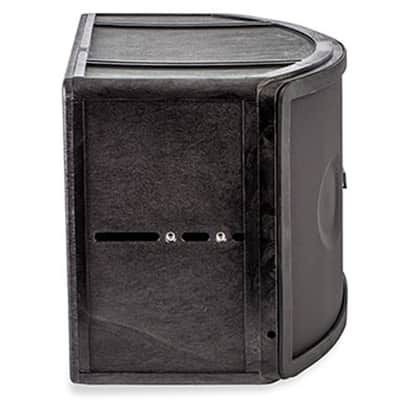

• Suspension / Mounting - 8 x M8 threaded inserts (2 back, 2 bottom, 4 sides)


• Dimensions (Enclosure only) - 13.3" H x 20.5" W x 13.2" D (338 mm x 520 mm x 335 mm)


• Net Weight - 30 lb (13.6 kg)


• Color - Black


• Package Contents - 1 loudspeaker
