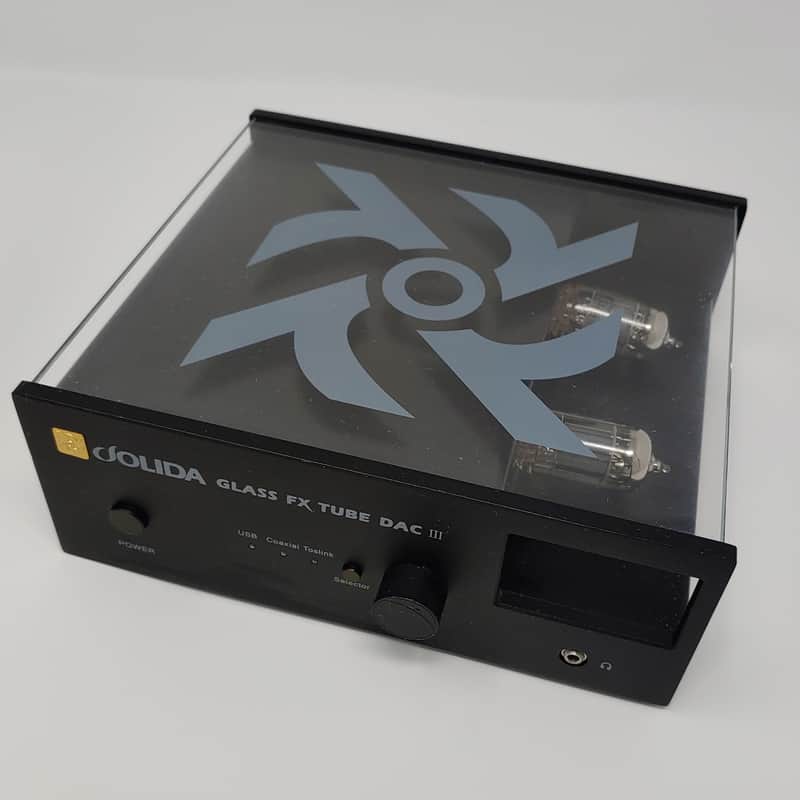

An update to Jolida's innovate FX Tube DAC, FX Tube DAC has modern digital features with an old-school tube analog output stage. The FX Tube DAC III allows you to convert your digital files (via S/PDIF, Tos-Link, and USB) using the newest Burr Brown DAC chipsets, and then sends its all-analog waveform through a pair of 12AX7 tubes for the sound all analog lovers crave.
Output Level: 0 V to 2.3V (±1dB, 47K ohms)(SIN SIGNAL 0dB SPDIF IN)
Frequency Response: 20-20 KHz (±0.5dB)
Bandwidth: 10Hz to 70kHz +1dB
SNR >90dB ( 20Hz-20kHz)
Dynamic Range 126 dB
Distortion THD: Less than 0.01% (1kHz)
Headphone Impedance 30 Ohms
Circuit Type: Ultra Linear, Class AB
Tube Complement: 2 pcs. 12AX7 pre-amplifier
Power Requirements: 110V-120 VAC 60Hz 90 watts-standby, 240 watts maximum (220 VAC 50Hz option)
Dimensions: 8 inches wide by 7 inches deep by 3 inches high
Weight: 7.5 lbs net, approximately 10 lbs.packaged
Warranty: 6 month limited parts and labor. Three months on the tubes
Fuse: 110 - 120 VAC, 1 Amp slo Blo; 200 - 240 VAC, .5 Amp Slo Blo
Construction Details and Features:
USB: 24/96 up sampling to 192 Hz
Toslink and coaxial: 24/192Hz
Galvanic Isolation: ADuM 1250 chips
Asynchronous Burr Brown Chip AD1896
Volume control and headphone jack
DAC Chip: PCM 1798
R Style Transformer
State the Art Components: capacitor filters, gold plated RCA jacks,
Finishes: Black and Silver
