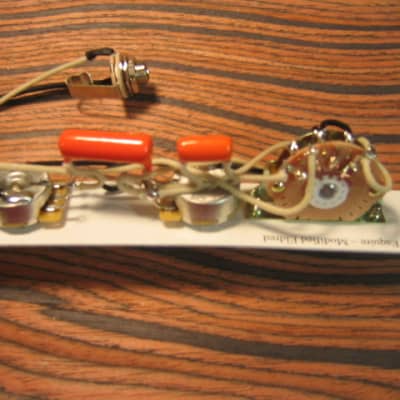

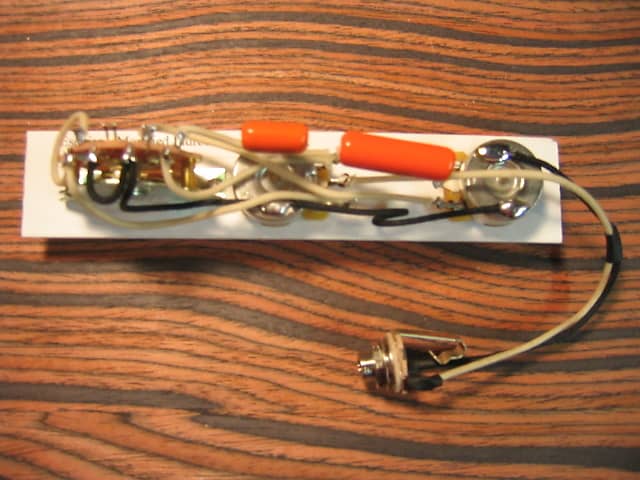

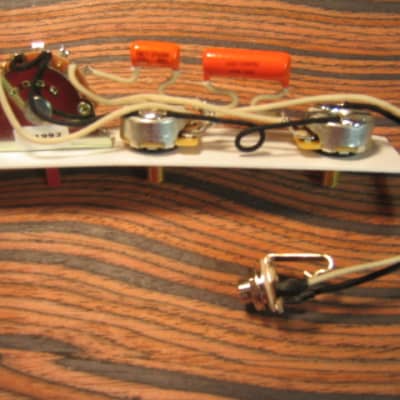

K D Paulus Guitar Parts Esquire Wiring Harness – Modded Eldred with True Bypass - Orange Drops

Premium Esquire Wiring Harness – Modded Eldred with TRUE BYPASS – Matched CTS Pots, Oak Grigsby 3-Way Switch, CDE Orange Drop 715P 0.047uf & 0.0033uf 600v Capacitors, Switchcraft #11 Jack

Excellent Quality Parts:

• Oak Grigsby 3-Way Switch
• Matched CTS Vintage Style Dishback Pots
• USA Spec, 3/8" Bushing Diameter x 3/8" Bushing Length Pots x 1/4" Shaft Diameter
• PLEASE NOTE: IF YOU PREFER SPLIT SHAFT POTS, LET ME KNOW AND I CAN MAKE YOU THIS SAME HARNESS WITH 250K CTS USA SPEC VINTAGE DISHBACK STYLE SPLIT SHAFT POTS INSTEAD
• Sprague Orange Drop 715P 0.047uf & 0.0033uf Capacitor
• Switchcraft #11 Jack
• Vintage Style 22 Gauge Pushback Wire
• Wiring Diagram Included

This Wiring Harness is drop in ready for your Tele build or upgrade. Just solder in your pickups and you are ready to go.

Type 715P ORANGE DROP is a high performance capacitor. It is made from polypropylene and foil.

This is a great capacitor for Esquire or Telecaster builds or upgrades!

The Modded Eldred with TRUE BYPASS Wiring Harness gives you the following modes:

• Position 1 – This rear position is true bypass. The guitar’s single pickup is routed directly to the output jack, with the tone and volume control removed from the signal path. MAXIMUM TWANG and SPANK – you hear the true sound of the pickup.
• Position 2 – Standard Esquire, routed through volume and tone controls.
• Position 3 – The pickup is routed through a single, small capacitor and volume control, and the tone control is bypassed. This is the Eldred “Cocked Wah” sound.

My harnesses are well made with top-notch components – CTS Pots; Oak Grigsby, CRL, & MojoTone Switches; NOS Paper in Oil, Wax Paper, & Orange Drop Caps; Switchcraft Jacks; Gavitt 22 Gauge Wiring; NOS Allen Bradley Resistors.

Here are some of the recent feedback comments on my harnesses:

• AWESOME! AWESOME! AWESOME! My Fender Esquire sounds KILLER!!! Thank you!
• Great quality, great contact and great prices +++A+++ seller
• Extremely pleased with my purchase. These wiring harnesses are the best!
• Great replacement wiring harness for tellies. Very professionally done.
• Awesome Seller!! Really Nice Pro Harness!! Thanks Very Much!!!
• Excellent International Transaction. Exact item. Super Fast Shipping! TY! A++++
• Beautiful wiring! look forward to using this, thanks
• Great Product..Fast Delivery
• Installed it into my Esquire/Jazzmaster hybrid guitar and it sounds fantastic!
• Great value. Very fast service. Thank you so much. A+++++
• Quality parts, fine workmanship, and excellent service. Buy with confidence!
• Excellent! Thanks for the well crafted parts!
• Super great transaction! Great item, fast responses and shipping. A+++!!!

Please note: Illinois buyers pay 8% sales tax
