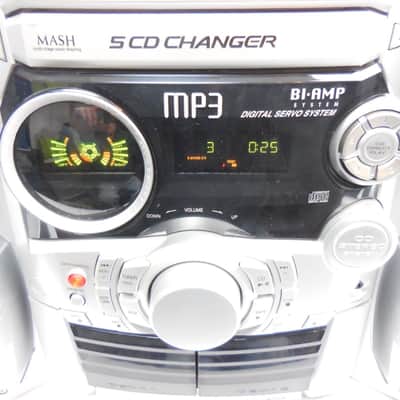

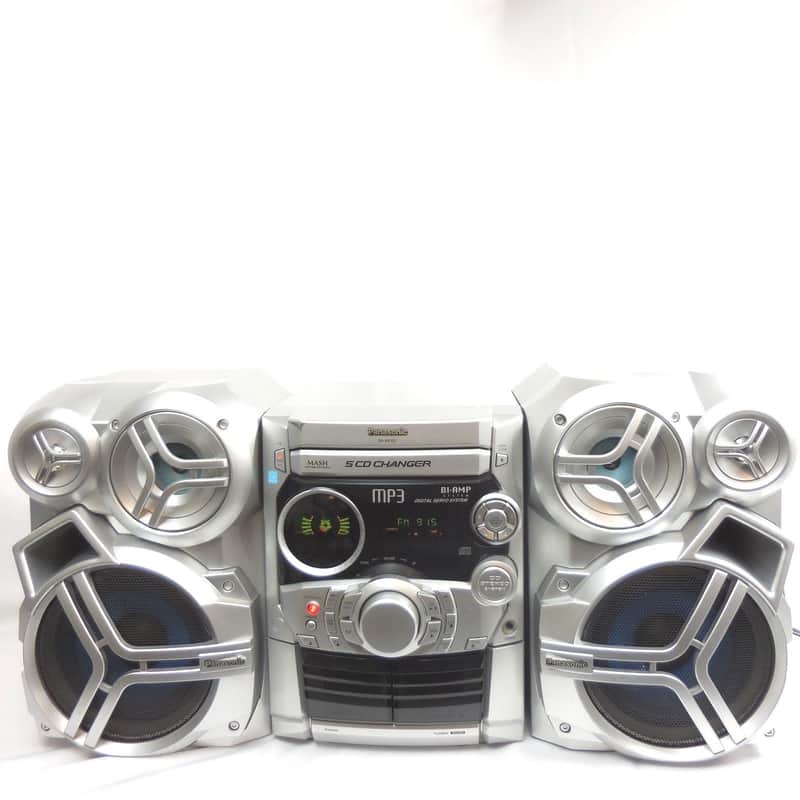

Weird Vintage Panasonic SA-AK320 Bi-Amp Bookshelf Hi-Fi Stereo System
One Tweeter is dented.
I don't have the remote... sadface.

225 Watts consumption

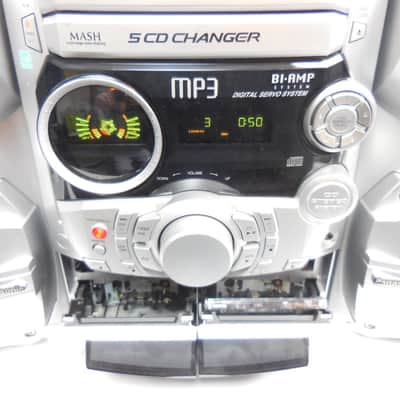

All functions work as they should: both tapes, CD, Tuner, Aux.
Unit has some scuffs and scratches from use on the main unit and speakers please see photos.
Looks very clean and nice when set up

Sounds excellent, for a space alien..

Has very wide stereo image and lots of bass. Gets dangerously loud.

Same or next day shipping.

Here are the specs courtesy of CNET Sorry if they look like garbage formatting I am too lazy to do anything but paste

  • Amplifier Output Details 75 Watt - 6 Ohm - at 1 kHz - THD 10% - 2 channels (main - woofer)
    75 Watt - 6 Ohm - at 10 kHz - THD 10% - 2 channels (main - midrange/tweeter)
SPEAKER SYSTEM

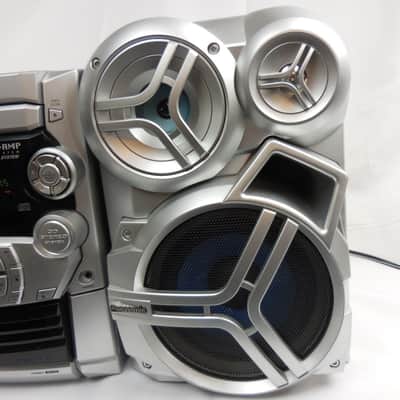

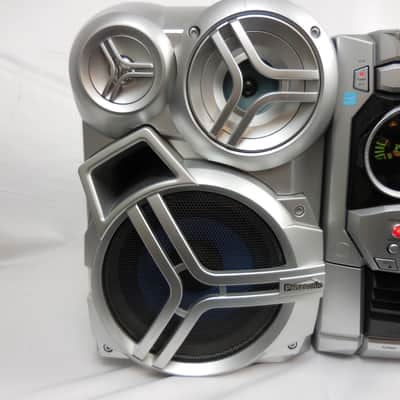

  • Driver Details 1 x woofer driver - 6.3"
    1 x tweeter driver - 2.36"
    1 x super tweeter driver - 0.98"


AUDIO SYSTEM
  • Type mini system
  • Subcategory audio systems, radios, karaoke
  • Functions CD changer, dual cassette, radio
  • Media Content Source CD
  • Media Type CD-R, CD-RW
  • Audio Formats MP3
  • Sound Output Mode stereo
  • Additional Features Bi-Amplifying, Bi-Wiring
  • Built-in Clock digital clock, sleep timer, timer
POWER DEVICE
  • Power Consumption Operational 225 Watt
CD
  • CD type CD / MP3 changer
  • Playback Modes all disks repeat, all tracks repeat, one track repeat, program play, random play / shuffle
  • Response Bandwidth 20 Hz
  • Sample Rate 32 Hz, 44.1 Hz, 48 Hz
  • Supported Bit Rate 32 - 320Kbps
  • CD-R Compatible Yes
  • CD-RW Compatible Yes
  • Supported Digital Audio Standards MP3
  • MP3 Playback Yes
  • ID3 Tags Support Yes

MISCELLANEOUS
  • Timer playback, record, sleep
EQUALIZER
  • Equalizer Yes
  • Equalizer Factory Presets Clear, Disco, Hall, Heavy, Live, Soft
  • Equalizer Factory Preset Qty 6
AMPLIFIER
  • Output Power / Total 300 Watt
  • Input Impedance 13.3 KOhm
  • Input Sensitivity 250 mV
AMPLIFIER OUTPUT DETAILS
  • Output Power / Channel 75 Watt
  • Output Impedance / Channel 6 Ohm
  • Frequency Response at 1 kHz, at 10 kHz
  • Total Harmonic Distortion (THD) 10 %
  • Channel Type main - midrange/tweeter, main - woofer
  • Channel Qty 2
RADIO
  • Tuner Type digital
  • Tuner Bands AM/FM
  • Tuning Display fluorescent display
  • Preset Station Qty 30
  • AM Preset Station Qty 15
  • FM Preset Station Qty 15
  • Auto Preset Memory Yes
INPUTS & OUTPUTS
  • Headphone Jack Yes
CASSETTE SYSTEM
  • Control Type full-logic
  • Type dual cassette deck
  • Frequency Response 35 Hz
CD SYSTEM
  • Changer Capacity 5
  • Media Load Type tray
  • CD-R Compatible Yes
  • Frequency Response 20 - 20000 Hz
DVD
  • Type none
REMOTE CONTROL
  • Type remote control
  • Remote Control Technology infrared
AUDIO SPECIFICATIONS
  • Type CD, Cassette
  • Frequency Response 20 - 20000 Hz, 35 - 14000 Hz
MD SYSTEM
  • Type none
SPEAKER SYSTEM DETAILS
  • Speaker Type main channel speaker
  • Speaker Qty 2
  • Speaker Form Factor external
  • Connectivity Technology wired
  • Crossover Channel Qty 3-way
DRIVER DETAILS (1ST SPEAKER)
  • Driver Type super tweeter driver, tweeter driver, woofer driver
  • Driver Qty 1
  • Driver Diameter 0.98 m, 2.36 m, 6.3 m
  • Driver Diameter (metric) 160 mm, 25 mm, 60 mm
POWER
  • Form Factor internal
  • Power Consumption Stand by / Sleep 0.3 Watt
INTERNAL STORAGE
  • Type none
BATTERY / POWER
  • Type power supply
CONNECTIONS
  • Qty 1
  • Type audio line-in, headphones
  • Connector Type RCA x 2, mini-phone stereo 3.5 mm
  • Connector Location front, rear
AV FURNITURE
  • Type none
DIMENSIONS & WEIGHT DETAILS
  • Audio System Component main unit, speaker system
  • Width 9.5 in, 9.8 in
  • Depth 14.4 in, 9.4 in
  • Height 13 in, 14.2 in
  • Weight 16.5 lbs, 8.4 lb
------------------------
