50H

Two Channels. Crunch and High Gain.

50 watts from a pair of 6L6 power tubes and all the features of our JCA100H makes our JCA50H ideal for gigging musicians who need plenty of stage volume with some nice power amp distortion. The Normal channel can range from clean tones to dirty rock riffs. The Overdrive channel is THE high-gain lead tone.

Depth mods are performed aftermarket here in the US, under warranty.

EL34 output tube mods are performed using the same transformer set and a few circuit mods. We use matched JJ output tubes, unless specific tubes are requested at an additional cost.

Tech Specs:

• Channels:Normal and Overdrive, foot-switchable with included footswitch

• Controls: Normal and Overdrive Gain, Bass, Middle, Treble, Normal and Overdrive Masters, Presence

• Effects Loop: Tube-Buffered Serial

• Footswitch: Normal/Overdrive channel footswitch, included.

• Tubes: 5x 12AX7 Preamp / 2x 6L6 Power

• Cabinetry: Multi-ply, void-free hardwood

• Chassis: 16 gauge, cold-rolled steel

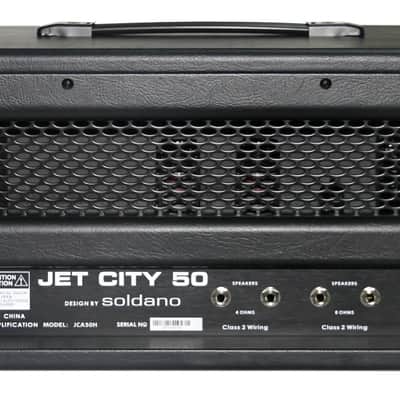

• Output Power: 50 watts into 16 ohm or 2x 8 ohm speaker outputs

• Input Power: Multi-tapped power transformer at 100v/120v/220v/240v and standard IEC connector

• DIMS: 9.5″Hx9.5″Dx25″D

• Weight: 40lbs net
