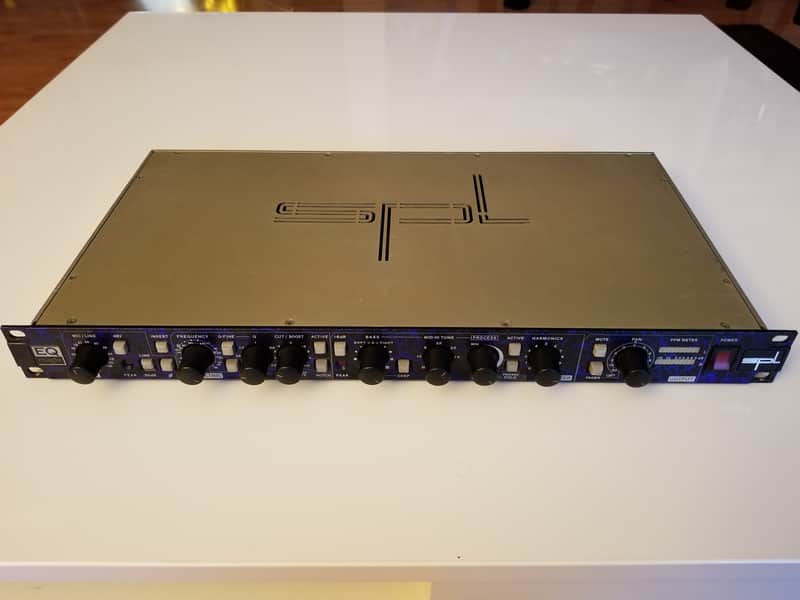

SPL EQ Magix Mic Preamp Channelstrip + Parametric EQ Vitalizer/Exciter-Vocals/VO

The EQ MAGIX is a first-rate German-made mic pre + an equalizer with exemplary specifications, excellent workmanship and unrivaled sound quality.

From manufacturer's manual:
The EQ MAGIX is a single-channel equalizer system consisting of a para-metric and a psychoacoustic equalizer. Both are combined with a superior microphone preamplifier and an active two-channel panorama output stage.
It is ideally suited for both a demanding instrumentalist's or a singer's rack. Existing equipment can be looped into the signal path via INSERT. The unit's outputs are either connected directly with the recording medium or with one to four (2x balanced and 2x unbalanced) mixing desk channels. From there, the signal is fed into the Insert Return after the EQ section (provided that appropriate Insert points are available), so as to bypass as much desk circuitry as possible. As you know, a signal is also influenced if all the switches are on 'off ́ and all controls are in the centre position or on '0 ́. That is why it is advisable to feed the signal in after the desk equalizer.
The technology in the microphone preamplifier is used in the very latest generation of mixing desks made by Harrison and SSL.

The parametric EQ of the EQ MAGIX is based on SVF design (state-variable-filter) and provides a operation frequency range between 14 Hz and 58 kHz. The integrated VITALIZER was developed by SPL and has achieved a significant degree of popularity over the years. The filter concept works on the basis of psychoacoustic sound principles and is therefore ideal to achieve creative sound effects. The combination of a flexible parametric EQ and VITALIZER means that the EQ MAGIX is not only predestined to process the sounds of acoustic instruments but also to post-process samples or poor quality Sync audio tracks, ranging from the elimination of aliasing artefacts or other digital
interferences to the addition of sub basses or comprehensive sound impro-vements via the VITALIZER.
Please let me know if you have any questions.
Thanks for looking!
