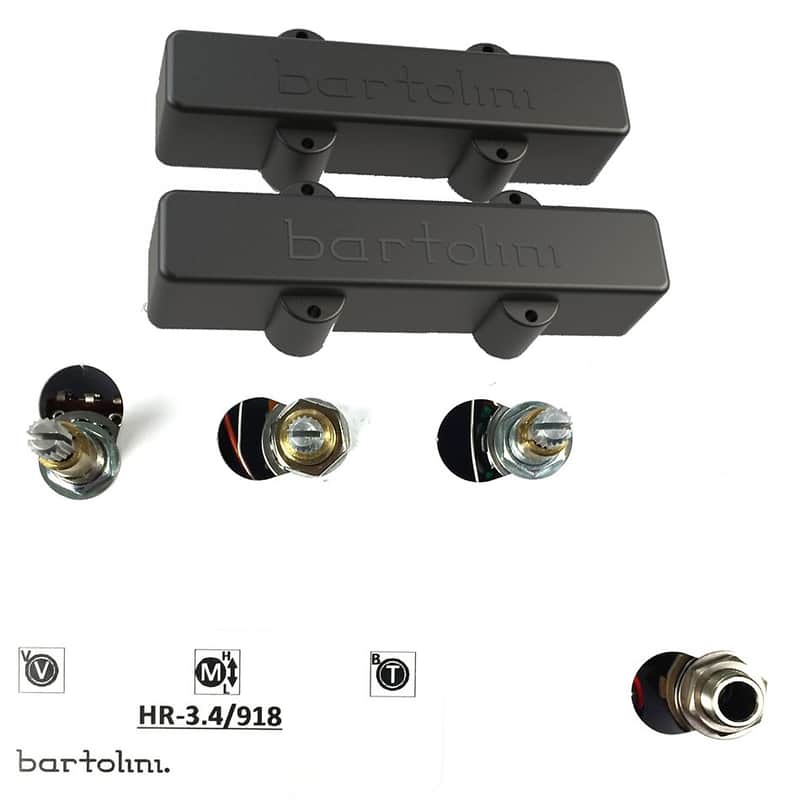

Bartolini 9J1-L/S Jazz Bass Pickups with HR3.4/918 Harness

The 9J1 L/S is the Fender Jazz Bass (J Bass) replacement pickup set with a ‘long’ for the bridge and a ‘short’ for the neck. The set is highly respected by musicians and luthiers alike for its deep tone, strong lows, low mids tone. They feature a dual in-line coil design.

The “original series” bass pickups with passive designs. They are cast in epoxy to remove unwanted feedback and microphonics.

The lengths of the neck and bridge pickups in the original J-basses are not equal. The neck pickup is 3-5/8″ long which is slightly shorter than the bridge pickup which is 3-3/4″ long. Some modern designs, however, use two ‘long’ bridge-length pickups.

In this configuration it is important to use the “LN” (long neck) pickup that is specifically designed to work in this position (do not use a bridge pickup in the neck position). Some (very few) use two ‘short’ neck length pickups. Please check the physical size of the pickups you want to replace to make sure the replacements fit properly.

• Bass Guitar: 4-string

• Pickup Shape: Standard J Bass

• Pickup Series: Original Bass

• Coil Type: Dual In-Line (hum-cancelling)

• Width (inches/mm): 0.73 / 18.42 (ears not incl.)

• Tone Description: Deep tone, strong lows, low mids

Bartolini Pickups and Electronics are recognized around the world as the standard in guitar and bass guitar tone with the broadest selection to fit almost any instrument and sound. Based in San Luis Obispo, California, Bartolini builds pickups and electronics for some of the most respected luthiers around the world and also supply to service-oriented retailers who offer upgrades and replacement parts.

All Bartolini products are 100% USA manufactured and supported. Bartolini's mission is to offer superior tone for musicians playing stringed instruments worldwide; for all genres of music. Their comprehensive product line of pickups and electronics can be mixed and matched to express the individuality of any player.

Pro Audio Land is proud to be an authorized Bartolini dealer for many years.

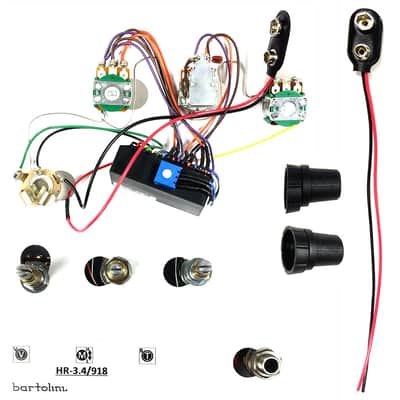

A Pre-Wired harness saves the time and aggravation of wiring your pre-amp and pots into your instrument. They feature Bartolini's industry leading pre-amps and premium audio-quality potentiometers with smooth control and ready for years of rugged use.

Features:

• The HR-3.4/918 uses a 3-band EQ and pre-amp
• One hole for Volume control: Neck Volume/Bridge Volume Stack
• Two holes for Tone control: Treble/Bass Stack – Mid  (w. 2 freq push-pull)

Additional Information

• EQ: 3-band
• Volume Controls: Neck Volume/Bridge Volume Stack
• Tone Controls: Treble/Bass Stack – Mid (w. 2 freq push-pull)
• Accessories: Includes: 2nd battery clip (18V option), wiring instructions, black ring & center knobs for tone stack
