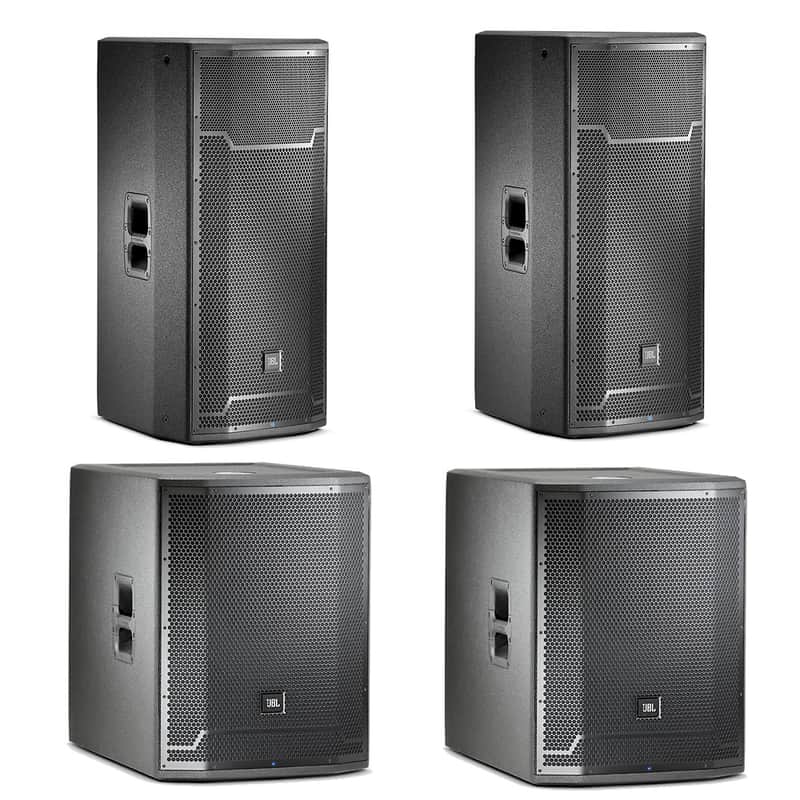

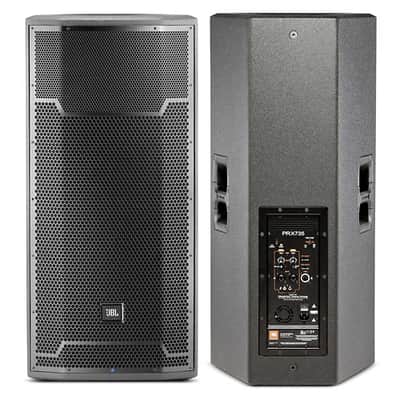

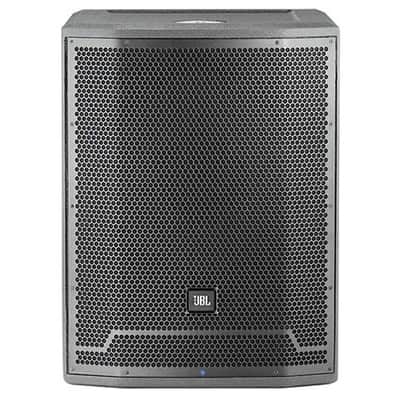

JBL PRX 700 Active DJ PA System PRX718XLF (x2) PRX735 (x2) NEW

The PRX700 Series represent an evolutionary step in the efficient use of amplifier power, rugged durability and enhanced versatility in a self-powered loudspeaker designed from the ground up to perform in the real world of sound reinforcement where challenging audio environments, high ambient noise levels and loud volumes are typical.

They are the first systems to use our patented Differential Drive technology with ferrite drivers featuring high power, wide bandwidth and low distortion. Versatile, scalable, easy-to-transport and set up, the PRX700 Series use JBL's tour tested technology throughout for a lifetime of reliable performance you can trust.

• Power Rating: 1500 W
• Frequency Range (-10 dB):Normal: 35 Hz ﾖ 20 kHz Boost: 34 Hz ﾖ 20 kHz
• Frequency Response (ﾱ3 dB): Normal: 42 Hz ﾖ 20 kHz Boost: 39 Hz ﾖ 20 kHz
• Coverage Pattern: 90ﾰ x 50ﾰ nominal
• Directivity Index (DI): 10.5 dB
• Directivity Factor (Q): 11.2
• Crossover Frequency: 480 Hz, 2.0 kHz
• Maximum SPL: Normal: 136dB Boost: 136dB
• Signal indicators:Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
• Signal: Green LED indicates signal present
• Power/Standby : Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
• Dynamic Control (Input):dbx Type IV limiter circuit
• Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)
• LF Driver: 1 x JBL 275G 380mm (15 in) woofer
• MF Driver: 1 x JBL 196H 165mm (6.5 in) horn-loaded midrange transducer
• HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver
• Enclosure: Trapezoidal, 18 mm, plywood
• Suspension / Mounting: 12 x M10 Suspension Points
• Transport: 2 x integrated handle with injection molded backing cup
• Finish: Obsidian DuraFlex finish
• Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
• Input Connectors: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
• Output Connector: 1 male XLR balanced output
• Dimensions (H x W x D): 952.5 mm x 445.0 mm x 537.97 mm (37.5 in x 17.52 in x 21.18 in)
• Net Weight: 34.9 kg (77 lb)

• Power Rating: 1500 W
• Frequency Range (-10 dB): Main: 42.9 Hz - 19.5 kHz Monitor: 43.6 Hz - 19.3 kHz
• Frequency Response (ﾱ3 dB): Main: 58.1 Hz - 17.2 kHz Monitor: 60.7 Hz - 16.7 kHz
• Coverage Pattern: 90ﾰ x 50ﾰ nominal
• Directivity Index (DI): 10.2 dB
• Directivity Factor (Q): 10.4
• Crossover Frequency: 1.7 kHz
• Maximum SPL: Normal: 136 dB Boost: 136 dB
• Signal indicators: Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
• Signal: Green LED indicates signal present
• Power/Standby : Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
• Dynamic Control (Input): dbx Type IV limiter circuit
• Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)
• LF Driver: 1 x JBL 275G (15 in) woofer
• HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
• Enclosure: Asymmetrical, 18 mm, plywood
• Suspension / Mounting: Dual 36 mm pole socket, 12 x M10 Suspension Points
• Transport: 1 x injection molded handles with backing cup
• Finish: Obsidian DuraFlex finish
• Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
• Input Connectors: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
• Output Connectors: 1 male XLR balanced output
• Dimensions (H x W x D): 714.43 mm x 445.13 mm x 358.71 mm (28.13 in x 17.52 in x 14.12 in)
• Net Weight: 21.6 kg (47.5 lb.)
