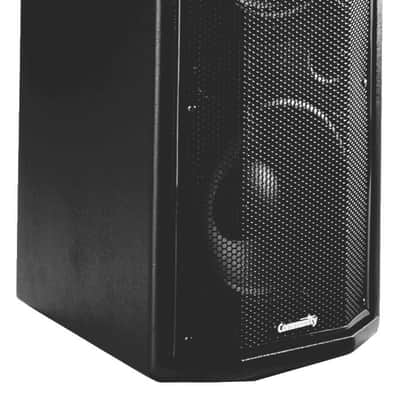

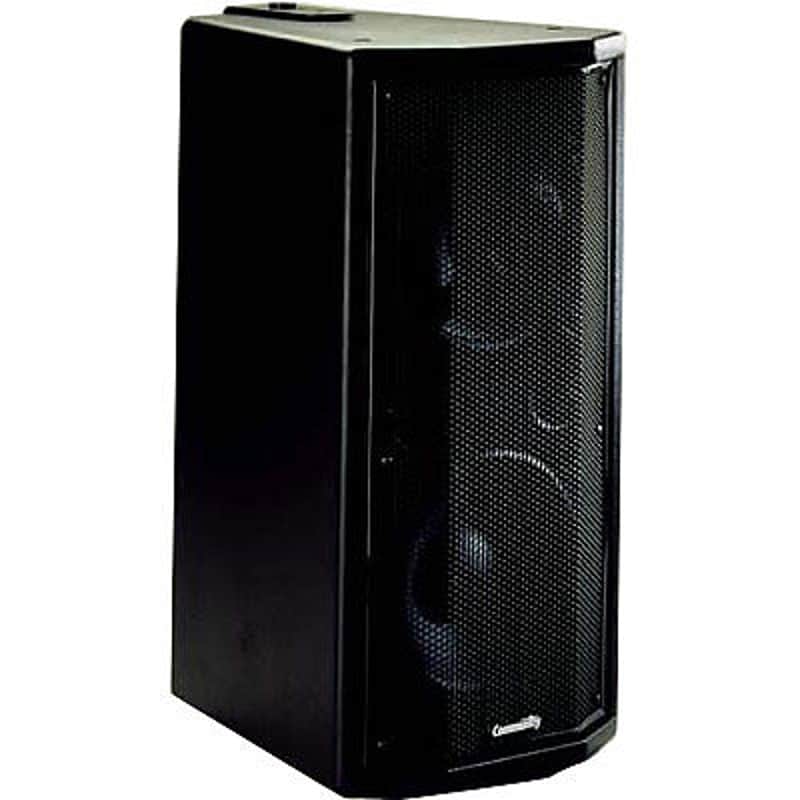

Community CPL-27 Ultra-Compact Full Range Black 2-Way Loudspeaker with Bracket

The CPL27 is an ultra-compact, two-way full-range loudspeaker system with two 8 in. LF drivers and one 1 in. dome HF driver coaxially mounted to the upper LF driver. This direct radiating loudspeaker is engineered for systems where high performance, cost-effectiveness and versatility are needed in a small package.

The ultra-compact CPL loudspeakers are optimized for background / foreground music systems with enhanced announcement capability. Ultra-compact CPL systems have an integral steel mounting yoke and are available in either a white or black finish. They may be ordered with a 70V option that includes a 120 W transformer with taps at 120 W, 60 W, 30 W, and 15 W. Five year limited warranty.

• Features

  • Magnetically shielded for A/V
  • Low "Q" Dispersion
  • Coaxially Mounted HF Driver
  • PowerSenseT DDP
  • Ultra Compact Trapezoidal Enclosure
  • Easy Mounting with Included Yoke



• Specifications

  • Loudspeaker Type: 2-way, Full-range, bass ported, mini system
  • Operating Range: 60 Hz - 20 kHz
  • 60 Hz - 20 kHz (+/-5dB)
  • Max Input Ratings:
  • 200W continuous, 500W Program
  • 28 volts RMS, 63 volts momentary peak
  • 120 / 60 / 30 / 15 watt transformer taps with 70V option
  • Recommended Power Amplifier: 420W to 600W @ 4 Ohms
  • Sensitivity 1W/1m:
  • 86 dB SPL (63Hz - 20 kHz 1/3 octave bands)
  • 85 dB SPL (250 Hz - 4 kHz speech range)
  • Maximum Output: 109 dB SPL / 116 dB SPL (peak)
  • Nominal Impedance: 4 Ohms
  • Min Impedance: 5.4 Ohms @ 170 Hz
  • Nominal -6 dB Beamwidth:
  • 90° H (+15° / -13°, 2 kHz - 8 kHz)
  • 90° V (+19° / -18°, 2 kHz - 8 kHz)
  • Axial Q / DI: 10 / 10, 1kHz - 8 kHz
  • Crossover Frequency: 2 kHz
  • Recommended Signal Processing: 50 Hz high pass filter
  • Drivers: LF (2) 8" cone, magnetically shielded
  • HF (1) 1" dome, magnetically shielded
  • Driver Protection: PowerSenseT DDP
  • Input Connection:
  • (1) NL4 compatible 4 conductor (none with 70V option)
  • (2) terminal barrier strip
  • (5) terminal barrier strip with 70V option
  • Controls: None
  • Enclosure: 19 mm MDF wood, painted (see options)
  • Enclosure Hardware: (1) integral handle
  • Mounting / Rigging Provisions:
  • (6) 1/4-20 rigging points
  • (4) 1/4-20 for stand adapter or mounting bracket
  • Grille: 16 gauge perforated steel (see options)
  • Required Accessories:None
  • Supplied Accessories:
  • (4) Rubber feet
  • (1) Steel yoke bracket
  • Optional Accessories: None
  • Dimensions (without bracket):
  • Height: 19.5 in. / 495 mm
  • Width (front): 9.7 in. / 247 mm
  • Width (rear): 5.6 in. / 143 mm
  • Depth: 12.3 in. / 314 mm
  • Weight: 24.5 lb. / 11.1 kg
  • Shipping Weight: 28 lb. / 12.7 kg
