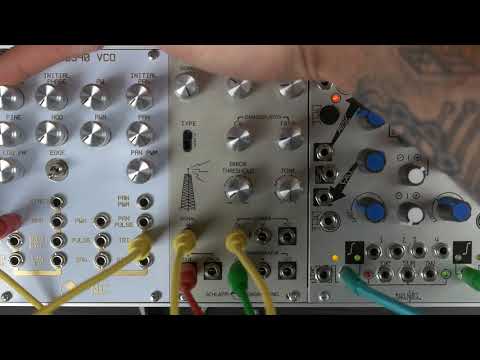

Schlappi Engineering INTERSTELLAR RADIO Eurorack Chaotic Noise and Ring Mod Module

Simulates the process of modulating and demodulating a signal for radio transmission - Perfect for use as chaotic noise source, (non tracking) oscillator, ring mod, or for an extreme distortion effect!
Features:

• Voltage controlled aliasing, distortion, and frequency modulation effects



• Two wide ranging voltage controlled square wave oscillators with individual outputs.


Controls:


• CARRIER oscillator converts input into high frequency pulse train



• DEMODULATOR oscillator inside control loop brings sound back to audio range



• CV applies external voltage control to oscillators or uses input signal as audio rate FM



• Internal oscillators can be replaced with external modulation sources



• TYPE selects demodulation loop type (changes timbre and response)



• ERROR output with threshold control



• TONE control for filtering out the harshest of frequencies



• All analog design


Specifications:

14HP
+12V 40mA
-12V 30mA
