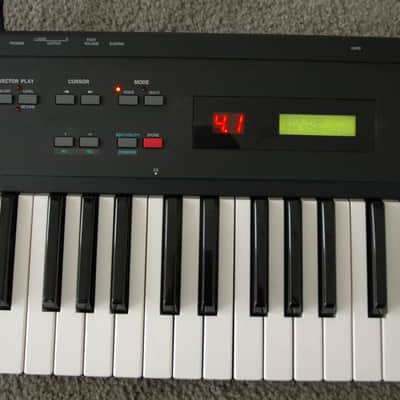

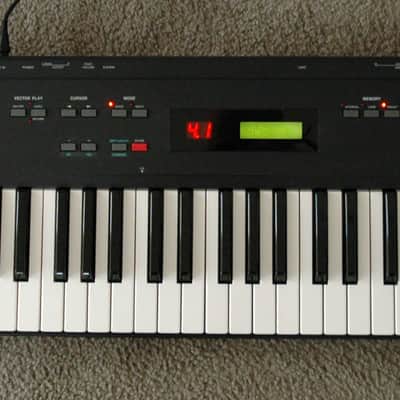

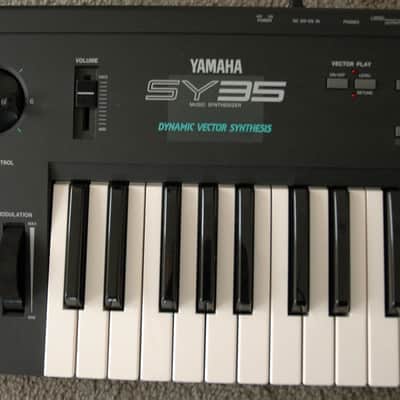

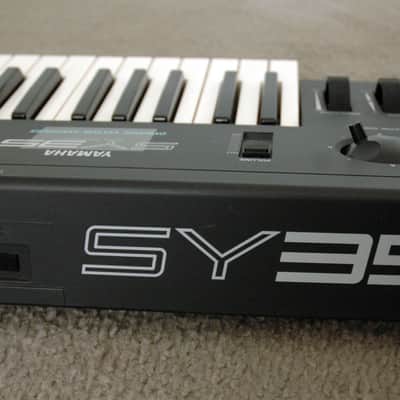

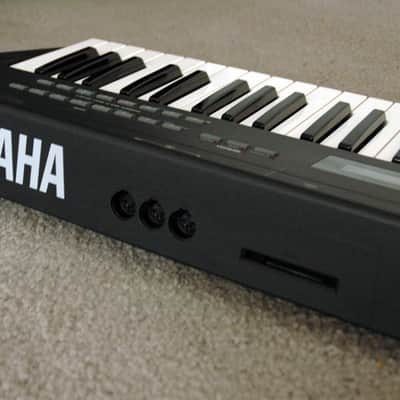

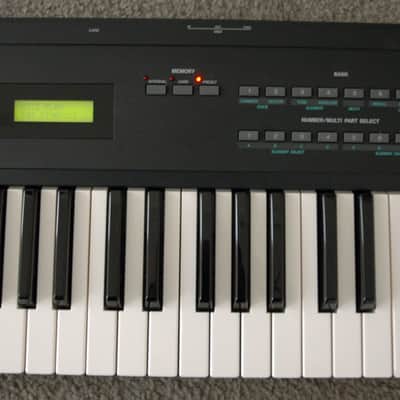

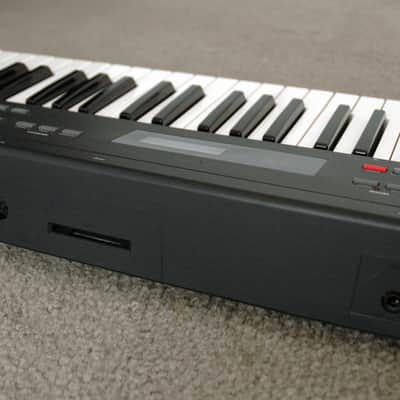

Yamaha SY35 Synthesizer

**THIS KEYBOARD IS BEING SOLD AS-IS**

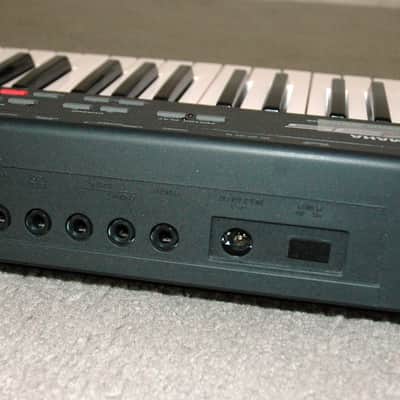

The big issue with this keyboard is that no sound is coming out of the main outs. Sound comes out of the headphone jack and everything else seems to work fine. No dead keys. I wish I knew what I was doing to take it apart and get it working but I'm not so technically inclined. Hopefully it's an easy fix for someone who knows what they're doing.

No power adaptor (requires DC 10V-12V) or anything else included besides the keyboard.

Here's the description of the SY35 from vintagesynth.com:

The Yamaha SY35 is a bit unique in that it is a Vector Synthesis system, combining FM and AWM sample playback voices to create sounds suitable for virtually all kinds of music. It features significantly expanded memory capabilities over the . It has an extremely large database of over 128 AWM sampled sounds (you cannot add more) and around 256 FM waves. Waves and samples are combined and edited with a roller/joystick (the vector wheel). At a time when Yamaha was making the switch from FM synthesis, which ruled their synths of the eighties, to AWM and AWM2 synthesis in the nineties, the SY35 represents a model that was on the cusp, having one foot (or pair of oscillators actually) in each world.

Programming is an extremely tedious affair, as all values are modified via the "-1" and "+1" buttons. But the SY35's sounds are extremely good, providing high-quality sounds such as those found on the , and the . The synth also features an 8-part multi-mode, for easy multitimbral setups. Ultimately, while an extremely difficult synth to program, the SY35 offers a huge amount of capability for a relatively low price tag. Use this synth for epic pads, deep basses, screaming leads, and raging hoovers.

Specs:

Polyphony - 16 voices, 8-Part Multitimbrality Oscillators - 2 FM Operators & 2 (AWM) Digital Acoustic Sample playback oscillators. LFO - 4 LFOs Filter - None VCA - 4 Volume-Only Envelops Sequencer - None Effects - 16 Digital Effects (Delay, Reverb, Reverb/Dist. Combo, etc.) Keyboard - 61 keys (w/ velocity and aftertouch) Memory - 64 preset and 68 user patches, 16 Performances Control - MIDI In/Out/Thu Date Produced - 1992
