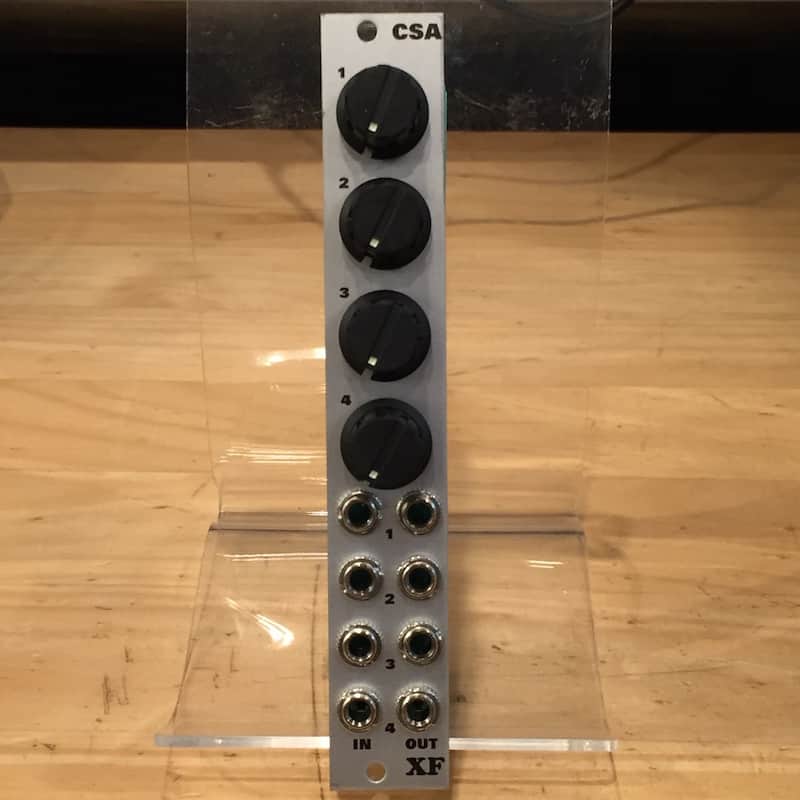

X-Fade Modular CSA

4ch CV Source & Active Attenuator

If you connect only the output of each channel to a CV in such as VCO/VCF and turn the knob, a CV of 0 to + 5 V is output depending on the position of the knob.
This is very useful for manual control of modules with parameters that only have CV In, or for offsetting the pitch of an oscillator with only a fine tune knob, such as Dixie II +.

By plugging into each channel's input, the internal CV source is disconnected and acts as an independent active attenuator.
All four channels are independent.

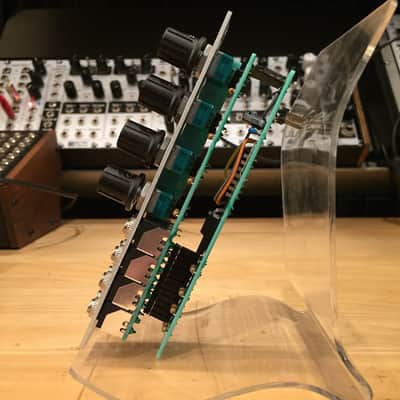

*Since the soldering surface of the Pot on the board is at the limit of the panel size, when mounting the module, be careful not to short-circuit the circuit by touching the adjacent module or the inner surface of the case.
*As this is a full handmade item, please be aware that there may be small scratches or paint baldness on the panel.

4HP  Max Depth:42mm
