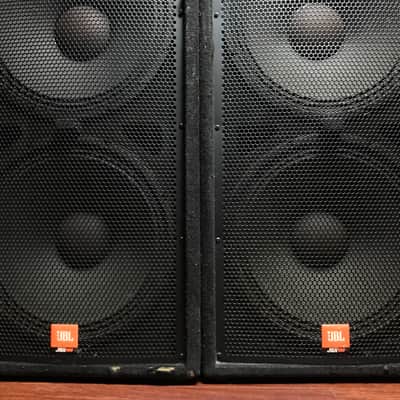

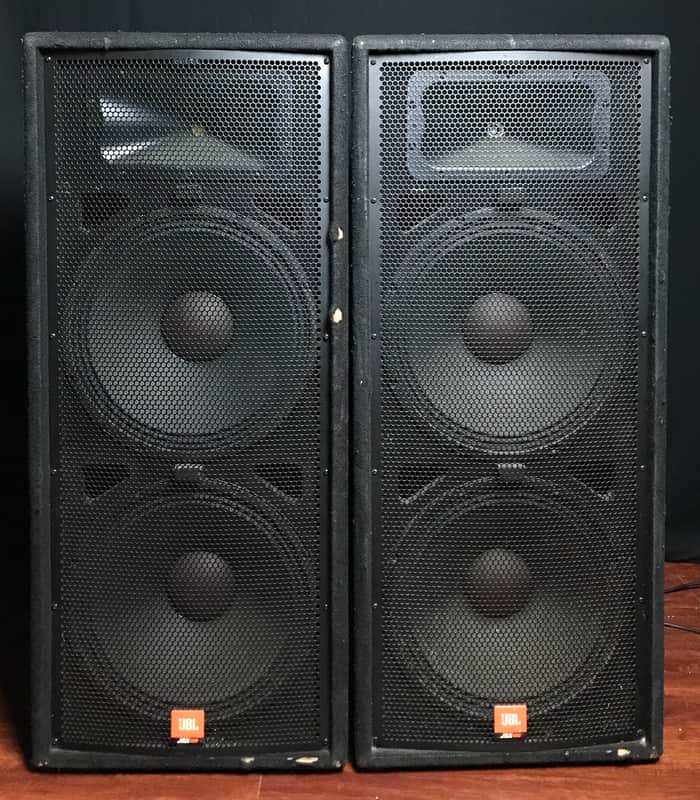

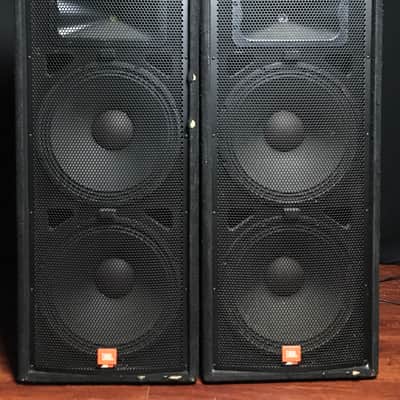

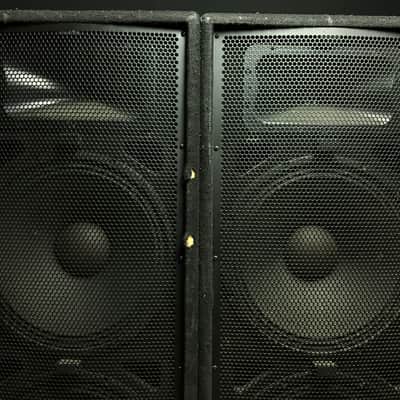

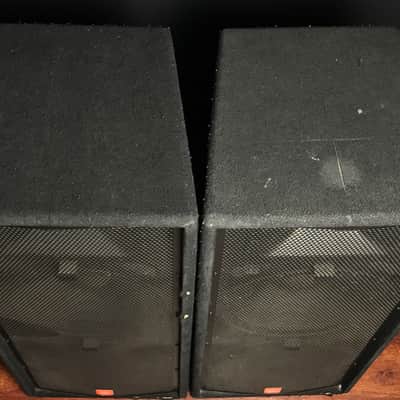

These JBLs work perfectly and sound great. I'm the second owner
and have had them for about 3 years. I've never had an issue with them
and they've always been extremely reliable. There's some obvious wear
since they've been used at many performances because of how dependable
they are. I used them with a QSC PLX1804 power amp and they can really
crank. Please feel free to ask any questions you may have. I will only
offer local pickup and will meet the buyer at an agreed-upon location
within 30 minutes of Kannapolis, NC. Below is a list of features taken
from the manufacturer's website.
FEATURES
SPECIFICATIONS
Power Rating 500 W / 2000 W
Frequency Range 36 Hz - 16 kHz (-10 dB)
Dimensions
(H x W x D) 1099 mm x 464 mm x 432 mm
(43.25 in x 18.25 in x 17 in)
Frequency Response 45 Hz - 12 kHz (±3 dB)
Sensitivity 100 dB SPL (1w/1m)
Nominal Impedance 4 ohms
Recommended Amplifier Power 500 W to 1000 W into 4 ohms
Maximum SPL 133 dB
Nominal Dispersion 90º x 50º
Crossover Frequency 2 kHz
Weight 42.6 kg (94 lb)
High Frequency Driver JBL 2412 1 in exit compression driver mounted on Progressive
Transitionâ„¢ Waveguide
Low Frequency Driver JBL M128 x 2
Input Connectors Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
FEATURES
- Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
- Ferro-fluid cooled compression driver with titanium diaphragm improves high frequency performance as well as system reliability.
- The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
- A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
- Progressive Transitionâ„¢ highfrequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
- The rugged, acoustically superior enclosure is constructedfrom 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
- SonicGuardâ„¢ protects the highfrequency driver from excess power without interrupting the performance.
- Non-resonant, all-steel handles are used.
- Attractive 18-gauge perforated, steel grille protectscomponents from damage.
SPECIFICATIONS
Power Rating 500 W / 2000 W
Frequency Range 36 Hz - 16 kHz (-10 dB)
Dimensions
(H x W x D) 1099 mm x 464 mm x 432 mm
(43.25 in x 18.25 in x 17 in)
Frequency Response 45 Hz - 12 kHz (±3 dB)
Sensitivity 100 dB SPL (1w/1m)
Nominal Impedance 4 ohms
Recommended Amplifier Power 500 W to 1000 W into 4 ohms
Maximum SPL 133 dB
Nominal Dispersion 90º x 50º
Crossover Frequency 2 kHz
Weight 42.6 kg (94 lb)
High Frequency Driver JBL 2412 1 in exit compression driver mounted on Progressive
Transitionâ„¢ Waveguide
Low Frequency Driver JBL M128 x 2
Input Connectors Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
