Panamax MIW-Power-Pro-PFP In-Wall Power Management

Two recessed AC receptacles deliver power to remotely located devices. Enlarged faceplate (4.5" x 4.5") accommodates oversized wall cutouts. Line fault LED to indicate an overvoltage condition with the power to the MIW-POWER -PRO-PFP. Power ON LED indicates power is being supplied to the MIW-POWER-PRO-PFP outlets.

Voltage monitoring Circuit protects equipment against prolonged over voltages by disconnecting the power and reconnecting it when safe power returns.

May be used in conjunction with MIW-DUAL-SIGNAL BAY PFP and signal line modules (sold separately).

3 Year Product Warranty and Limited Lifetime Connected Equipment Protection Policy when properly installed using MIW-DUAL-SIGNAL BAY PFP and appropriate MIW Module (both sold separately).

 Specifications: Content Top Frame
PFPower Logo
MIW-POWER-PRO-PFP
IN-WALL POWER MANAGEMENT

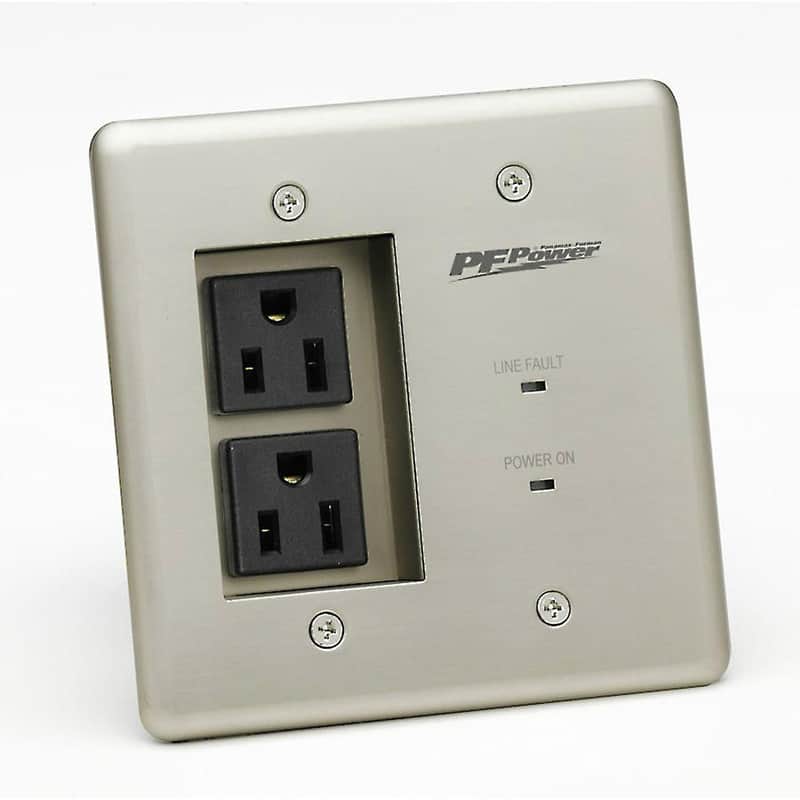

MIW-POWER-PRO-PFP Front Image

International Customers: electronic products are packaged for sale in the US w/ US voltage.

AC Circuit
AC Outlets, Total     2
Line Voltage     120V, 60Hz
Total Current Capacity     15A
UL 1449 Suppression Rating     330V
Protection Modes     L-N, L-G, N-G
Energy Dissipation     546 Joules
Peak Impulse Current     32,500 Amps
Catastrophic Surge Circuit     Yes
Thermal Fusing     Yes
Voltage Monitoring Circuit
Over-voltage Shutoff     142 VAC ± 5 VAC
Design and specifications subject to change without notice due to product improvement
Power Outlet Faceplate
Over-voltage Shutoff     142 VAC ± 5 VAC
Noise Filtration     Level 1
Signal Line Protection     Not included (modules sold seperately).
Shipping Dimensions, Weights & UPC Codes
Single Pack

    Dimensions: 4.5" W x 2" D x 4.5" H
    Weight: 2 lbs.
    UPC: 0 50616 00840 2

Master Pack

    Dimensions: 11" W x 7" D x 11" H
    Quantity: 8
    Weight: 16 lbs.
    UPC: 5 00 50616 00840 7
