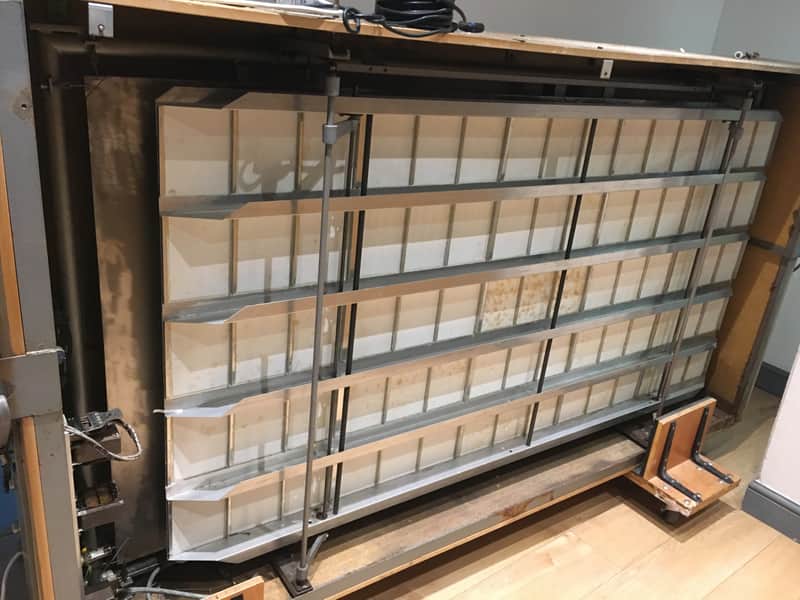

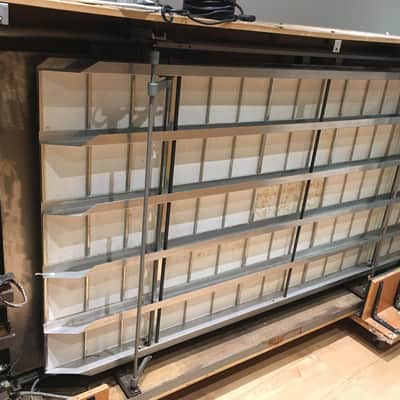

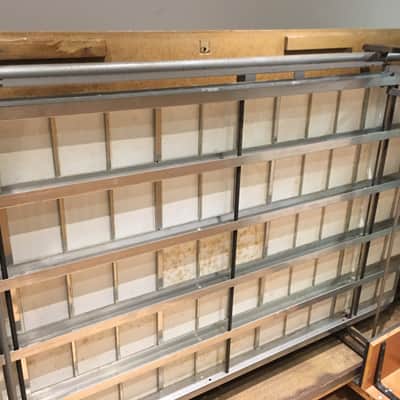

For sale, this beautiful old EMT 140 Plate, currently in East London.

I'm selling this reluctantly as I don't have the space anymore.. It sounds amazing, and had been wired up in my previous studio. No comparison to the plugins, don't let anyone tell you otherwise... When we first plugged it in we were blown away, but it does take up quite a bit of space.

This one is mono but could be wired up for stereo; we were planning on doing this but didn't get around to it.

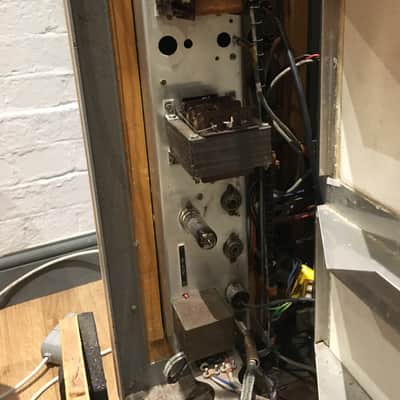

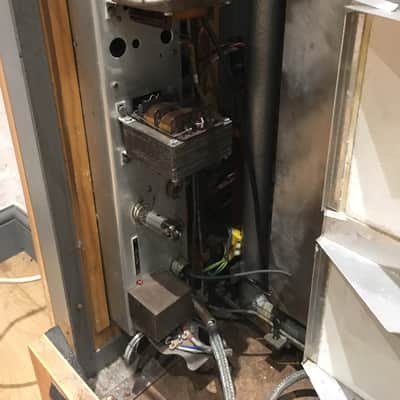

The valve driver is working, but the valve pickup system isn't, but this shouldn't take any decent tech very long to sort out. We had it setup using a standard solid state pickup, as many people do because there's less noise there.. but all of the parts are there for the valve pickup system. There also isn't a motor for the damper, but we actually never changed the decay on it because it sounded so good..!

You will need to pick it up from East London, which would require a van and probably 4 people, because it is heavy. Although it also comes with some castors so you can wheel it, which is a blessing.

There are fewer and fewer of these around these days so get yourself a piece of history..!

Some more info here:
EMT 140 Plate Reverb

The majority of today’s common reverb plugins contain plate reverb settings, the designs of which are primarily based upon the popular Elektromesstechnik (EMT) 140 model plate. Upon its introduction in 1957, the EMT 140 Reverberation Unit quickly garnered popularity, providing a smoother substitute to spring reverb systems, as well as proving more space conscious and malleable than reverb chambers. While the EMT 140 presented a more practical alternative to other reverbs of its era, the advent of digital units created similar convenience advantages in an even more accessible package.

The 1957 production of the EMT plate marked a significant change in recording history, simplifying the process of affecting recorded sound while providing the engineer with a more versatile and customizable interface. Much like today’s convolution reverbs simultaneously provide convenience and complex control to reverb manipulation, the original EMT 140 plate established a consequential alternative to both spring reverbs and chambers.

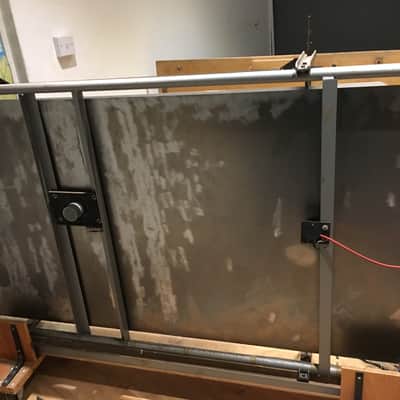

Despite its roughly 600 pound weight, the EMT 140 plate provided a smaller solution to large echo rooms. Additionally, a remote controlled damping pad system allowed the engineer to adjust the reverb time, offering substantially more control than possible with a traditional chamber. The sheet metal plate is suspended from its frame by springs, a transducer mounted at the center of the plate drives movement, and returns consist of pickups mounted on the plate. While the 140 was originally available only in mono, EMT released a stereo model in 1961.

Though more convenient than its predecessors, the EMT 140 plate still required substantial storage space, and EMT’s own foray into digital reverb, most successfully with the EMT 250 in 1976, illustrated growing demand for easily controlled and versatile multi-effects units. Such early digital systems, including the ubiquitous Lexicon 480L, contained plate programs loosely based upon the original EMT 140. However, the sonic qualities of the 140 plate have been more accurately reproduced with modern modeling and convolution reverb plugins.

Like with any emulator plugins, the selection of gear from which to gather measurements greatly affects the outcome, and ultimately success, of any digital recreation. Those familiar with the EMT 140 plates will undoubtedly form opinions based on the individual plates with which they are familiar. Like any other classic gear, including the popular 1176 and LA2A, age, maintenance, and modifications factor into the sonic character of an individual piece of equipment. For this reason, Universal Audio based its EMT 140 plugin on several different plates from The Plant Studios, and Audio Ease provides impulse responses from multiple EMT plates housed in renowned recording facilities.

For designers and engineers seeking to add the sound of the EMT 140 plate to their collection, the Altiverb plate 140 impulse responses and the UAD EMT 140 modeling plugin offer the convenience and versatility of modern signal processing with the sonic personality of EMT’s original 140 reverberation

Reverb Buyer Protection

Reverb has your back if your item is lost, damaged, or doesn't match its description. Simply report any issues within 7 days and we'll help you get a full refund.Learn more about Reverb Buyer Protection.

Listed6 years ago
ConditionGood (Used)
Good condition items function properly but may exhibit some wear and tear.Learn more
Brand
Model
  • 140
Year
  • 1960ish
Made In
  • Germany
