ARACOM Power Attenuator PRX150-Pro for Tube Guitar Amps

ARACOM Power Attenuator PRX150-Pro for tube guitar amps

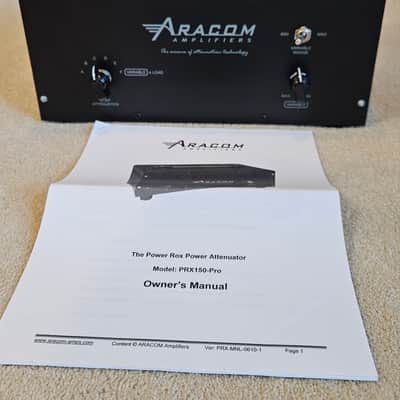

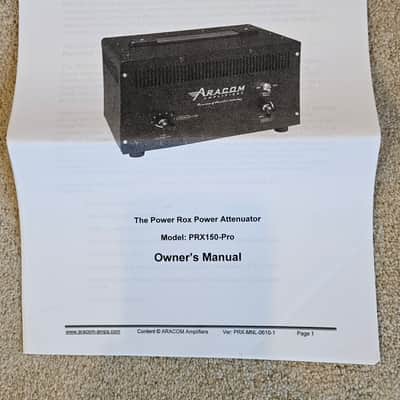

MINT/NEW-IN-BOX condition: Works perfectly - no issues; Includes attenuator and manual

Product Highlights (from the product manual):

• Proprietary SRT Technology
• 40dB of overall attenuation
• Six levels of step attenuation, plus a continuously variable attenuation control
• 150 watt power rating
• Independent input and output impedance selector switches (2, 4, 8, 16 ohm)
• Features a Load Mode and is equipped with a Line Out Jack/Line Out Level Control
• Handwired in the USA

Overview (from the product manual):

The PRX150-Pro is a "boutique" product that is handcrafted in the USA. Each PRX150-Pro power attenuator is carefully, handwired, one at time by craftsmen that are concerned more about quality rather than quantity. The PRX150-Pro utilizes high end components, including those that are customized specifically for the Power Rox's advanced attenuation technology. The PRX150-Pro is designed to be "Road Ready" with its heavy duty, ventilated, aluminum enclosure.

While running a highly overdriven tube amp into the PRX150-Pro is a popular use for it, players will also find the PRX150-Pro very useful in getting more power tube involvement in their cleaner tones, which can add depth to their gritty clean tones and a greater purity to their lightly overdriven tones, while still maintaining the desired volume. You probably prefer the tone of your amp when the volume is set to a high enough level that allows the power tubes to saturate and provide a lightly overdriven clean tone or grinding tone. However, the volume level at this point is often too loud for the situation. This is a perfect application for the highly transparent PRX150-Pro, since it does not color the sound, or reduce bandwidth, the guitarist can maintain the clarity of the desired tone, while adjusting the overall volume as desired.

The PRX150-Pro is a power attenuator designed to be used with tube amplifiers and it allows you to achieve the much desired "fully cranked up" tone from your tube amp, but at more practical volume levels. Utilizing its unique and innovative "Speaker Resonance Thru" (SRT) technology, the PRX150-Pro allows the speaker to fully maintain its natural reactance. As a result, the PRX150-Pro allows your amplifier's original, "cranked up" tone and dynamics to remain highly transparent, but at reduced volume levels.

Features and Specifications (from the product manual):

• 40dB of overall attenuation (Attenuates 150 watts down to .015 watt).
• Rotary Switch provides (6) Step Attenuation Levels, plus the Variable Mode allows continuous variable control of "bedroom" level adjustment.
• The Dual Mode Variable Attenuation control provides two attenuation ranges, which allows continuous variable control of "bedroom" level adjustment: Minimum Variable Attenuation mode = 16 to 27dB of attenuation; Maximum Variable Attenuation mode = 27 to 40dB of attenuation
• 150 watt (continuous average) power rating
• Independent Input Impedance Switch: 2, 4, 8, 16 ohm
• Independent Output Impedance Switch: 2, 4, 8, 16 ohm
• Attenuator Bypass Switch
• Load Mode
• Line Out with Level Control: Connector: 1/4" phone jack (unbalanced, negative ground) The Line output Ievel can be adjusted up to approximately 1% of the amplifier's output power (-20dB)
• 2 Speaker Jacks (wired in parallel)
• Passive design, does not require AC power

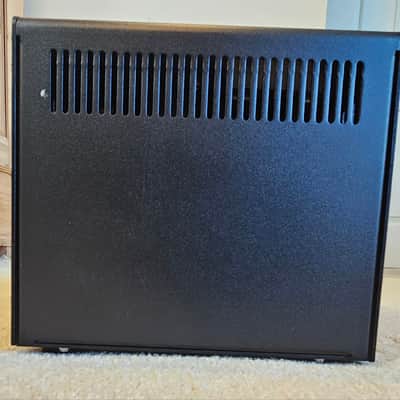

• Rugged, black anodized aluminum housing
• Heavy duty, steel reinforced handle
• Handwired and Handcrafted in the USA
• Weight: 17 lbs (7.7kg)
• Dimensions: 13"w x 7"h x 8"d (8" tall including feet and handle), 33cm x 17.8cm x 20.3cm
