New In Box - Never Used

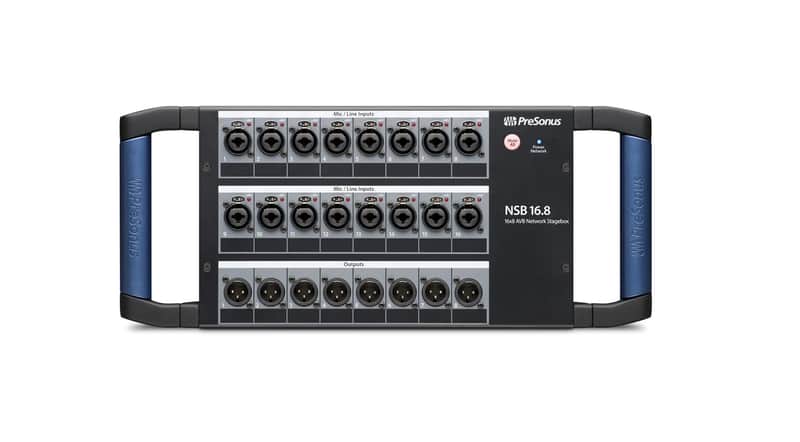

Get A Rugged And Road Ready Stage Box With The PreSonus NSB 16.8 16x8 AVB-Networked Stage Box

Designed to work seamlessly with PreSonus StudioLive Series III mixers, the PreSonus NSB 16.8 stage box offers 16 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios. You also get 16 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software. All eight outputs employ locking XLR jacks. A built in 2-port AVB switch lets you daisy-chain multiple units. A rugged steel chassis with sturdy handles and a stage box form factor allow the NSB 16.8 to sit well on the stage and survive the rigors of the road. The unit can be rack mounted with an optional rack-ear kit.

AVB-enabled stage box; compatible with PreSonus StudioLive Series III mixers; remote-controlled XMAX Class A preamps; gain compensation for shared input scenarios; locking combo mic/line inputs and locking XLR outputs; line inputs can be remote controlled from a StudioLive Series III console and from free PreSonus UC Surface software; built in 2-port AVB switch for chaining multiple units.

• Rugged stage box enclosure
• 8 locking, remote controllable combo mic/line inputs
• 16 remote-controllable XMAX preamps
• Gain compensation for shared inputs
• 8 locking XLR line outputs
• 2 AVB ports with locking XLR Ethernet jacks
• 32x8 AVB (16 direct input channels + 16 gain-compensated input channels)
• Mute All button
• Locking IEC power jack
• +48V indicators
• Easy setup and control from StudioLive Series III consoles and from free PreSonus UC Surface software
• Optional rack ears

SPECIFICATIONS

Analog Input/Output

• Locking, remote controllable combo mic/line inputs
• 16 remote-controllable XMAX preamps
• Gain compensation for shared inputs
• 8 locking XLR line outputs

Meters, Controls, and Processing

• Mute All button
• +48V indicators
• Easy setup and control from StudioLive Series III consoles and UC Surface

Digital

• 32x8 AVB (16 direct input channels + 16 gain-compensated input channels)
• 2 AVB ports with locking XLR Ethernet jacks
• Actively Integrated Software
• Easy setup and control from PreSonus UC Surface touch control software for Mac, Windows, iPad, and Android, available free from Apple App Store and Google Play

Power

• Locking IEC power jack

Physical

• Rugged stage box enclosure
• Optional rack ears
• Compatible with stage pockets from Ace Backstage
