IMPORTANT!!!
US customers, please contact us before ordering from us.

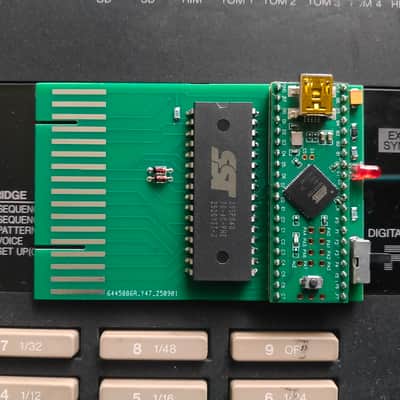

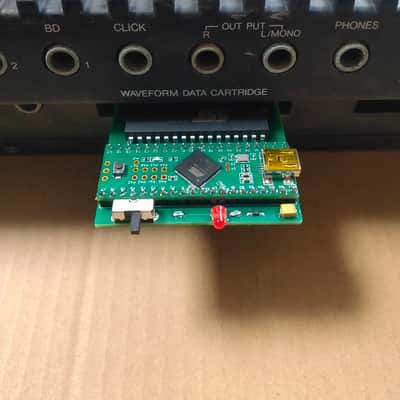

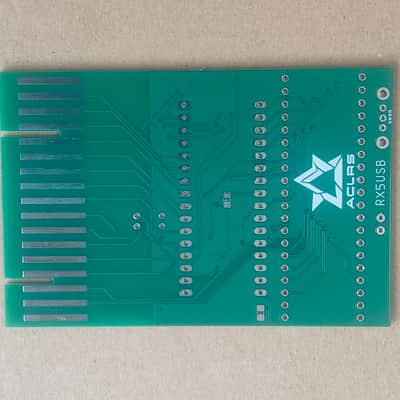

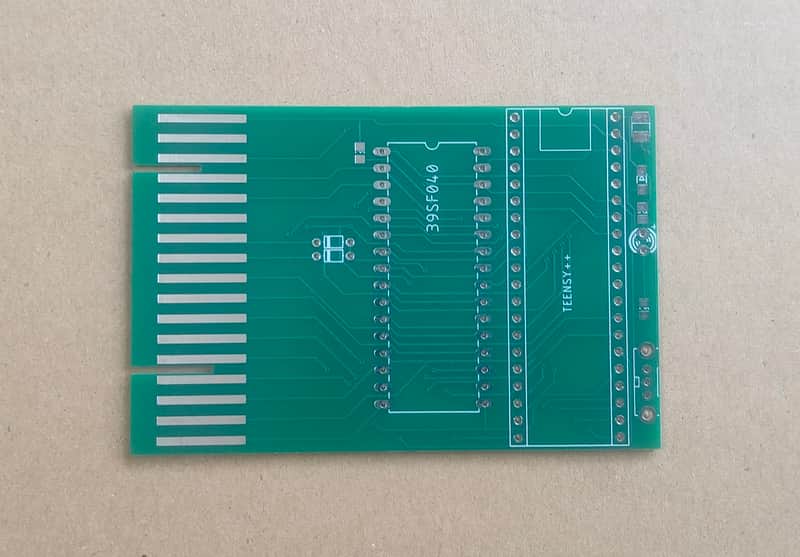

PCB for building a RX5USB programmable cartridge.
This is not a fully built RX5USB cartridge but ONLY the PCB for you to build the cartridge by yourself.
Soldering skills are required and therefore please attempt this DIY project at YOUR OWN RISKS.

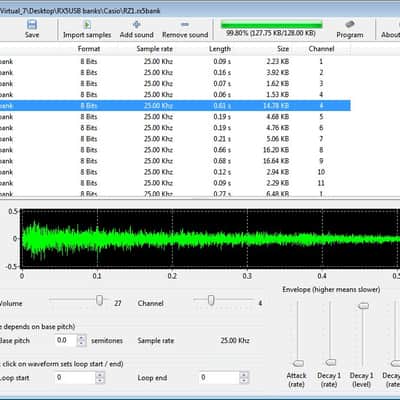

We'll provide you with a link to download the DIY build guide with the BOM as well as the editor software, our free banks (among them the complete original Yamaha WRC collection) and the user manual (English).
The editor software works on Windows OS only.
It is known to be working on Windows XP up to Windows 11.
For Mac users, it is possible to use the software on a virtual Windows machine in Virtualbox.
In our workshop, we could test and have the cartridge recognize on Windows XP, Windows 7 (64bit) and Windows 11 as well as virtual Windows XP and Windows 7 (64bit) machines in Virtualbox on a Macintosh computer.
Here is the list of the free banks you can download from us:
Yamaha WRC-01
Yamaha WRC-02
Yamaha WRC-03
Yamaha WRC-04
Linn Linndrum/LM-1
Oberheim DMX/DX
Roland TR-808
Roland TR-909
Roland TR-707
Roland TR-727
Roland TR-606
Roland CR-8000
Roland CR-78
E-mu Drumulator
Casio RZ-1
Sequential Drumtraks/TOM
Boss DRP series
Boss PC-2
Regarding the banks:
The banks we provide are for example/demo purposes.
Some of them are the old Gligli and Pharmasonic banks.
They might not be to pro standards and were not meant to be.
For quality sounds, we recommend to use RX5USB for what it was made for in the 1st place: create your own banks.
The RX5USB cartridge can contain the data of 2 ROM cartridges.
In other words, it's like having 2 cartridges in 1.
2 for the price of one...
If you are not interested in the programmable features of RX5USB and are just looking for the original WRC banks, we recommend that you check out our RX5ROM-WRC cartridge also available for sale on Reverb.
Note:
ACLRS is not affiliated in any way to the brands and names mentioned above.
Any question or support request regarding those brands and products will be ignored.
Items are subject to change without prior notice.
