Pieńków, Poland
About this listing

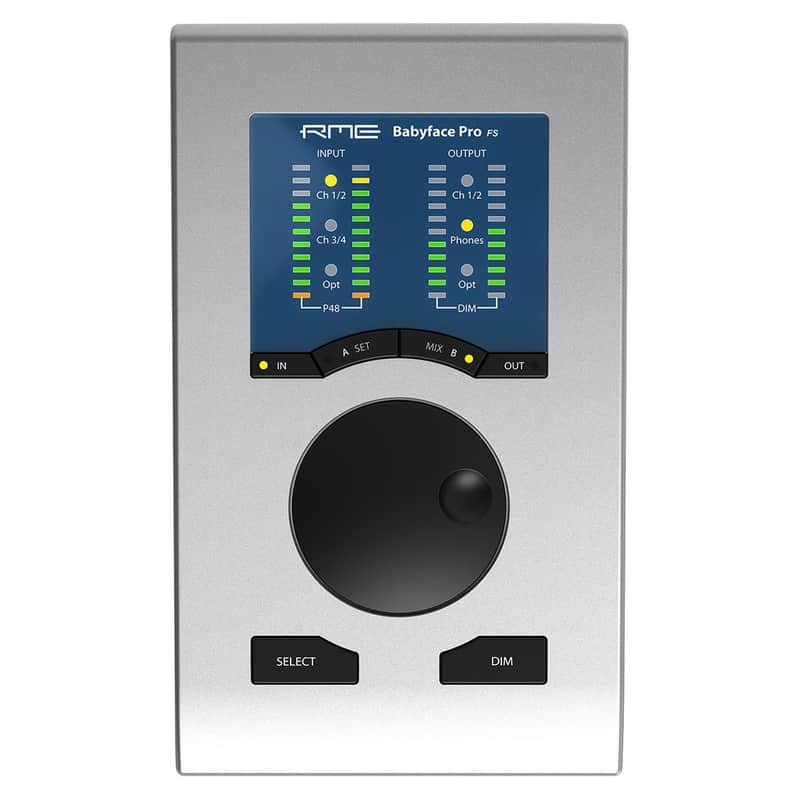

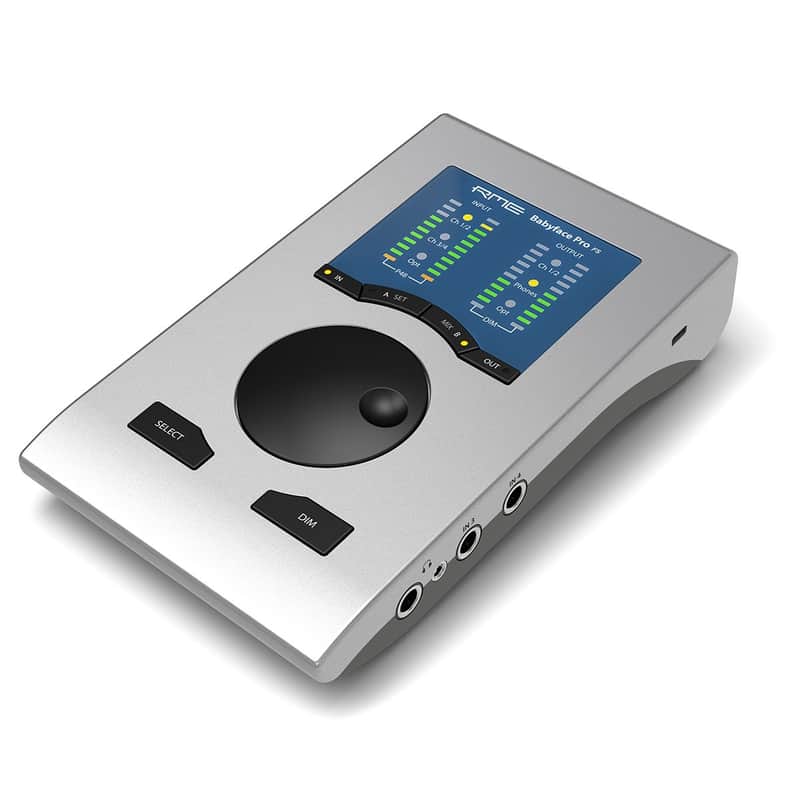

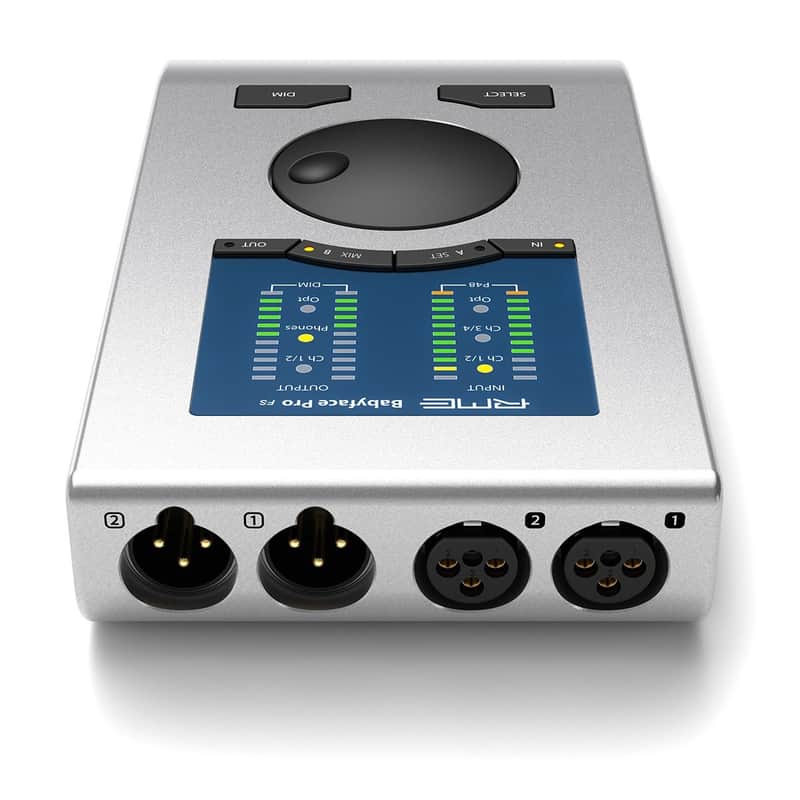

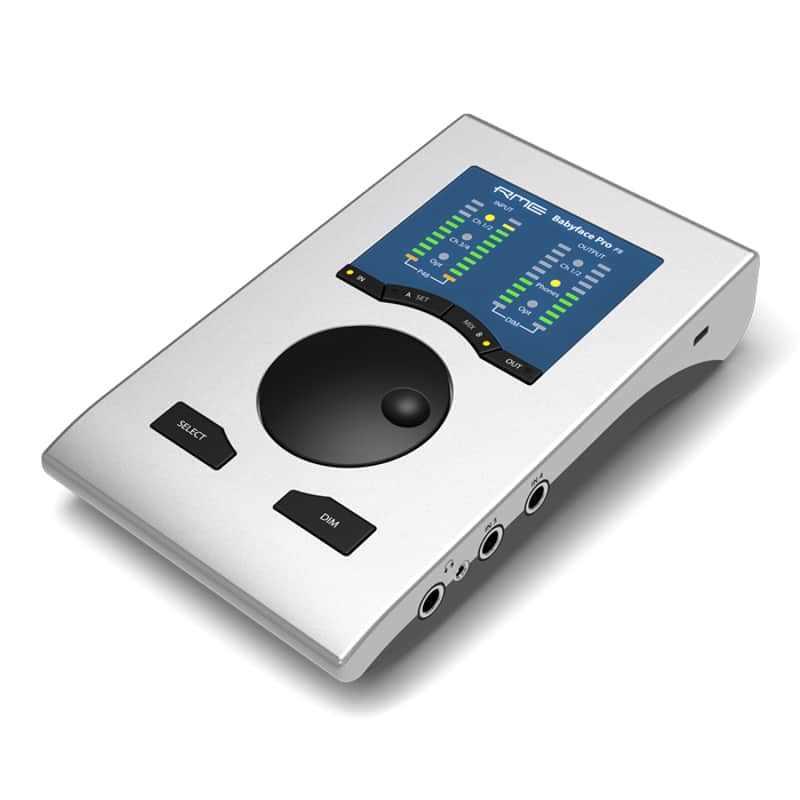

Specs Babyface Pro FS Analog AD, Microphone/Line 1-2Input: XLR, electronically balancedInput impedance balanced: 2 kOhm, 5.2 kOhm with PADInput impedance unbalanced: 1 kOhm, 2.6 kOhm with PADSignal to Noise ratio (SNR): 113,7 dB RMS unweighted, 117 dBAFrequency response @ 44.1 kHz, -0.1 dB: 18 Hz – 20.8 kHzFrequency response @ 96 kHz, -0.5 dB: 7 Hz – 45.8 kHzFrequency response @ 192 kHz, -1 dB: 5 Hz – 88 kHzWith PAD active : -0.1 dB 8 Hz, -0.5 dB < 4 Hz, -1 dB < 3 HzTHD: < -112 dB, < 0.00024 %THD+N: < -108 dB, < 0.00035 %THD @ 30 dB Gain: < -115 dB, < 0.00016 %THD+N @ 30 dB Gain: < -100 dB, < 0.001 %Channel separation: > 110 dBGain range: -11 dB up to +65 dBMaximum input level XLR, Gain 0 dB: +8 dBu, PAD +19 dBuMaximum input level XLR, Gain 65 dB: -57 dBu, PAD -46 dBu AD, Line/Instrument In 3-4 As Microphone/Line 1-2, but:Input: 6.3 mm TS jack, unbalancedInput impedance: 1 MOhmSignal to Noise ratio (SNR): 116 dB RMS unweighted, 120 dBAFrequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.8 kHzFrequency response @ 96 kHz, -0.5 dB: < 3 Hz – 45.8 kHzFrequency response @ 192 kHz, -1 dB: < 2 Hz – 92 kHzMaximum input level @+4 dBu, Gain 0 dB: +13 dBuMaximum input level @-10 dBV, Gain 9 dB: -5 dBuDA, Line Out 1-2Dynamic range (DR): 115 dB RMS unweighted, 118 dBAFrequency response @ 44.1 kHz, -0.5 dB: 0 Hz – 20.8 kHzFrequency response @ 96 kHz, -0.5 dB: 0 Hz – 45 kHzFrequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHzTHD: - 106 dB, 0.0005 %THD+N: -102 dB, 0.0008 %Channel separation: > 110 dBOutput: XLR balancedOutput impedance: 300 Ohm balanced, 150 Ohm unbalancedOutput level @ 0 dBFS: Balanced +19 / +4 dBu, unbalanced +13 / -2 dBuDC @ 0 dBFS: 6.35mm 4.8 V, 3.5mm 2.4 V, XLR bal. 9.6 V DA, Phones 3/4 AS DA Line Out, but:Output: 6.3 mm TRS jack, unbalancedOutput impedance: 10 OhmOutput level at 0 dBFS, 1 kOhm load: +13 dBuMax power @ 0.1% THD: 60 mWSignal to Noise ratio (SNR): 114.8 dB RMS unweighted, 118 dBANoise level: -101.8 dBuOutput: 3.5 mm TRS jack, unbalancedOutput impedance: 0.1 OhmOutput level at 0 dBFS, 1 kOhm load: +7 dBuMax power @ 0.1% THD: 90 mWSignal to Noise ratio (SNR): 114 dB RMS unweighted, 117 dBANoise level: -107 dBu MIDI 1 x MIDI I/O via breakout cable with 2 x 5-pin DIN jacksGalvanically isolated by optocoupled inputHi-speed mode: Jitter and response time typically below 1 msSeparate 128 byte FIFOs for input and output 25.3 Digital Clocks: Internal, ADAT In, SPDIF InJitter suppression of external clocks: > 50 dB (2.4 kHz)Effective clock jitter influence on AD and DA conversion: near zeroPLL ensures zero dropout, even at more than 100 ns jitterDigital Bitclock PLL for trouble-free varispeed ADAT operationSupported sample rates: 28 kHz up to 200 kHzDigital Inputs ADAT Optical1 x TOSLINKStandard: 8 channels 24 bit, up to 48 kHzDouble Speed (S/MUX): 4 channels 24 bit 96 kHzQuad Speed (S/MUX4) : 2 channels 24 bit 192 kHzBitclock PLL ensures perfect synchronisation even in varispeed operationLock Range: 31.5 kHz – 50 kHzJitter suppression: > 50 dB (2.4 kHz)SPDIF optical1 x optical, according to IEC 60958Accepts Consumer and Professional formatLock Range: 27 kHz – 200 kHzJitter suppression: > 50 dB (2.4 kHz)Digital Outputs ADAT optical1 x TOSLINKStandard: 8 channels 24 bit, up to 48 kHzDouble Speed (S/MUX): 4 channels 24 bit 96 kHzQuad Speed (S/MUX4) : 2 channels 24 bit 192 kHzSPDIF optical1 x optical, according to IEC 60958Format Consumer (SPDIF) according to IEC 60958Sample rate 28 kHz up to 200 kHz General Power supply: USB bus power or external power supplyIdle power consumption: 2.8 WattsTypical power consumption: 3.7 WattsMax. power consumption: 5.4 WattsCurrent at 5 V bus power operation: 700 mA (3.7 Watts)Current at 12 V external power: 313 mA (3.7 Watts)Dimensions (WxHxD): 108 x 35 x 181 mm (4.25" x 1.4" x 7.1")Weight: 680 g ( 1.5 lbs)Temperature range: +5° up to +50° Celsius (41° F up to 122°F)Relative humidity: < 75%, non condensing
Pricezł3,941.02
Free Shipping
Free Shipping
from Pieńków, Poland
