Meridian 551

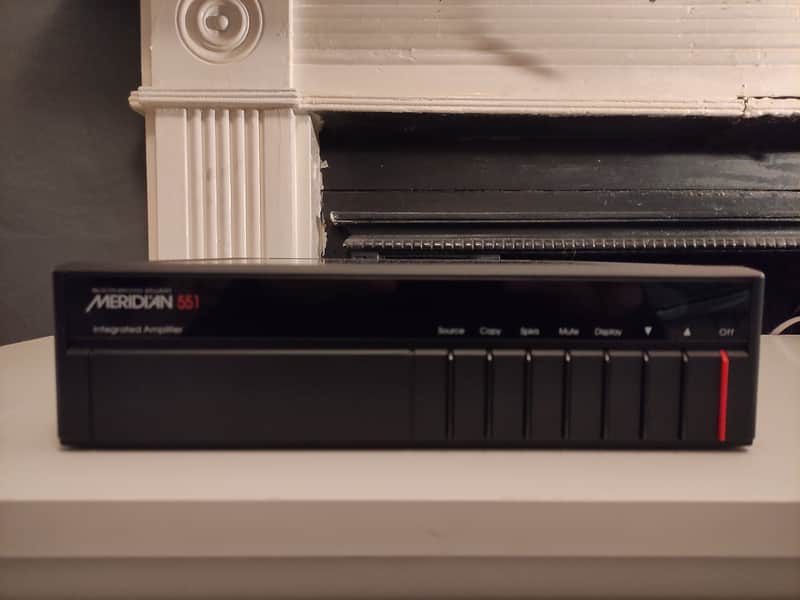

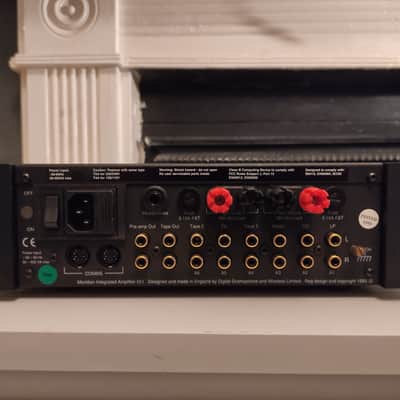

Excellent (closer to mint) condition Meridian 551 with manuals remote and phono stage.

he Meridian 551 Integrated Amplifier uses a dual-mono construction similar to the 556 and 557 Stereo Power Amplifiers but includes a high-quality preamplifier similar to the 501. The preamplifier provides six audio inputs, each of which can be individually adjusted for sensitivity, and identified on the four-character alphanumeric display.

A very high quality MC or MM phono stage is available as an option for the dedicated LP input. The power amplifier uses a unique feedback topology and precision local error correction system. It is designed and constructed in dual mono format, including a massive twin wound toroidal transformer. A separate headphone amplifier and a speaker on/off facility allow you to enjoy music without disturbing others. Technical Specification Distortion: Less than 0.05% Signal/Noise: Less than –90dB for high-level analogue inputs. Less than –70dB for MM input. Less than –60dB for MC input. MM option: Sensitivity adjustable 0.5 – 3mV for 5cm/s @ 1kHz. Overload point 47mV @ 1kHz. Cartridge load 47k Ohms 100pF. MC option: Sensitivity adjustable 38 – 210µV for 5cm/s @ 1kHz. Cartridge load 220 Ohms 10nF. Inputs: 5 phono inputs, sensitivity adjustable 27 – 150mV. Input impedance 20k. Outputs: 2 outputs 55W per channel into 8 Ohms, 80W per channel into 4 ohms. Volume control 99 steps of 1dB Tape output: 1.5V Headphone: 2V maximum output. Comms: Two 5-pin 240° DIN sockets, RS232 interface. Construction: Black textured enamel and glass finish. Side heatsinks from black painted aluminium. Dimensions: 88mm (3.46in) H, 321mm (12.64) W, 332mm (13.07) D. Weight 10kg (20lbs) Controls: Front-panel controls for Source, Copy, Spkrs, Mute, Display, Volume up/down, Off. Front Display: 4-character dot matrix LED display.
