If
there’s one style of preamp that professional engineers would
unanimously agree has defined the tone of pop/rock records for decades,
it would most definitely be the venerable '73-style of mic pre.
'73-style preamps have been massively used in recording and live
applications for many years and are still considered to be the “Holy
Grail” of preamp choices today. The Warm Audio “WA73 Family” consists of
single and dual channel '73-style preamps (with & w/out EQ), that

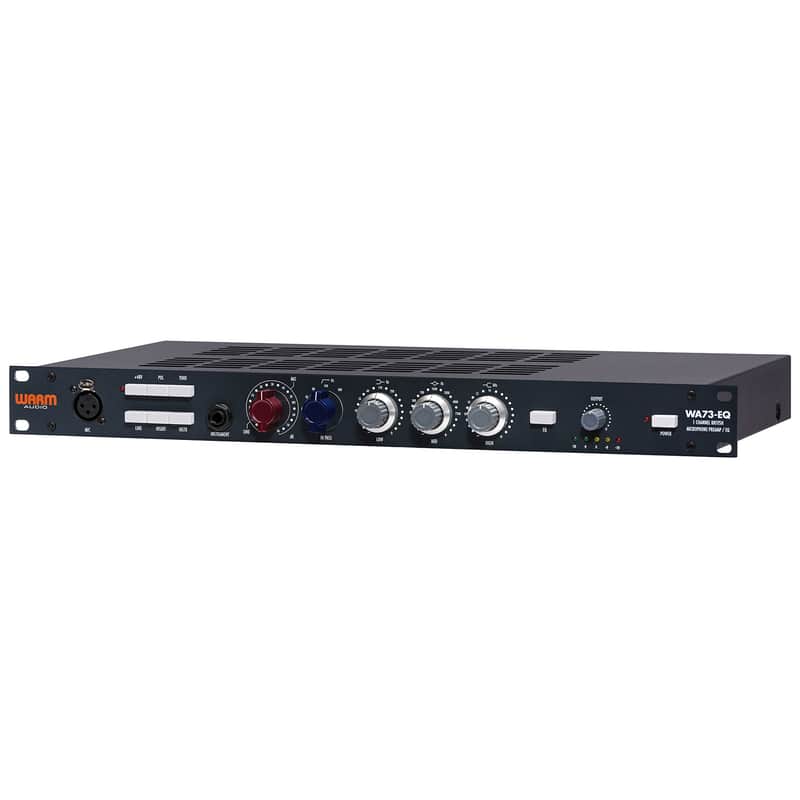

each pay careful homage to British audio history.When we at Warm
Audio decided to release the WA73-EQ it was imperative that it met
vintage expectation in both design and performance. The tone and sweet
character that vintage '73-style mic preamps impart is so unique and
familiar, that we had only the pure desire to release sonically accurate
reproductions. After years of R&D, careful reverse-engineering, and
countless hours of auditioning, the WA73-EQ was born!The WA73-EQ
is a “Desert Island” boutique preamp, but it can also be classified as a
studio and live work-horse. Classic '73-style preamps are known for
being versatile tools that work with all kinds of microphones from
Condenser, to Dynamic, to Ribbon. The WA73-EQ equally shines on all
types of microphones and sources including; vocals, acoustic/electric
guitars, bass, drums, percussion, orchestras, keyboards, and even as a
tone shaping tool to run partial or complete mixes through. With 80dB of
gain and a fully discrete Carnhill Transformer balanced signal path,
there’s no recording, mixing or engineering task that the WA73-EQ can’t
handle.
Technical Specification Single Channel, Class A, '73-style British Microphone Preamp with EQ UK made Carnhill Transformers UK made - Blore Edwards EQ dual-concentric switch potentiometers Hand Wired, hand assembled 80dB of gain - resistor stepped gain switch Fully discrete TONE button - Changes input transformer impedance for varying tone Polarity switch 48v phantom power Inductor based 3 band EQ Low Band Boost/Cut - 35, 60, 110, 220 Hz Mid Band Boost/Cut - 360, 700, 1600, 3200, 4800, 7200 Hz High Band Boost/Cut - 10, 12, 16 kHz Additional high band frequency EQ points added (compared to vintage 1073) 4 position inductor based hipass filter - 50, 80, 160, 300 Hz XLR mic inputs (front & back) Line level TRS input TS Send/Receive insert jacks XLR & TRS line level outputs Direct In, instrument input Output control Led level indication Freq response 20Hz - 20kHz +/-.5 dB 19" Rack Mountable Internal IEC 115v/230v power inlet
Pricezł3,808.18
