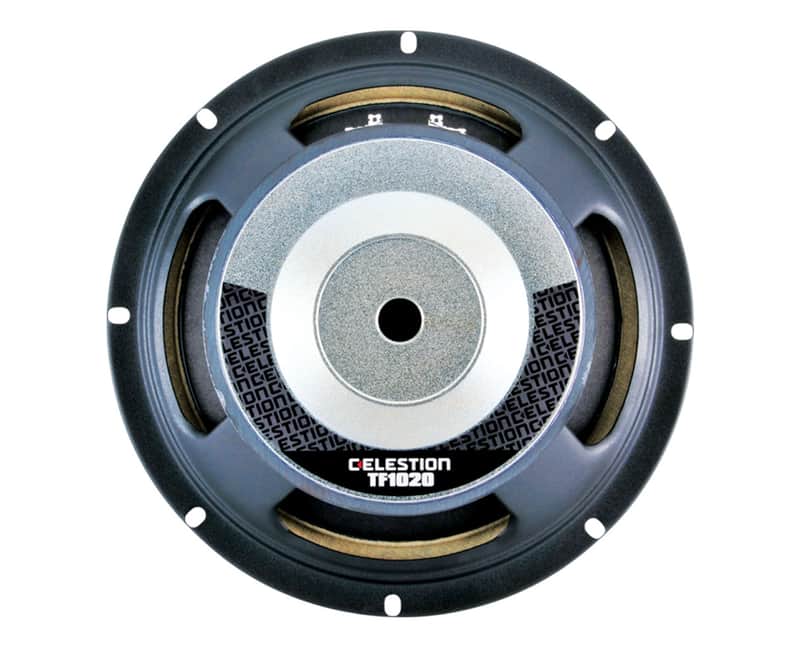

Celestion TF1020 10" 300-Watt 8ohm LF Loudspeaker

Brooklyn, NY, United States

About this listing

10" Replacement Speaker (8-ohm)Features Nominal diameter : 254mm / 10in Power rating : 150W Continuous power rating : 300W EIA power rating : 250W Rated impedance : 8O Sensitivity : 97dB Frequency range : 60-5500Hz Chassis type : Pressed steel Magnet type : Ferrite Voice coil diameter : 50mm / 2in Voice coil material : Round copper Former material : Polyimide Cone material : Kevlar loaded paper Surround material : Cloth-sealed Suspension : Single Gap height (Hg) : 8mm / 0.31in VC winding height (Hvc) : 12mm / 0.47in Additional impedances : 4O Parameters Sd : 346.36cm2 / 53.69in2 Fs : 69.40Hz Mms : 31.10g / 1.10oz Qms : 2.454 Qes : 0.372 Qts : 0.323 Re : 5.45O Vas : 28.75l / 1.02ft3 BI : 14.10Tm Cms : 0.17mm/N Le (at 1kHz) : 0.60mH Xmax : 4mm / 0.16in Mounting Information Overall diameter : 256mm / 10.08in Overall depth : 110mm / 4.3in Cut-out diameter : 229mm / 9.02in Mounting hole dimensions : 8x6mm / 0.31x0.24in Number of mounting holes : 4 Mounting hole PCD : 245mm / 9.65in Power rating : Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power is calculated on minimum impedance. Loudspeaker tested in free air. Continuous power rating : Defined as 3dB greater than the AES rating. Sensitivity : Measured on axis at 1W, 1m in 2p anechoic environment. Parameters : Measured after unit subjected to pre-conditioning signal. Xmax : 0.5(Hvc-Hg) + 0.25Hg

View Full Listing

$84.50

Free Shipping
