Iconic Pioneer CT-F650 Stereo Cassette Deck - FULLY SERVICED !!!

* * * SAME DAY SHIPPING !!! * * *

I ship from Italy. That means NO Customs duties to all EU Countries!

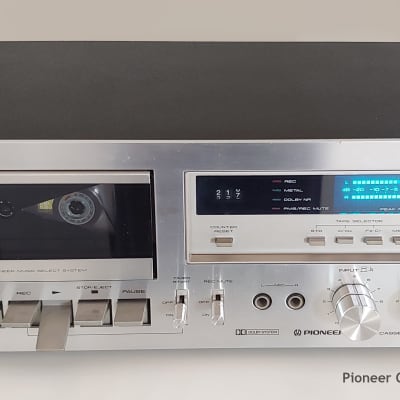

Very cool Japanese-made cassette deck from the late 1970s/early 1980s. Solid and very well preserved (and maintained) device characterised by excellent playback quality. It sports the PMS (Pioneer Music Select System) and an oversized motor for maximum stability; it clearly shows the quality achieved in this field by Pioneer at the threshold of 1980!

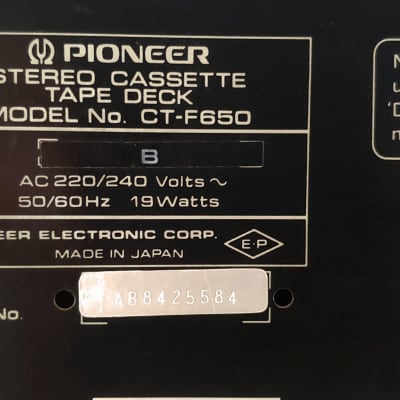

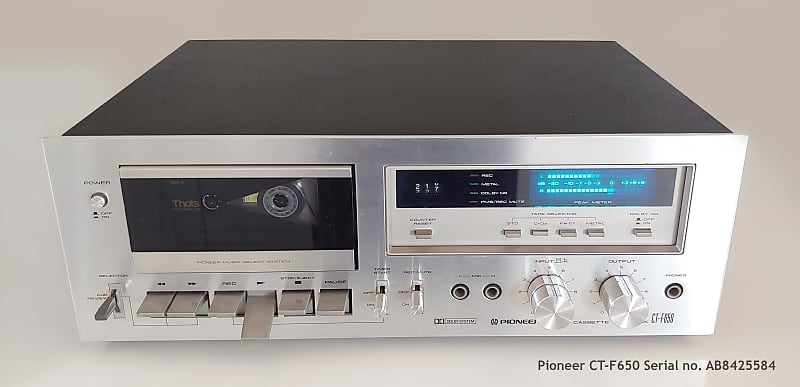

Serial number AB8425584.

SPECIFICATIONS

General:

• Manufacturer: Pioneer
• Model: CT-F 650

Type: Cassette Tape Deck

• Years of manufacture: 1979 - 1981
• Made in: Japan
• Color: Silver
• Power consumption: 20 Watt
• Dimensions (WxHxD): 420 x 150 x 335 mm
• Weight approx.: 7.1 kg
• Original price approx.: 698 DM

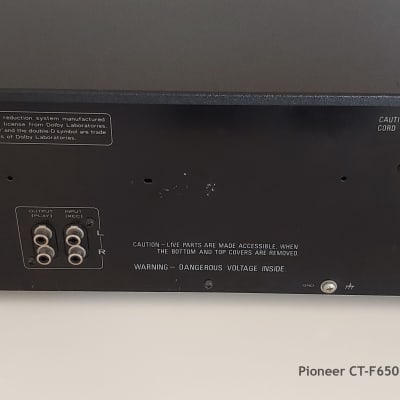

Connections:

• DIN socket Rec/ Play 12 mV
• Inputs:
• • 2x Microphone 0.3 mV/ 100 mV (30 kohm).

Line 60 mV

• Outputs:
• • Line 450 mV/ 640 mV/ 50 kohm
  • Headphones 63-90 mV/ 8 Ohm (6.3 mm jack)

Technical data

• Drive: 1 motor
• Synchronisation fluctuation: 0.05 % WRMS
• Tone heads: 2
• Distortion factor: 1,3 % (0 dB)
• Dolby NR: yes
• Tape type switching:
• Frequency response:
• • I: 25 - 14000 Hz

II: 25 - 16000 Hz III: 25 - 16000 Hz Metal: 25 - 17000 Hz

• Signal-to-noise ratio: Type I
• • Dolby off: 59 dB
  • Dolby on: 69 dB

Special features:

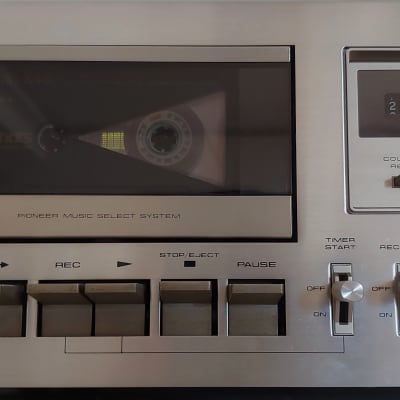

• PMS Pioneer Music Select System (track search)

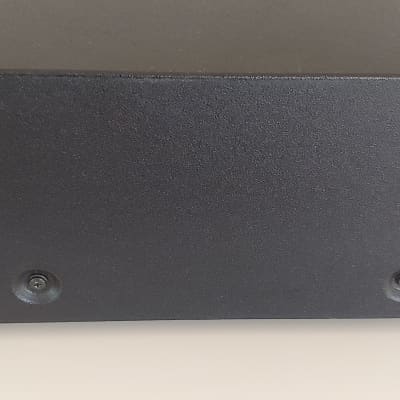

The photos attest to the device's excellent appearance: there are a few marks gathered over 40 years of age.

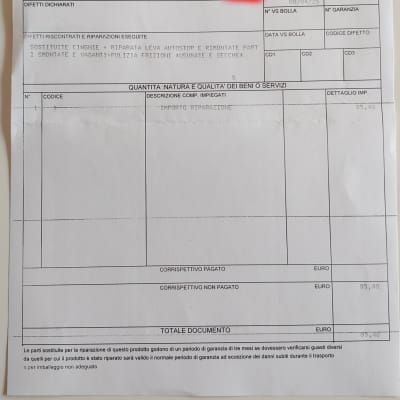

The functional condition is absolutely PERFECT! Before being offered for sale, this device received a complete service at the official Pioneer service centre in Rome, as attested by the invoice visible in the last photo: the belts and the pinch roller have been replaced, the clutches cleaned, the contacts, the sliding speed calibrated, lubricated, everything was checked, tested and tuned to perfection!!!

P E R F E C T working order and EXCELLENT cosmetic conditon.

Please check each photo before buying.

Info at +393313755120
