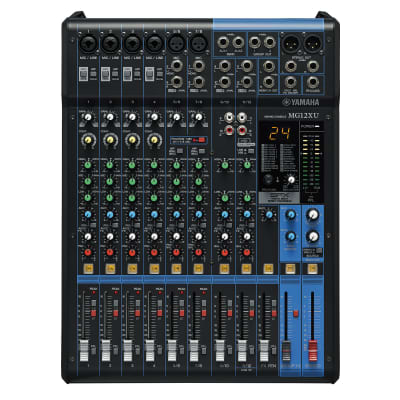

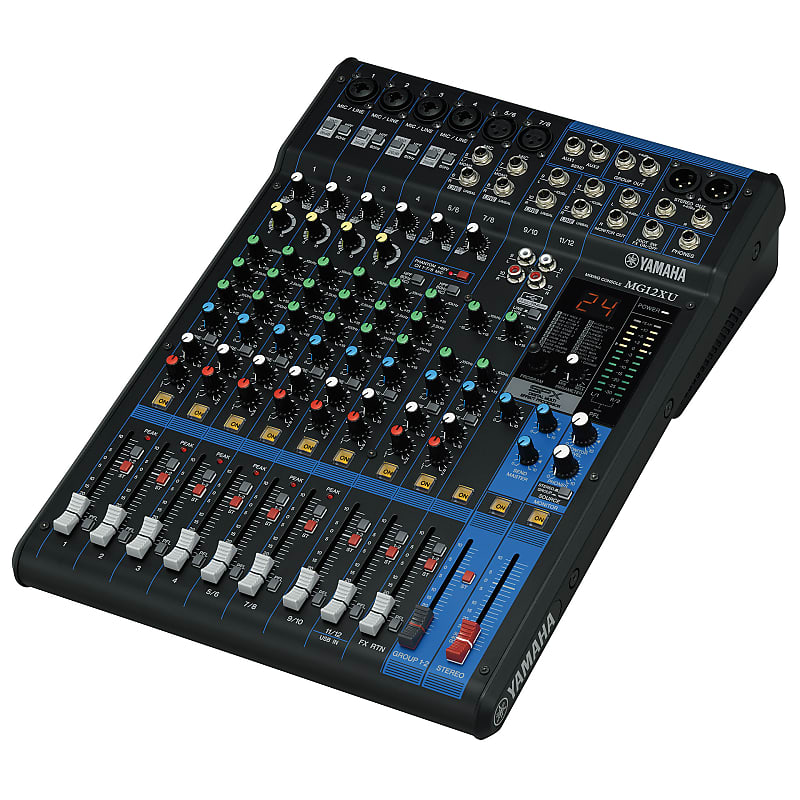

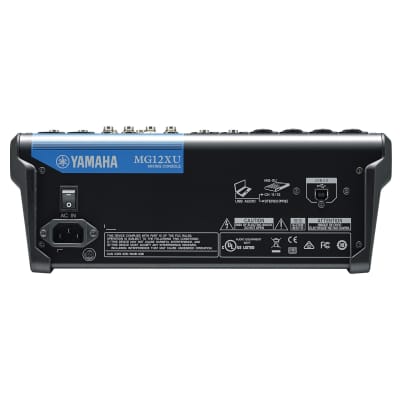

Yamaha MG-12XU

Yamaha stands for craftsmanship, innovation and superior processing for more than a century. This great passion for quality is reflected not only in many prestigious world-class instruments, but also in Yamaha's well respected pro audio products for the entertainment industry. The third generation of the proven MG mixer series is another perfect example of the combination of genuine workmanship with outstanding, innovative technology. Once again Yamaha has somewhat weakened the border between the compact and professional class. The MG series have had numerous features incorporated, which were originally developed for the highly professional high-end consoles. These include preamplifiers in beyond all doubt studio quality, outstanding digital processors and an extremely robust construction.

• Design: Desktop
• Simultaneously usable inputs: 8
• Mono channels: 4
• Stereo channels: 4
• Mic-In: 4x XLR/Jack-Combo (Channel 1-4), 2x XLR (Channel 5/6-7/8)
• Line in: 8x 6,3 mm Jack ( Channel 5/6-11/12), 2x Cinch-L/R (Channel 9/10-11-12)
• Bluetooth-Streaming: no
• Tape I/O: no
• Phantom Power: 48 V DC switchable per Mic Channel
• Low-Cut: switchable per Mic Channel
• Compressor: for Channels 1-4
• Channel EQ: 3-Band EQ (Channel 1-7/8), 2-Band EQ (Channel 9/10-11/12)
• Effects: Digital Effect (24 Presets)
• AUX outputs: 2
• AUX send/stereo return: 1x AUX Send (pre), 1x AUX-Send (post)
• Channel Fader: 60 mm fader
• Master-Fader: 60 mm fader
• Sub groups: 1x Stereo

Outputs: 2x XLR/6,3 mm Jack (L/R), 2x 6,3 mm Jack (Monitor Out), 2x 6,3 mm Jack (Group Out), 2x 6,3 mm Jack (AUX1/2-Send), 6,3 mm Jack (Headphone)

• Headphone Jack: 1x 6,3 mm Jack, Adjustable
• Other in/outputs: Foot switch
• Computer connection: via USB-B Port
• Audio Interface: 2x Input / 2x Output
• Special Features: Cubase AI DAW Software included as Download
• Rack mounting: Optional
• Power supply: 230 V AC, 50 Hz
• Dimensions: 308 x 118 x 422 mm
• Weight: 4,2 kg
• Includes: Mixer, Power Cable
