About this listing

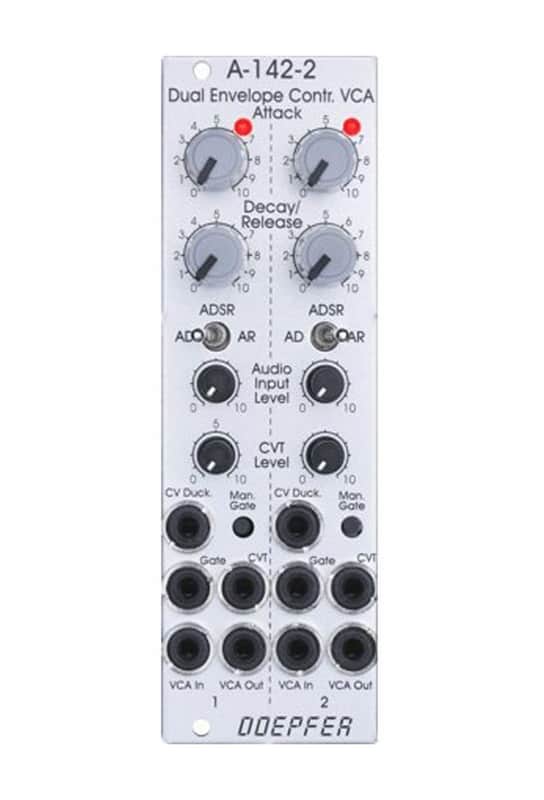

Module A-142-2 contains two envelope controlled VCAs behind a front panel with 8 HP only.Each of the two sub-units is the combination of a simple AD/ADSR/AR envelope generator and a VCA. The type of envelope can be selected by means of a toggle switch:AR: Attack-ReleaseADSR: Attack-Decay-Sustain-Release with the limitation that Decay Time = Release Time and fixed Sustain level (factory setting 50%)I/OLED control (envelope display)Attack (A), manual control, range about 500uS up to several minutesDecay/Release (D/R), manual control, range about 500uS up to several minutesMode switch (AD, AR, ADSR)Audio level control (small control without knob)CVT Input (CVT = CV Time)CV Ducking inputAttenuator for CVT (small control without knob)Gate Input (min. +5V, max. +12V)Manual Gate (momentary switch)Audio InputAudio OutputThe Envelope Output of version 1 has been cancelled for the benefit of the new CV Duck input. But there is an internal pin header available that has available the envelope signal (0...+10V) and the CV input of the VCA (0...+10V). Ex works the pins are shortened by a jumper but can be used for modifications (envelope output, VCA CV input).
Price€119
+ €5 Shipping
€1 shipping when combined
