Telecaster / Jazzmaster Wiring Harness
Custom Shop La Cabronita Especial / Boracha
TV Jones 2 Pickup Model

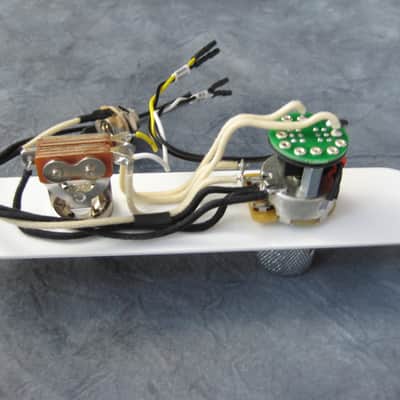

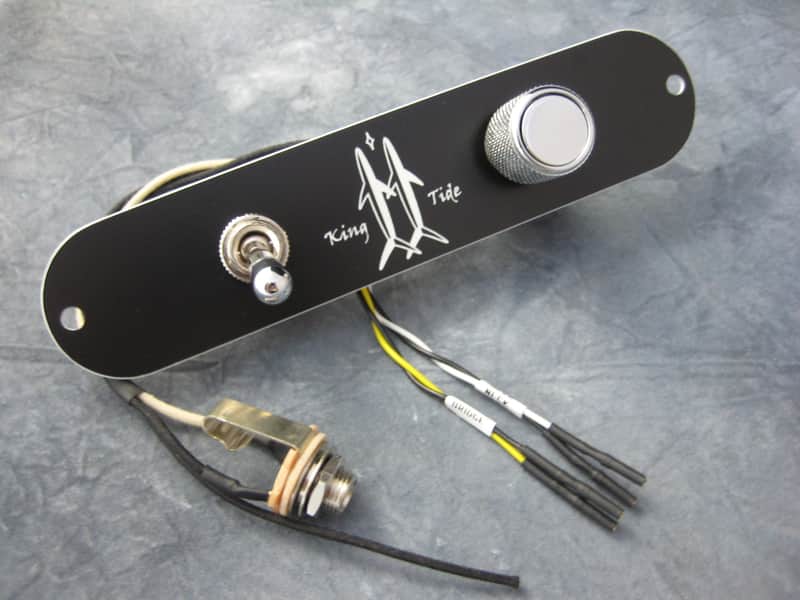

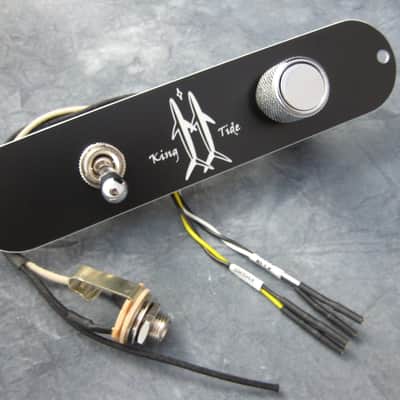

Often times the price of the Limited Series is out of our price range. But for some, the challenge in building a tribute can be just as rewarding. This custom crafted wiring harness is configured for the Fender Custom Shop Series La Cabronita Especial or Boracha. Built with all new Genuine quality parts, this model is for the aspiring builder wanting to upgrade or recreate the Limited Series. This harness is for the 2 TV Jones pickup model. Please take note that the S1 switch is the long shaft version which is suitable for the through body application. Components are mounted on a PVC plastic template,component spacing is 2 1/2" center to center with room for minor adjustment. Use this template to hold your old harness to keep the components and wiring intact.

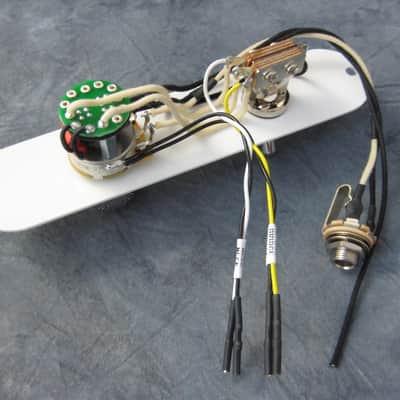

All of harnesses go through a final inspection and testing before they are made available. Test leads ( Light color + hot /Black - ground)are still attached to indicate the placement of your pickup leads. Wire color codes for pickups will vary with manufacturers. This is a great step in an upgrade of your guitar. For more of your needs, please check my other postings.
The S1 Switching that is exclusive to the Custom Shop Series allows you to switch from your normal pickup output to fixed value tone capacitors. This feature gives your guitar a diverse choice of tones to compliment your sound. YouTube has an excellent demo on the Custom Shop Series.
Disengaged- Normal Mode with no tone control
Engaged- Fixed Tone Preset for bridge/combined/neck
Parts List:
- Template - PVC plastic, component holder
- Fender CTS 500K S1 Potentiometer - 1/4" Long Shaft, .375 Threaded Collar with nut and dress washers
- Fender S1 Knob - Chrome
- Fender S1 Cap- Chrome
- Fender S1 Nylon Coupling
- 3 Way Toggle Switch with Metal Chrome Tip
- Sprague 192P Tone Capacitors - Pacer Foil/Film, .0047uF, .0068uF
- Switchcraft Output Jack - #11, 1/4" Mono
- Cloth covered wiring
- Extra ground wire ( for bridge or additional grounding )
