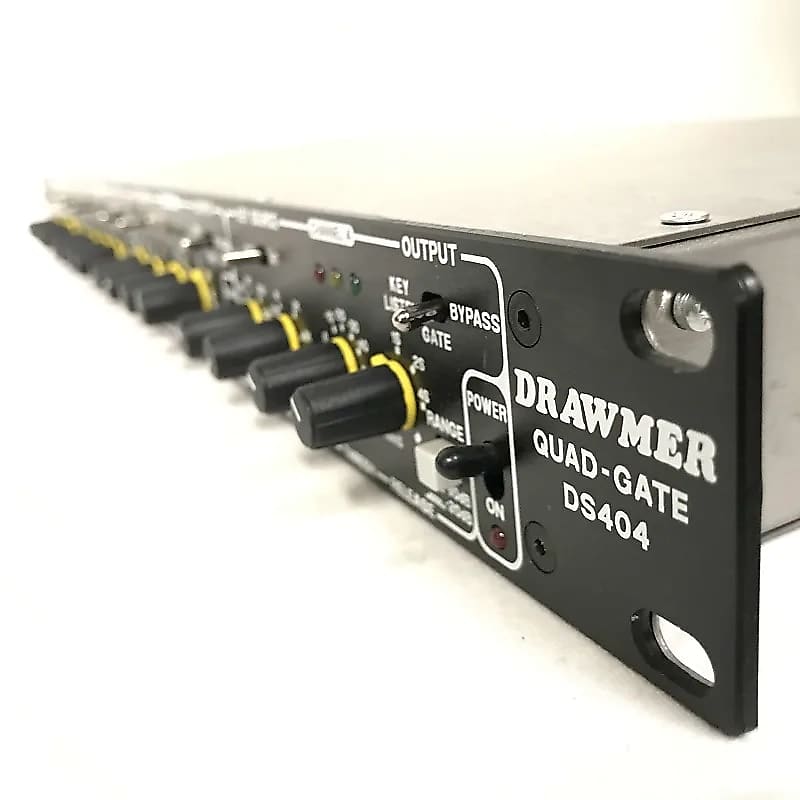

Drawmer DS404 Quad Noise Gate

The DS404 Quad Noise Gate has been designed to the highest specification to complement the DS201 Dual Noise Gate, acknowledged as the 'industry standard' gate throughout the world. Recognizing that there are many general gating applications which require equipment that is simple to operate and which occupies the minimum of rack space, Drawmer have designed the DS404 Quad Noise Gate utilizing new and unique 'Programme Adaptive' circuitry. This makes the DS404 ideally suited for use over a wide range of input signals, ranging from drums and other percussive instruments through to vocals, pianos and even complete mixes

Features:

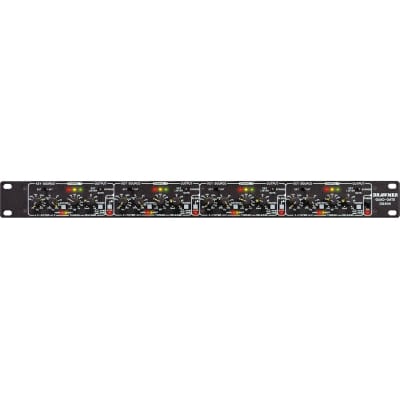

• 4 channel, 1 rack unit Noise Gate.
• Frequency Sensitive on each channel
• Hard/Soft Gating
• Threshold : A fully variable threshold control provides a range from +20dB to -70dB.
• Release Control : A fully variable release control is provided with times from 10 ms to 5 sec to ensure that essential envelope control is not sacrificed in exchange for an economy in rack space.
• Attenuation Range : The DS404 has switchable attenuation between 90dB and 20dB to allow for applications where a complete mute is not desired.
• Chain Linking : Operating the LINK control switches the channel on the right to SLAVE operation, where its gating mode, threshold and envelope characteristics are controlled by the MASTER (left) channel. Any adjacent three channels or two stereo pairs can be linked in this way for use in any conceivable situation where linking may be required.
• LED Displays : Drawmer's familiar tri-colour LED display is once again utilized as the optimum method for indicating the envelope status for each channel.

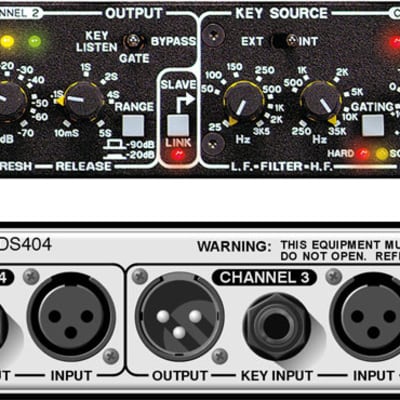

• Input/Output : The DS404 is provided with balanced inputs and outputs on XLR connections.
• Classic Drawmer Build Quality with Rugged Steel Chassis and Aluminium Front Panel
• POWER REQUIREMENTS              230V or 115V
• Depth   175mm
• Width   482mm
• Height  44mm
• Weight 3.7kg

Please contact me for exact shipping costs to your location! As most of the airway delivery companies have limits for parcels volumetric weight, please contact me for find out better and cheaper delivery way for you.
