Terrebonne, Canada
About this listing

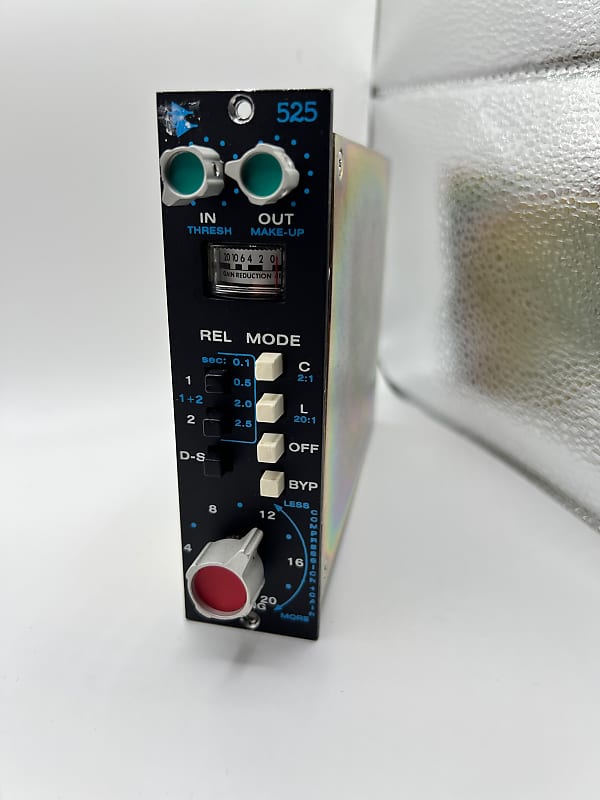

FeaturesExact reissue of API's original 525 from the early 70'sPeak detecting "feedback" compressor/limiterVariable Threshold and Output levelsUnique "Ceiling" control combines key functionsAnalog VU meter for monitoring gain reduction4 Switchable release modesDe-Ess functionTraditional API fully discrete circuit designActive Balanced Input/OutputHardwire bypassSpecificationsInput Impedance: > 30 K Ohms, BalancedOutput Impedance: 100 Ohms, Transformer coupled, BalancedOperating Levels: -15 dBu to +20 dBuMaximum Gain Reduction: 25 dBNoise: 98 dB below +10 dBu output, at 10 dB of CompressionHarmonic Distortion: 0.5% Max, 30 to 20 kHzAttack Time: 15 micro secondsRelease Times: .1, .5, 2.0, 2.5 secondsDe-essing: Inversion of the Voice Energy CurveSlopes: Compression, 2:1, Limit, 20:1Metering: Compression or Limiting-Illuminated Analog dB meter, shows Gain ReductionFrequency Response: ±.5 dB, 30 to 20 kHzPower Requirements: ±12/18 Volts/DC, @80 ma.Size: 1.5" X 5.25" X 7.5" DeepSize (Boxed for Shipping): 4.5" X 6.5" X 10"Actual Weight: 1.77 lbs.Shipping Weight: 2.17 lbs
Original PriceC$1,453.12
6% price drop
New PriceC$1,367.30
+ C$27.64 Shipping
